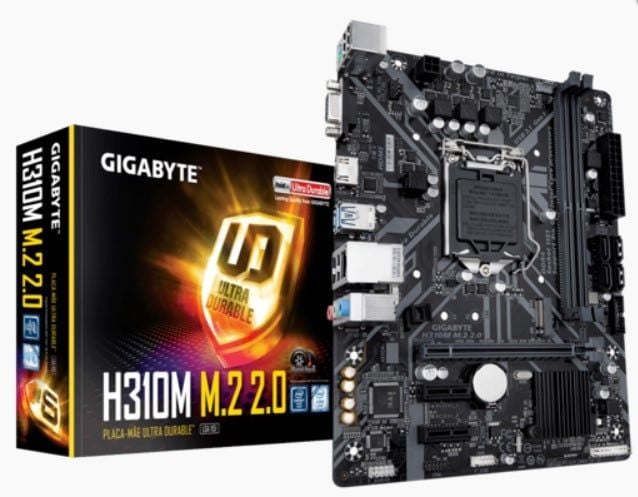

Mainboard Gigabyte H310M M.2 2.0 (Socket 1151)

Mainboard Gigabyte H310M M.2 2.0 (Socket 1151)

Thương hiệu: GIGABYTE

⭐ Giá Dealer, giá sĩ cho Đại Lý Kỹ thuật Liên hệ tại đây,
⭐ Cam kết giá tốt, Nếu bạn có giá tốt hơn vui lòng Liên hệ tại đây,
⭐ Thu cũ đổi mới, nâng cấp sản phẩm Liên hệ tại đây,

1,690,000₫

  • Thông tin sản phẩm

  • Bảo hành

Thông số chungĐiều khiển I/O : iTE® I/O Controller Chip

BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Đồ họa bộ xử lýIntegrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Ram hỗ trợ2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor.
(Please refer "Memory Support List" for more information.)
Kiểu Sockets SupportedSupport for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
ChipsetIntel® H310 Express Chipset
khe cắm mở rộng1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
LAN - WiFRealtek® GbE LAN chip (10/100/1000 Mbit)
Âm thanhRealtek® Audio codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Cổng I / O phía sau1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Cổng I/O ở trong1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
Kích thướcMicro ATX Form Factor; 22.6cm x 17.4cm

Bảo hành: _ Tháng
