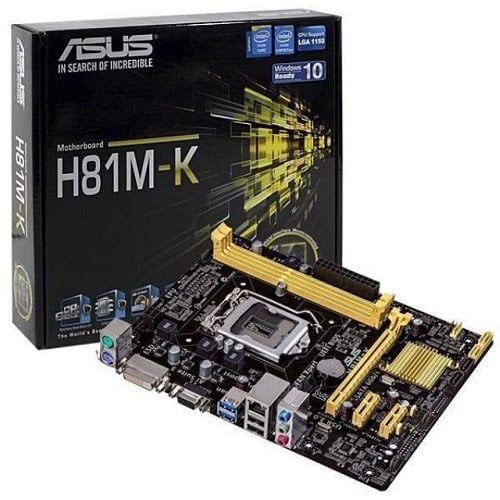

Mainboard ASUS H81M-K (Socket 1150)

CPU hỗ trợ

Intel® Socket 1150 for 4^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0

Chipset

Intel® H81

Bộ nhớ trong

2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

VGA

Integrated Graphics Processor
Multi-VGA output support : DVI/RGB ports
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Âm thanh

Mạng

Realtek® 8111G, 1 x Gigabit LAN Controller(s)

Khe mở rộng

1 x PCIe x16
2 x PCIe 2.0 x1

Chuẩn lưu trữ

Intel® H81 chipset :
2 x SATA 6Gb/s port(s), yellow
2 x SATA 3Gb/s port(s), dark brown
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *¹

Cổng giao tiếp trước và sau

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
2 x USB 2.0
3 x Audio jack(s)

Kích thước

uATX Form Factor
8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )
