RUIJIE RG-AP810-L Wi-Fi 6 AX1800 SME Access Point

Dimensions

(W × D × H)

220mm×220mm×49mm

Weight

Device：0.6kg

Mounting Kit：0.2kg

Installation

Ceiling / Wall

Anti-theft Lock

Support

Radio

Dual-radio dual-band:

Radio1：2.4GHz 11ax，2×2 MIMO

Radio2：5GHz 11ax，2×2 MIMO

Operating Band

Radio1:

802.11b/g/n/ax，2.4GHz～2.483GHz，HE40

Radio2：

802.11a/n/ac/ax，5.150GHz～5.350GHz，HE80

802.11a/n/ac，5.470GHz～5.725GHz，5.725GHz～5.850GHz，HE80

Note: vary depending on different countries

Max Throughput

Radio1：2.4GHz，0.574Gbps

Radio2：5GHz，1.201Gbps

Maximum throughput per AP:

2.4GHz+5GHz，1.775Gbps

Antenna Type

Integrated Omnidirectional

Antenna Gain

2.4GHz： 3dBi

5GHz： 3dBi

Transmit Power

20dBm

Note: vary depending on different countries

Adjustable Power

1dBm

Modulation

OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps

DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11Mbps

MIMO-OFDM：BPSK，QPSK，16QAM 、64QAM 、256QAM and1024QAM

OFDMA

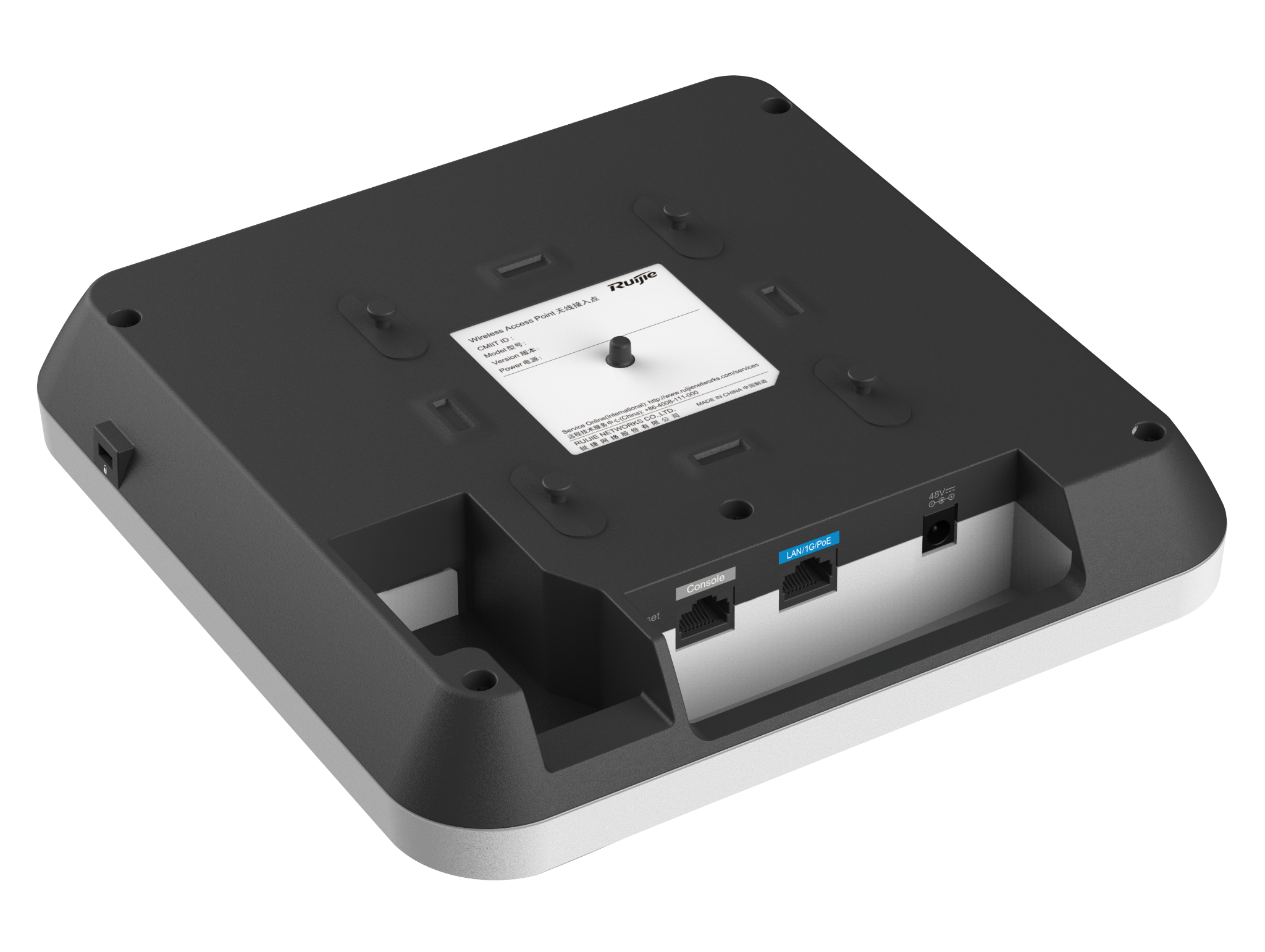

Interfaces

1 10/100/1000M BASE-T Ethernet Port, PoE In (Support IEEE 802.3af)

Full Spectrum Operation in IEEE 802.3af Mode

Bluetooth

BT 5.1

Management Port

1 RJ45 Console Port

LED Indicator

1 LED Indicator

Reset Button

Support

RG-AP810-L

Power Supply

Local Power Supply (DC 48V/0.6A)

Note: DC power adapters should be purchased separately from third-party vendors if needed.

PoE（IEEE 802.3af Standard）- Full Spectrum Operation

Power Consumption

12.95W

Temperature

Operating Temperature: -10°C～50°C
Storage Temperature: -40°C～70°C

Humidity

Operating Humidity: 5%~95% (non-condensing)

Storage Temperature: 5%~95% (non-condensing)

IP Rating

IP41

Safety Standard

GB 4943.1-2011，IEC 62368-1

EMC Standard

EN 300386,GB/T 19286-2015,GB/T 17618-2015

WLAN

Maximum Clients: 512

Recommended Client: 120

SSID Hiding: Support

5G Priority (Band Steering): Support

Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID: Support

Remote Intelligent Perception Technology (RIPT): Support

Intelligent Device Recognition Technology: Support

Intelligent Load Balancing Based on the Number of Users or Traffic: Support

STA Limit Control: SSID/Radio based

Bandwidth Control: STA/SSID/AP-based

Security

Support PSK and Web authentication

Data Encryption: WPA（TKIP）、WPA-PSK、WPA2（AES）、WPA3、WEP（64/128bits）

PPSK authentication: Support

802.1X authentication: Support

PEAP authentication: Support

Data Frame Filtering: Allow list, Static/Dynamic Block list

User Isolation: Support

Rogue AP Detection and Countermeasure: Support

Dynamic ACL Assignment: Support

RADIUS: Support

CPU Protection Policy (CPP) Support

Network Foundation Protection Policy (NFPP): Support

IP

IPv4: Support Static and DHCP IP Address

Support Multicast to Unicast Conversion

DHCP Service: Support DHCP Snooping, Option 82, Server, Client

Operation & Management

Support Wireless LAN Controllers:

Ruijie RG-WS Series Wireless Controller

Ruijie Cloud (Public Cloud)

Ruijie Private Cloud

Management Protocol: Telnet, SSH, TFTP, FTP, Web

Wireless Intelligent AI Optimization Service (WIS): Support

SNMP: Support V1, V2c, V3

Syslog / Debug: Support

FAT/FIT/Cloud Managed Mode Firmware: Support FAT (Standalone) or FIT (WS Controller) or Cloud Managed (Ruijie Public/Private Cloud) Management
