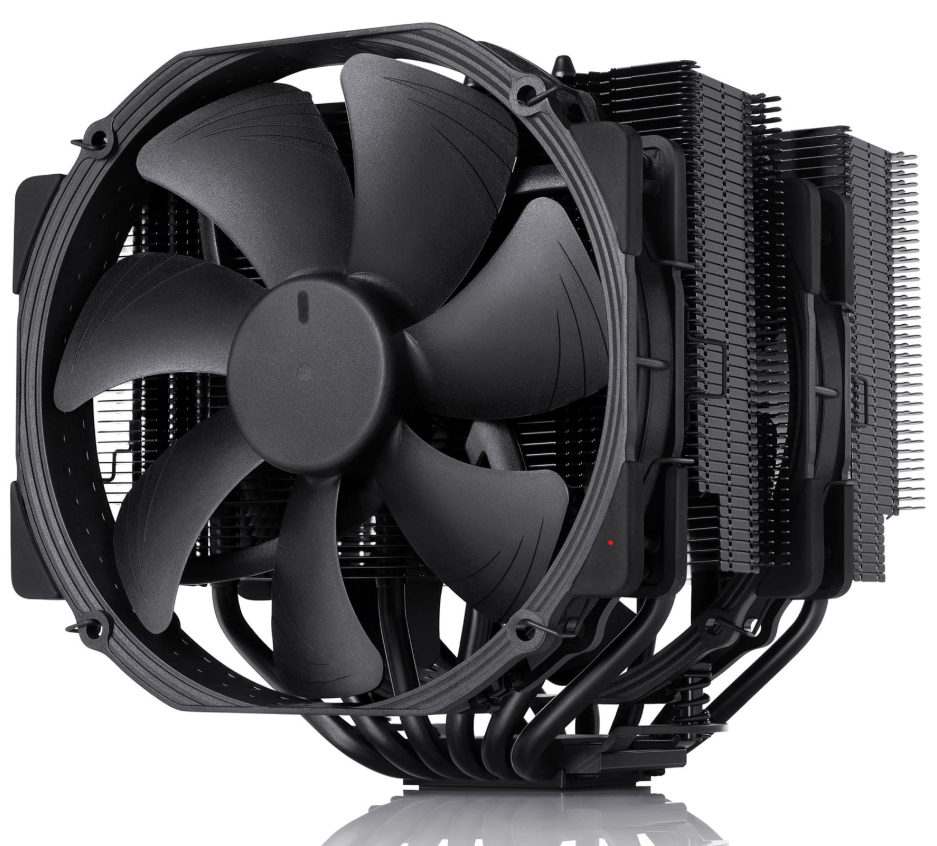

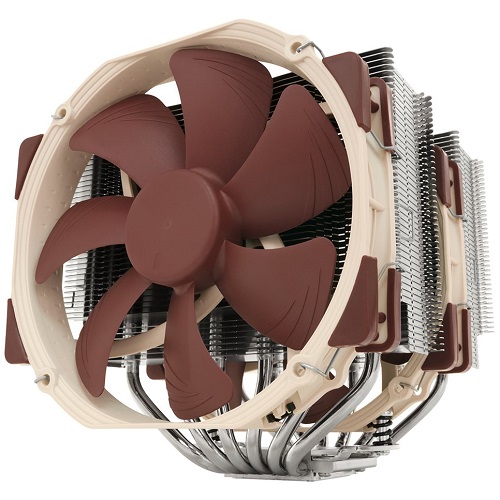

NOCTUA NH-D15

Cooler Specification

Socket compatibility

Intel LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA1700 (included since Q4 2021, older coolers require NM-i17xx-MP83), LGA2066, LGA2011-0 & LGA2011-3 (Square ILM) & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4 (since 2019)

Height (without fan)

160 mm

Width (without fan)

150 mm

Depth (without fan)

135 mm

Weight (without fan)

1000 g

Height (with fan)

165 mm

Width (with fan)

150 mm

Depth (with fan)

161 mm

Weight (with fan)

1320 g

Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

NSPR

183

Max. TDP

see NSPR

Fan compatibility

140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

Scope of delivery

• 2x NF-A15 PWM premium fan
• 2x Low-Noise Adaptor (L.N.A.)
• Y-cable
• NT-H1 high-grade thermal compound
• SecuFirm2™ Mounting Kit
• Noctua Metal Case-Badge

FAN Specification

Model

2x Noctua NF-A15 PWM

Bearing

SSO2

Max. rotational speed (+/- 10%)

1500 RPM

Max. rotational speed with L.N.A. (+/- 10%)

1200 RPM

Min. rotational speed (PWM, +/-20%)

300 RPM

Max. airflow

140,2 m³/h

Max. airflow with L.N.A.

115,5 m³/h

Max. acoustical noise

24,6 dB(A)

Max. acoustical noise with L.N.A.

19,2 dB(A)

Voltage range

12 V

MTTF

> 150.000 h
