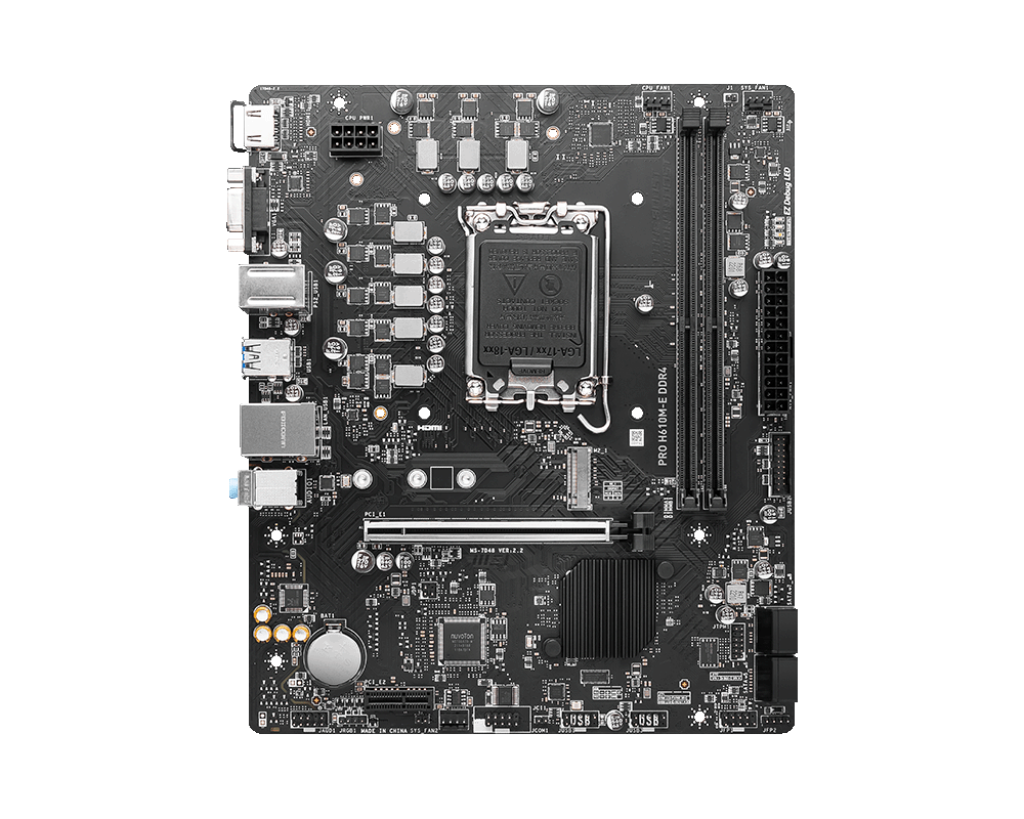

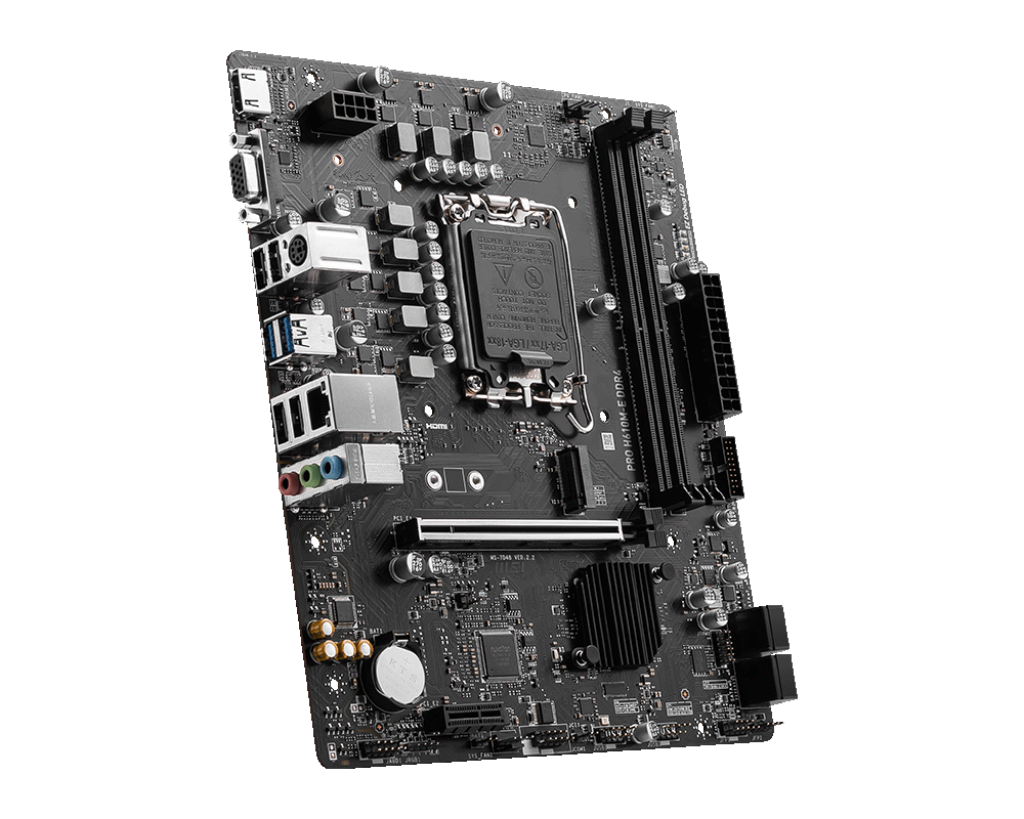

Mainboard MSI PRO H610M-E DDR4 (Socket 1700)

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

Pro H610M-E DDR4

CPU hỗ trợ

Intel

Chipset

Intel H610 Chipset

RAM hỗ trợ

2x DDR4 memory slots, support up to 64GB

Khe cắm mở rộng

• 1x PCIe x16 slot (From CPU)
  • Supports up to PCIe 4.0 x16
• 1x PCIe x1 slot (From H610 chipset)
  • Supports PCIe 3.0 x1

Ổ cứng hỗ trợ

• 4x SATA 6Gb/s ports (From H610 chipset)

• 1x M.2 slot (Key M) (from CPU)
  • Supports up to PCIe 3.0 x4
  • Supports 2242/ 2260/ 2280 storage devices

Cổng kết nối (Internal)

• 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
  • Supports additional 2 USB 3.2 Gen 1 5Gbps ports
• 2x USB 2.0 Type-A connectors (From Hub-GL850G)
  • Supports additional 4 USB 2.0 ports

FAN CONNECTORS

• 1x 4-pin CPU fan connector
• 2x 4-pin system fan connectors

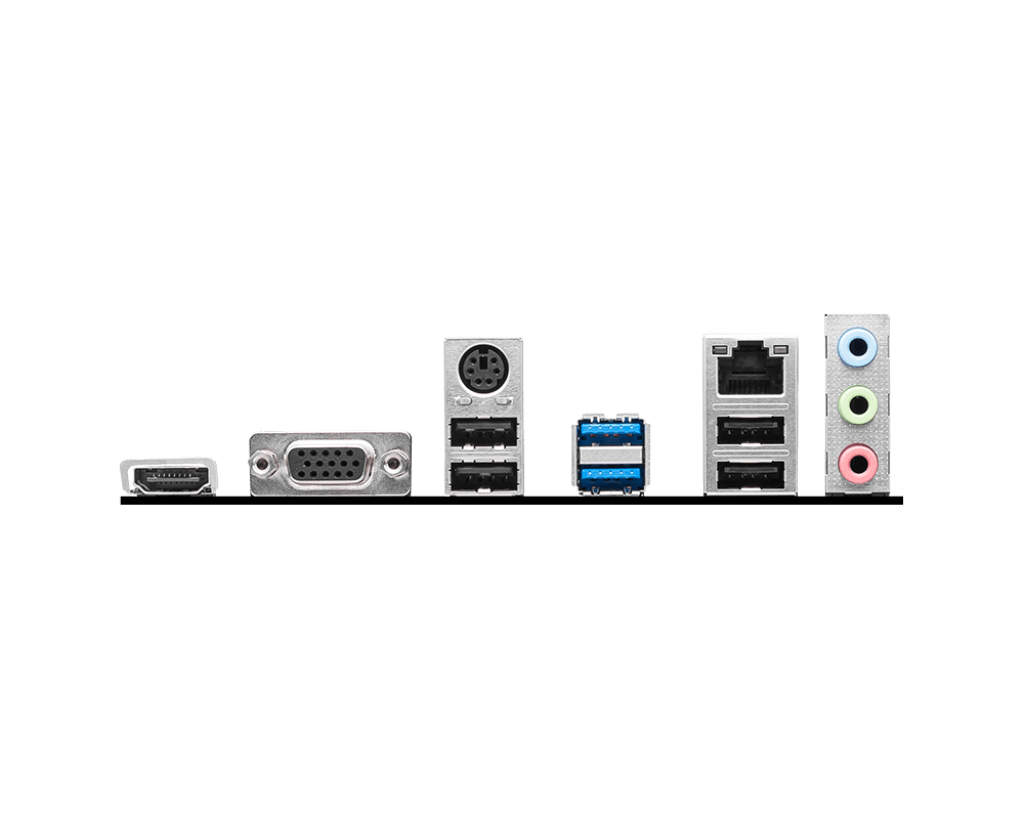

Cổng kết nối (Back Panel)

1. HDMI
2. VGA
3. Keyboard / Mouse
4. USB 3.2 Gen 1 5Gbps Type-A
5. LAN port
6. Audio connector
7. USB 2.0

LAN / Wireless

• 1x Realtek^® RTL8111H 1Gbps LAN controller

Kích cỡ

• M-ATX Form Factor
• 9.3 in. x 7.9 in. (23.6 cm x 20 cm
