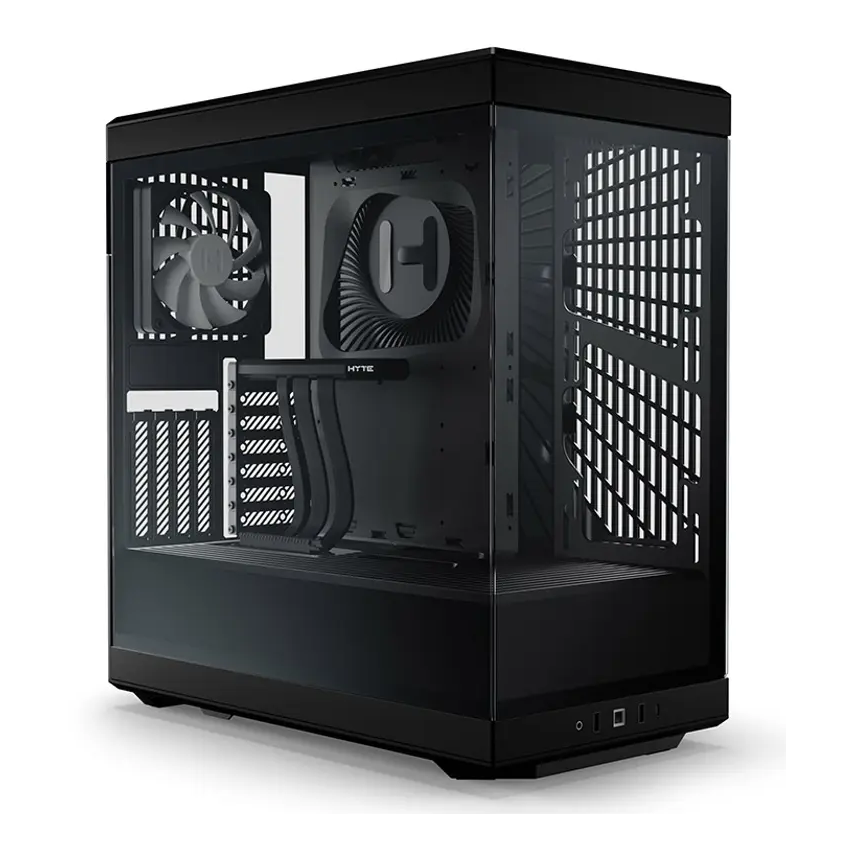

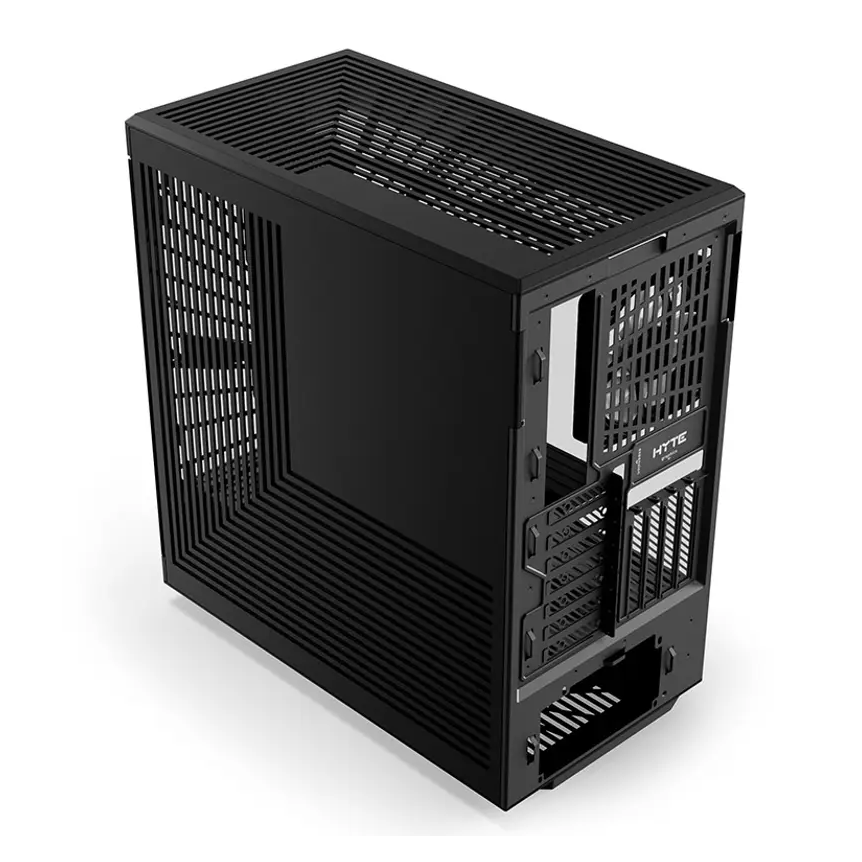

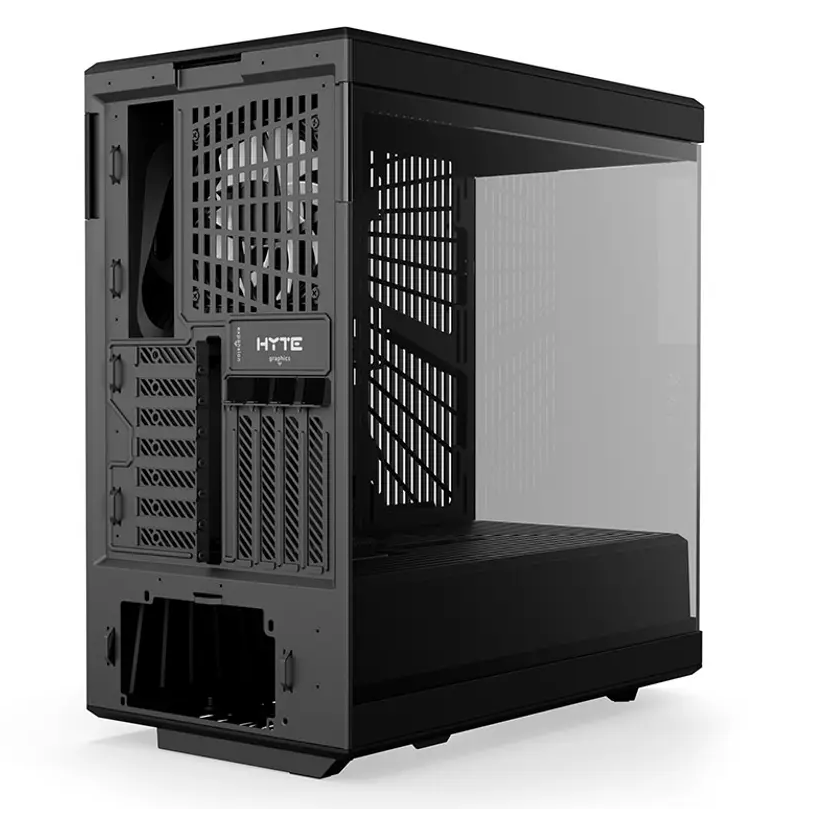

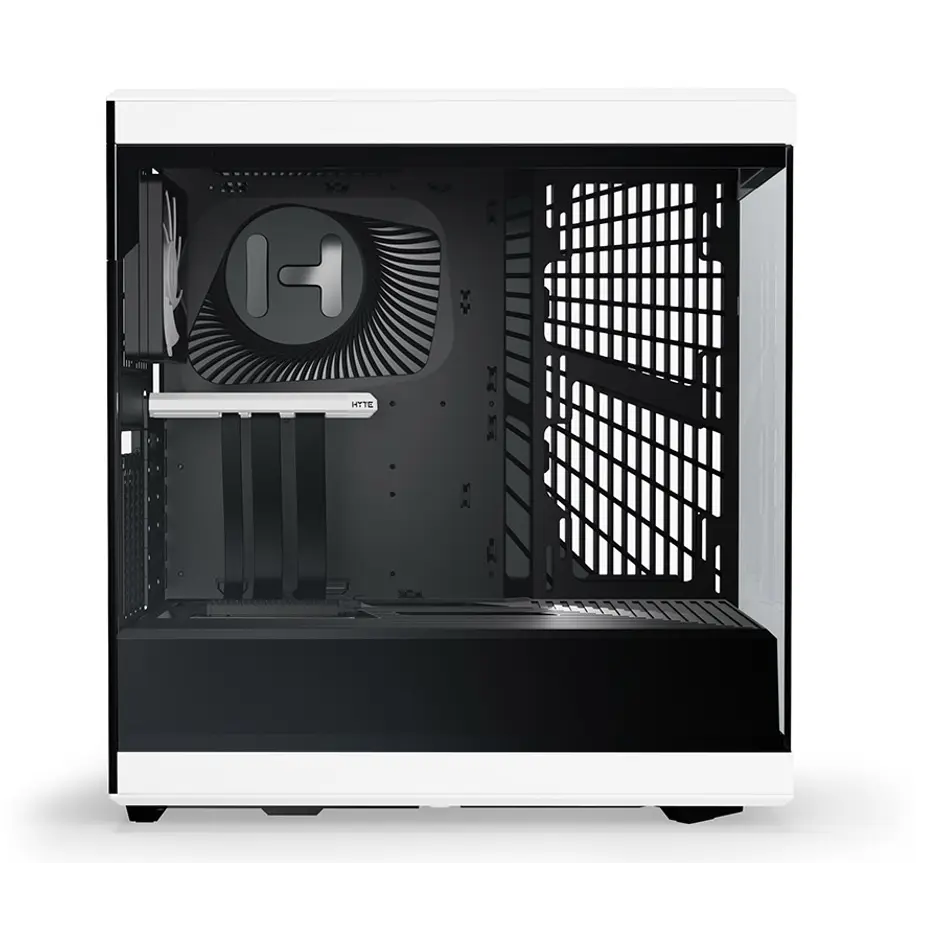

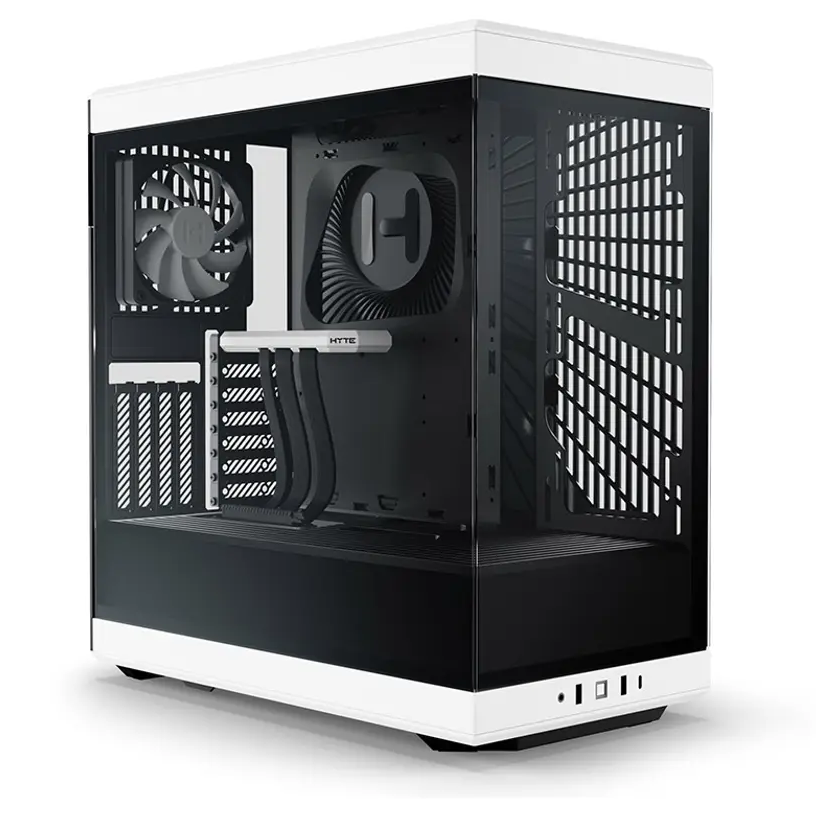

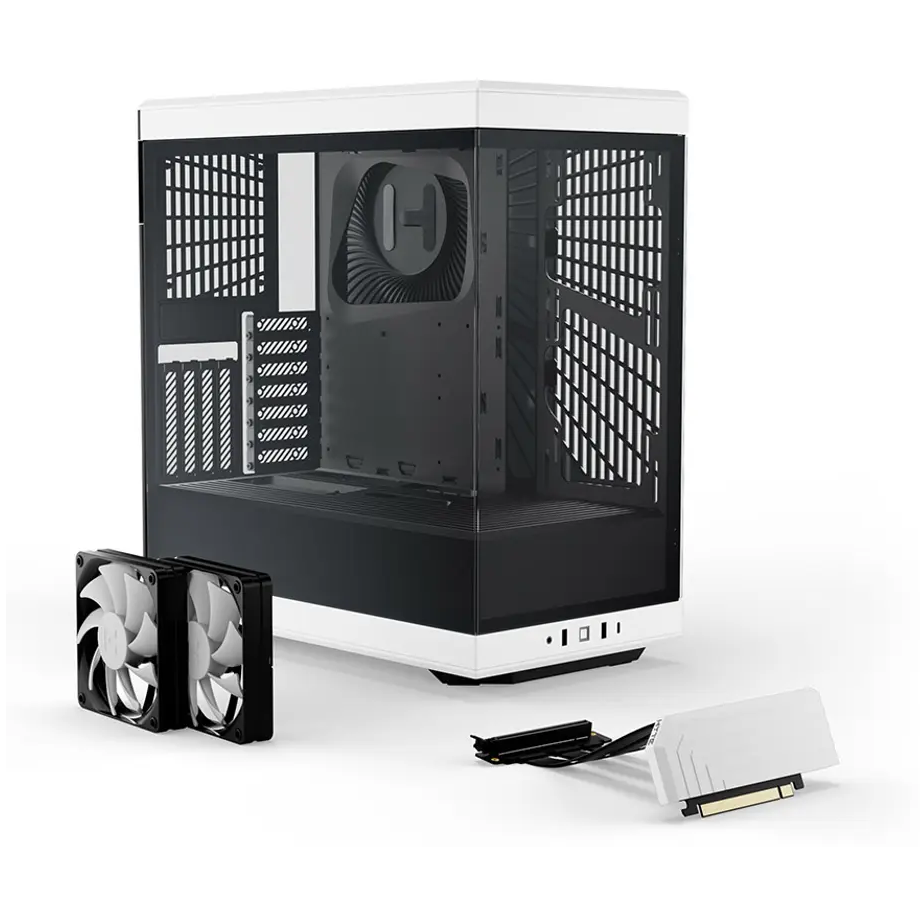

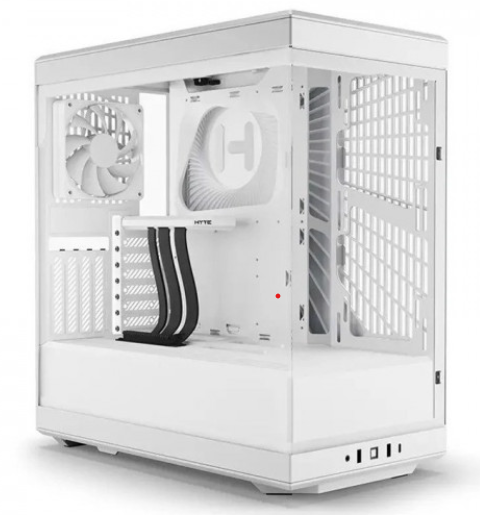

HYTE Y40 Mid Tower (ATX)

Tech Specs

Type

ATX Mid Tower

Volume

50L

Case Dimensions

439mm x 240mm x 472mm​

Motherboard Support​

ITX, mATX, ATX​

Power Supply

ATX up to 224mm in length​

Video Card Max Dimensions​

422mm length, 94mm height (80mm height or less recommended for best cooling)​

Fan Support​ (Side)

2x 120mm/140mm​

Fan Support (Top)

Top: 3x 120mm​

Fan Support (Rear)

1x 120mm (1x 120mm, 1300 rpm included)​

Fan Support (Bottom)

1x 120mm/140mm (1x 120mm, 1300 rpm included)​

Radiator Support​ (Side)

120, 140, 240, 280mm up to 120mm thick​

Radiator Support​ (Top)

120, 240, 360mm​

Radiator Support​ (Rear)

120mm​

CPU Cooler Height​

183mm

Storage

1 x 3.5" HDD or 2 x 2.5" SSD​

Expansion Slots​

4 + 6 half-height​

Interfaces

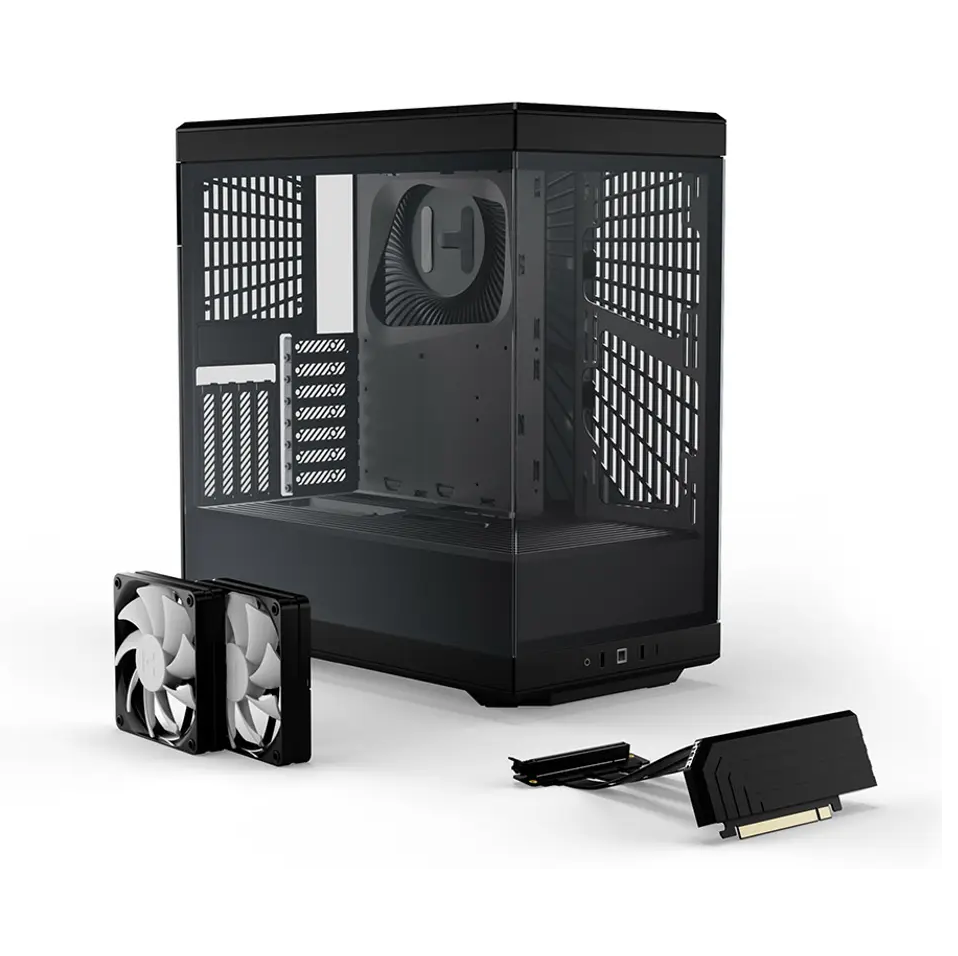

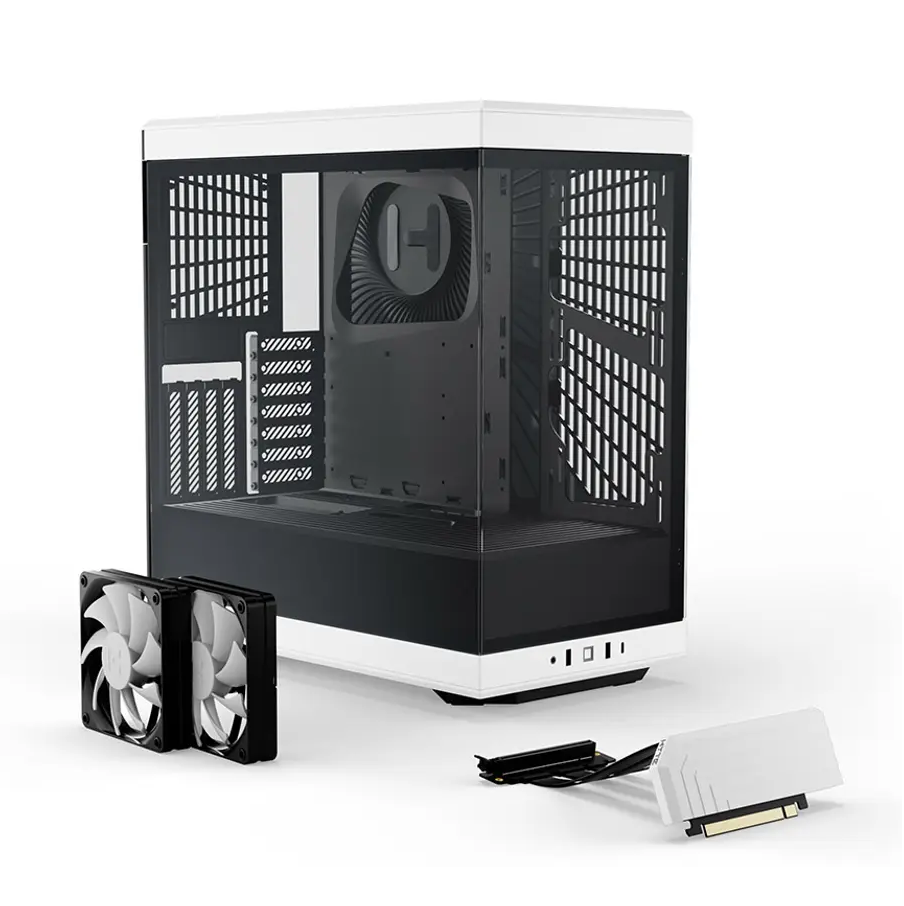

PCI Express Riser Cable​

4.0 x 16 (included)​

Front USB 3.0​

2

Front USB 3.2 Type-C​

1

Audio/Mic Jack​

1

Dust Filters​

Top, Side, Bottom (x2)​

RGB Lighting​

None
