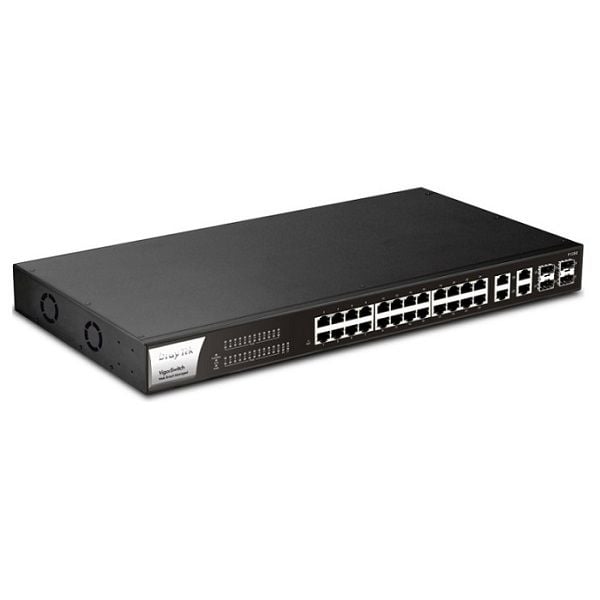

DRAYTEK VigorSwitch P1282

24-Port Gigabit PoE Smart Switch DrayTek VigorSwitch P1282

Physical Interfaces

- 24 RJ-45 Ethernet Ports – 10/100/1000Mbps

- Factory Reset Button

- 4 Selectable Ports (Nos. 25-28), use as either:

o 10/100/1000BaseT (Gigabit) Ethernet

o or SFP (1000M) Ports for Uplink / Fibre

PoE

- 24 Power over Ethernet LAN ports - PoE PSE Mode A

- IEEE 802.3af PoE & 802.3at PoE+ (High Power) compliant

- 400 Watts Total Power Budget for PoE

- Up to 30 watts per port

- Auto Detection of Powered Device (PD) and Consumption Levels

- Per Port PoE Status LED Indicators

- Alert LED and Mail Alert for high PoE Usage

- Port Power Consumption Monitoring via Web Interface & CLI

- Circuit Protection to Prevent Power Interference between Ports

- PoE PD Monitoring & Maintenance Features (per port)

o Scheduling

o PoE PD Priority

o Restart PoE PD if not responding to ping

o Restart PoE IP Camera if not providing camera output

VLAN

- 802.1q Tag-based VLAN

- Port-based & MAC-based VLANs

- Up to 255 VLANs (out of 4096 VLAN IDs)

- Voice VLAN (OUI Mode)

- Surveillance VLAN (OUI Mode)

- Management VLAN

- Port Isolation (Protected Ports)

QoS

- Support 8 priority queues

- Port-Based rate control (Ingress & Egress)

- Priority queue schedule (WRR or Strict Priority)

- Rate Limit

- Class of Service

o 802.1p CoS

o DSCP

o CoS-DSCP

o IP Precedence ToS

Network Security

- IP Source Guard with ARP inspection

- IP Conflict Prevention

- Storm Control (Broadcast, Unknown Multicast, Unknown Unicast)

- DoS Attack protection

- Protected Port / Port Isolation

- Static Port Security

- Loop Detection & Prevention

- Access Control Lists (ACL)

o Up to 512 ACL Entries

o Source and destination MAC

o VLAN ID

o IPv4/v6 address

o Protocol

o TCP/UDP port

Spanning Tree

- Spanning Tree Protocol (STP)

- Rapid Spanning Tree Protocol (RSTP)

Link Aggregation

- Combine multiple ports to increase bandwidth

- 8 Aggregation Groups

- Up to 8 ports in each group

- LACP or Static setup

- Supports traffic load balancing

Networking Performance

- Switching Capacity: 56Gbps

- Forwarding Rate: 41.7Mpps (64 bytes)

- Jumbo Frames up to 9KB

- Packet Buffer size: 4.1Mbit

- MAC Address Table: 8000 entries

Multicast

- Up to 256 multicast groups

- Multicast Group Filtering / Throttling

- IGMP Snooping V2/V3 (BISS)

- IGMP V2/V3 Querier

- Multicast VLAN registration

ONVIF Surveillance Management

- Discovery of ONVIF-compliant IP Cameras

- Surveillance Topology

- Real-Time Video Streaming

- ONVIF Device Maintenance

o Device Information

o Network Settings Configuration

o Time Settings

o Reboot

o Reset to Factory Default Settings

o Ping Check with Mail Alert on disconnection

Management

- Central Management

o VigorACS

o VigorConnect

o Vigor Router Switch Management (requires router firmware support)

- IPv4 & IPv6 Dual-Stack

- Web User Interface

- Firmware Upgrade/Backup

- Configuration Backup/Restore

- Factory Default

- System Reboot

- 2-level Admin Privileges

- Multiple Admin Accounts

- Command Line Interface (CLI) via SSH/Telnet

- OpenVPN Client with Certificate-based auth

- SNMP v1, v2c, v3 (with Generic Traps)

- SNTP (Simple Network Time Protocol)

- LLDP(802.1ab) + MED

Diagnostics

- Port Status & Usage display

- CPU/RAM Usage display

- MAC Address Table

- Device Check

- Syslog

- Mail Alert

o Port Status

o Port Speed Change

o System Restart

o Device Check

o IP Conflict

o ONVIF IP Camera Snapshot

- Port Mirroring

- Ping Diagnostics

- Port-based Cable Test

IPv4 Features

- DHCP Client

- DNS Client

IPv6 Features

- Auto Configuration

- Static IPv6 Address & Prefix Length

- Static IPv6 Default Gateway

- IPv6 Neighbour Discovery (ND)

- IPv6 Duplicate Address Detection

- ICMPv6

- DHCPv6 Client

Operating Requirements

- Power Input Requirements: 100-240VAC

- Power supply: Internal

- Maximum Input Power Consumption: 450 Watts

- Cooling: Dual-Fan cooled

- Operating Temperature: 0°C to 50°C

- Storage Temperature: -20°C to 70°C

- Operating Humidity: 10% to 90% RH (non-condensing)

Physical

- Dimensions: 441 x 281 x 44 mm (W x D x H)

- Rack mountable: 1U

- Weight: 4.3 Kg
