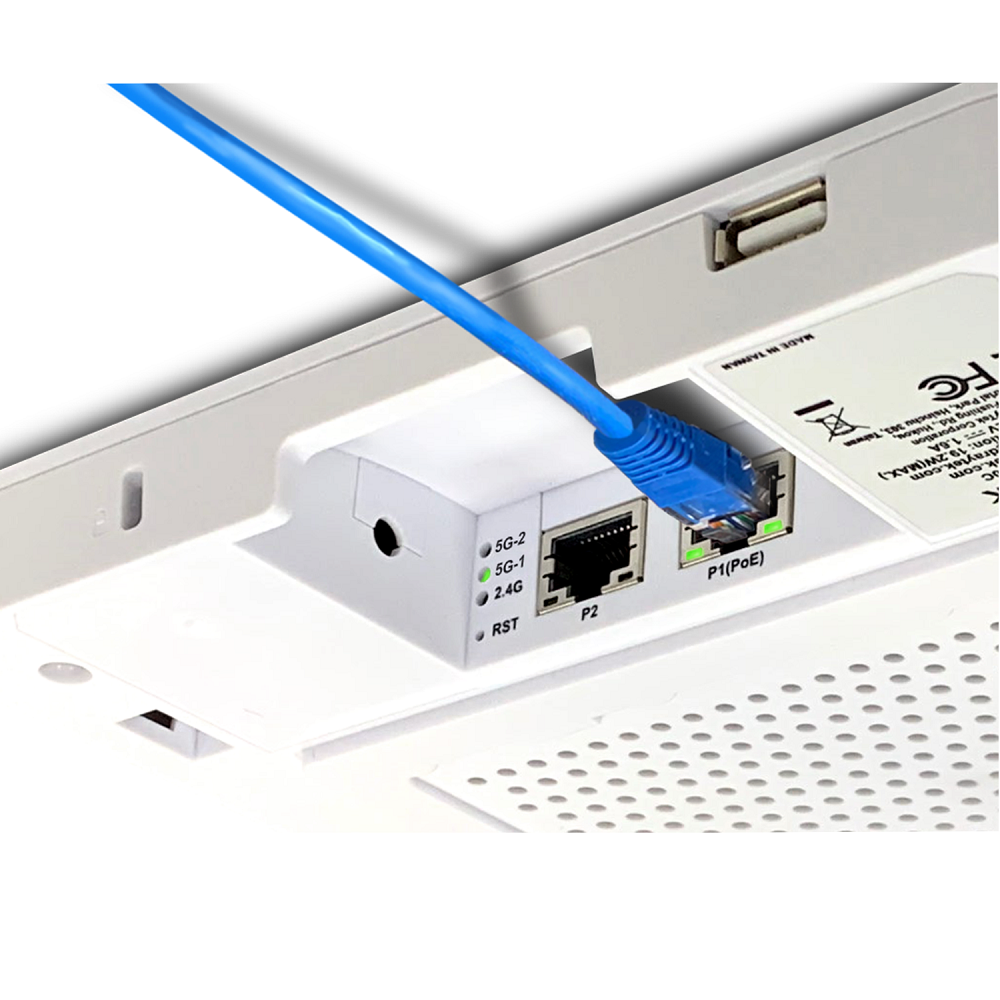

Interface | |
| LAN Port | 2x 10/100/1000M Base-T, RJ-45 (1x PoE) |
| PoE | 802.3at (in) |
| USB Port | 1x USB2.0 Type A |
| Antenna | 2x Internal PiFA 2.4G Antenna, 4x Internal PiFA 5G Antenna Gain: 2 dBi for 5GHz, 1 dBi for 2.4GHz |
| Indicator | 4x LED 1x Internal Buzzer |
| Button | 1x Factory Reset Button |
| DC Power Jack | 1 |
| Security Lock | 1 |
Capacity | |
| 2.4GHz Link Rate | Up to 400 Mbps |
| 5GHz Link Rate | Up to 867 Mbps |
| 5GHz-2 Peak Speed | 867 Mbps |
| Max. Number of Concurrent Active Clients | 384 (128 per radio band) |
WLAN | |
| 2.4GHz Standard | IEEE 802.11b/g/n 2x2 MIMO |
| 5GHz Standard | IEEE 802.11a/n/ac Wave 2 2x2 MU-MIMO |
| Operating Mode | AP, Mesh Root, Mesh Node, Range Extender |
| Roaming | AP-Assisted Roaming, PMK-Caching, Pre-Authentication |
| AirTime Fairness | |
| Band Steering | |
| Auto Channel Selection | |
| Max. Number of SSID | 12 (4 per radio band) |
| WDS | |
| Bandwidth Limit per Station | |
| Client Numer Limit | Per radio, Per SSID |
| Connection Time Control | |
| WMM | |
| IGMP Snooping | |
Security | |
| Security Mode | WPA3, WPA3/WPA2, WPA2, WPA2/WPA, OWE, WPA, WEP, None |
| Authentication | Personal, Enterprise |
| WPS | PIN, PBC |
| Hidden SSIDs | |
| MAC Address Filter | Up to 384 entries |
| Wireless Client Isolation | |
| Mobile Device Management | |
Application | |
| Built-in RADIUS Server | |
| RADIUS Proxy | PEAP, EAP-TLS |
| DHCP | DHCP Server, DHCP, Client, DHCP Relay Agent |
| Static IP | |
| MAC Clone | |
| 802.1q VLAN | |
| iOS Keep Alive | |
| Schedule | Auto-Reboot, Wi-Fi Up/Down, LED On/Off, Sound Buzzer |
Management | |
| Local Service | HTTP, HTTPS, Telnet |
| Configuration | Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root |
| Firmware Upgrade | HTTP, TFTP, TR-069 |
| Tools | Speed Test, AP Discovery, Statistics, Interference Monitor, Where Am I |
| Configuration Backup and Restore | |
| Syslog | |
| Mail Alert | |
| SNMP | v1, v2c, v3 |
| Managed by VigorConnect | |
| Managed by VigorACS | |
Physical | |
| Environment | Indoor |
| Mounting | Ceiling Mount, Wall Mount |
| Power Input | 12VDC, 2A |
| PoE Power Input | 48-56V, 0.4A |
| Max. Power Consumption | 19.2 watts |
| Dimension | 176 mm x 176 mm x 30 mm |
| Weight | 460 g |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity | 10 to 90% non-condensing |
| Certificate |   |
