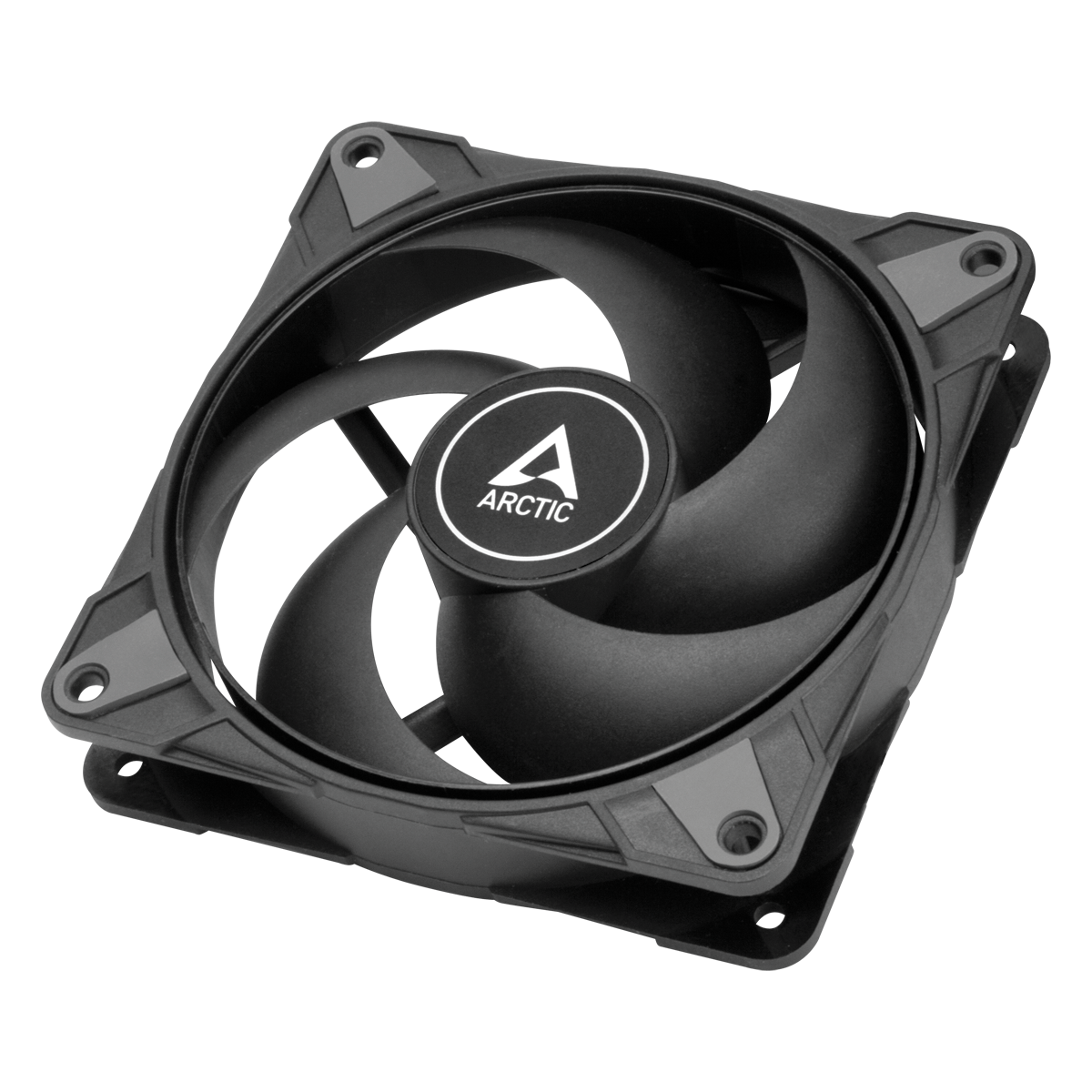

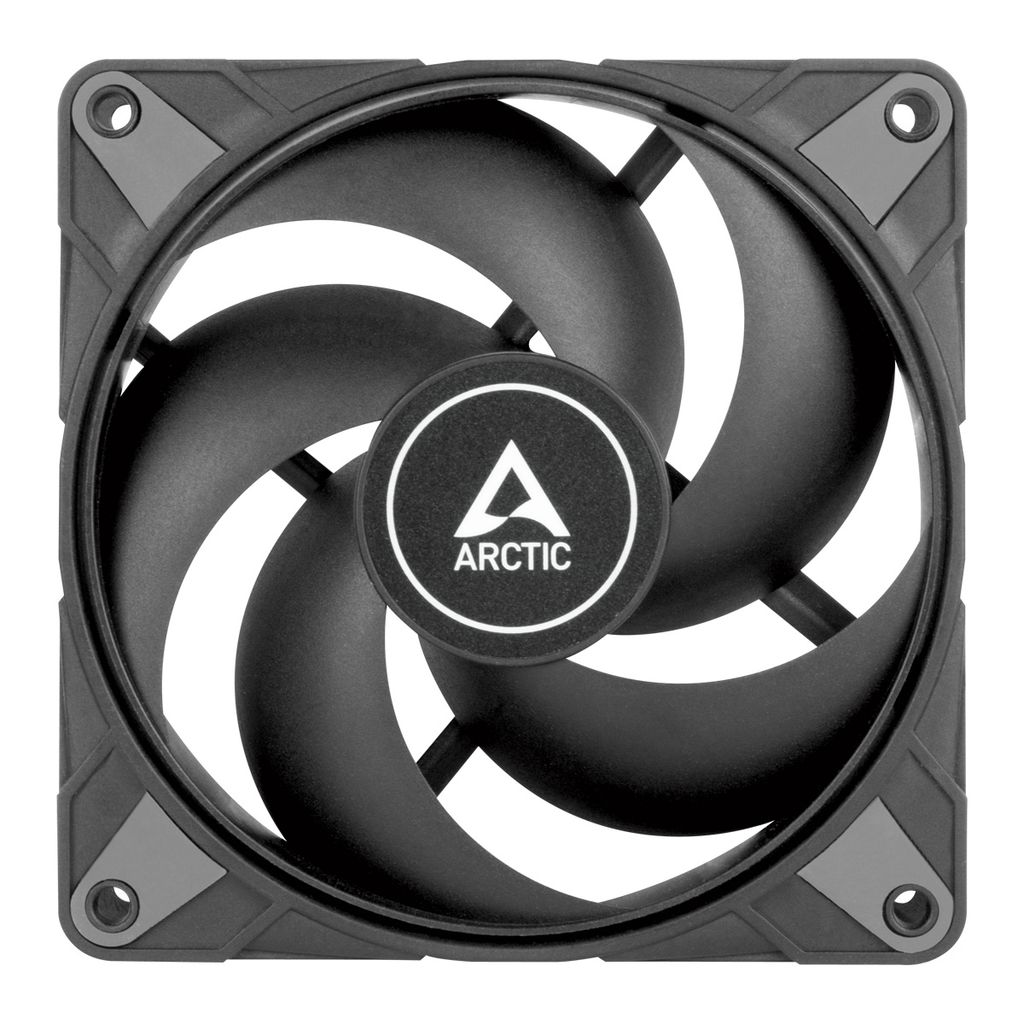

ARCTIC P12 MAX 120MM PWM

Fan Speed:

200–3300 rpm PWM Controlled (0 rpm below 5% PWM)

Airflow:

81.04 cfm | 137.69 m³/h

Static Pressure:

4.35 mmH₂O

Noise Level:

0.6 Sone

Operating Ambient Temperature:

0—40 °C

MTTF:

> 500.000 Hours

Warranty:

6 Years

Fan

Fan Frame:

Standard

Control Type:

Pulse Width Modulation — PWM

Connector:

4-Pin Connector

Fan Bearing:

Dual Ball Bearing

Electric Characteristics

Typical Voltage:

12 V DC

Starting Voltage:

3.9 V

Current | Voltage:

0.29 A | 12 V DC

Cable Length:

400 mm

Size & Weight

Length:

120 mm

Width:

120 mm

Height:

25 mm

Weight:

184 g
