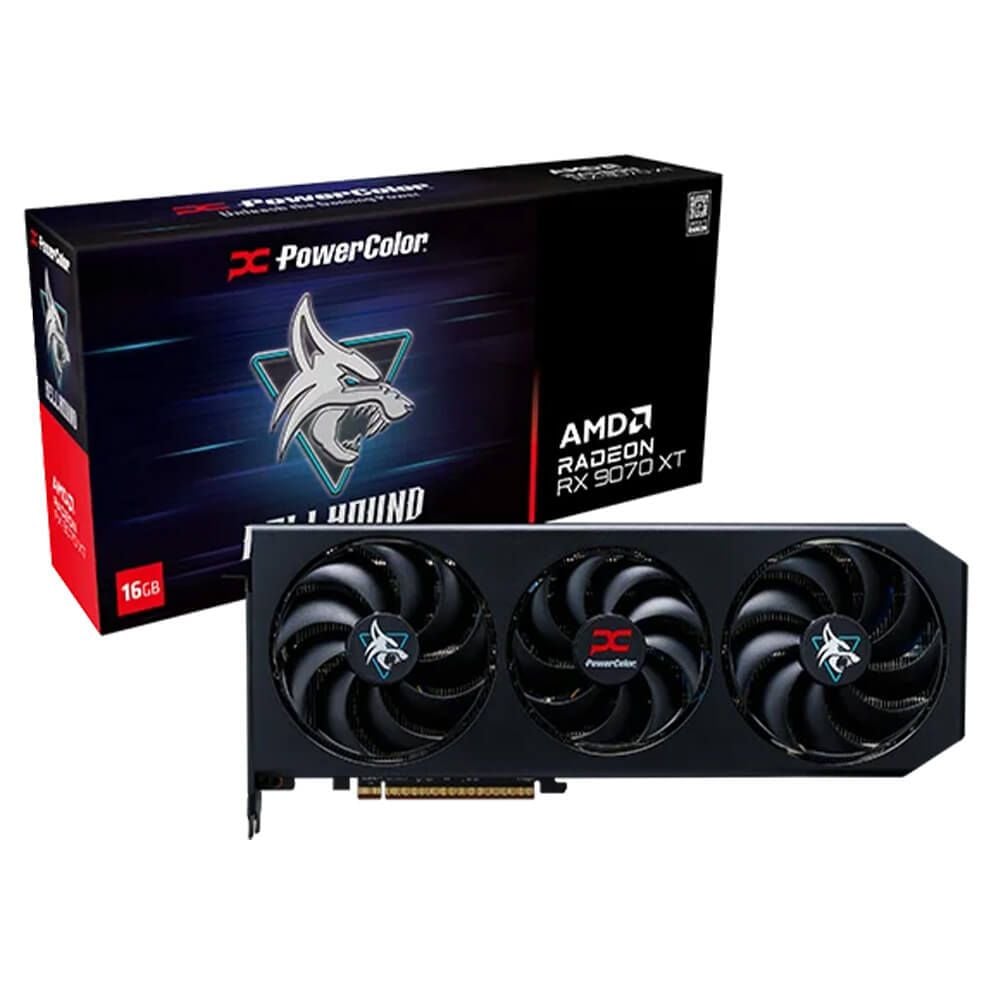

VGA POWERCOLOR Hellhound AMD Radeon™ RX 9070 XT 16GB GDDR6

Graphics Engine

AMD Radeon™ RX 9070 XT

Model Name

RX9070XT 16G-/OC

Series

Hellhound

Stream Processor

4096 Units

Video Memory

16GB GDDR6

Memory Speed

20.0 Gbps

Memory Interface

256-bit

Engine Clock(OC)

up to 2460MHz(Game)¹
up to 3010MHz(Boost)²

Engine Clock(STD/Silent)

up to 2400MHz(Game)¹
up to 2970MHz(Boost)²

Bus Standard

PCIE 5.0 x16

Standard Display Connectors

1 x HDMI 2.1b，3 x DisplayPort 2.1a

Feature Support

DirectX® Support

12

OpenGL

4.6

AMD Stream Technology

Support

AMD Eyefinity Technology

Support

AMD Smart Access Memory

Support

Maximum Resolution

DisplayPort

7680×4320

HDMI

7680×4320

Power Specs + Board Dimensions

Board Dimensions

327mm*128mm*49mm
340mm*142mm*49mm(with bracket)

Slot

2.5

Minimum System Power requirement (W)

800W

Extension Power Connector

Two 8-pin PCI Express Power connectors
