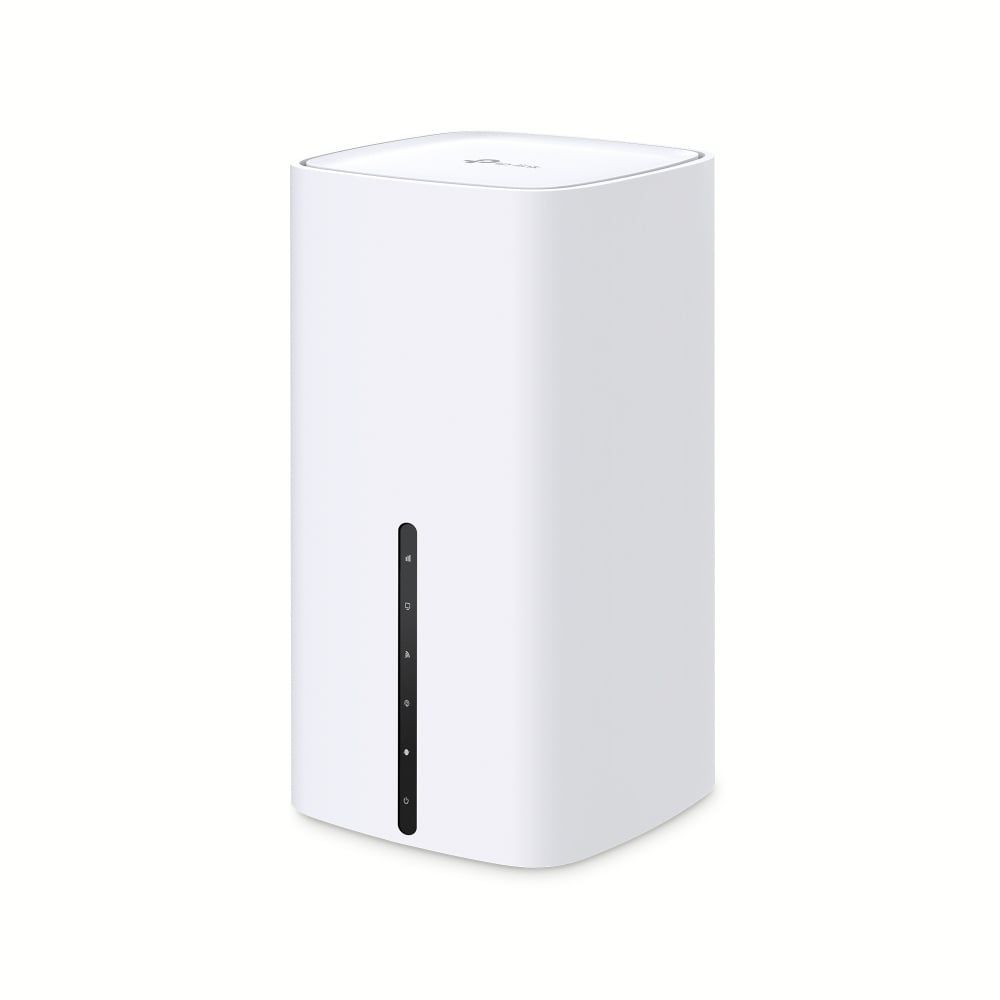

TP-LINK Archer NX200 Router SIM 5G AX1800 Wi-Fi Gigabit Băng Tần Kép

Thương hiệu: TP-LINK

Bảo hành: 24 Tháng

6,290,000₫

Số lượng:

TÍNH NĂNG PHẦN CỨNG

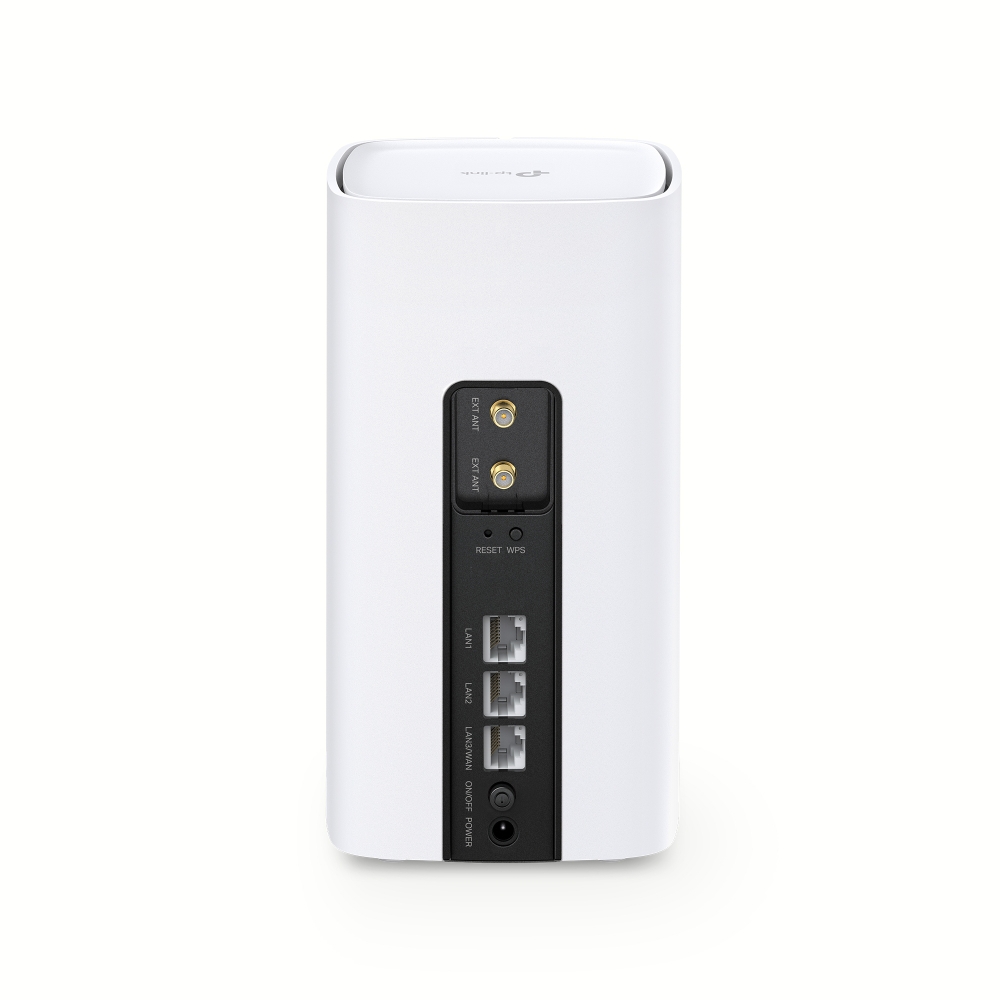

Giao diện	1 × 10/100/1000 Mbps LAN/WAN Port 2 × 10/100/1000 Mbps LAN Ports 1 × Nano SIM Card Slot 2 × External SMA-F Antenna Interface
Nút	WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button
Bộ cấp nguồn bên ngoài (EU)	Power Adapter: Input Power 100-240v~50/60 Hz 0.6A Output parameter 12VDC 2A
Kích thước ( R x D x C )	3.9 × 3.9 × 7.5 in ( 99 × 99 × 190 mm)
Ăng ten	8 × 5G/LTE Internal Antennas 2 × Wi-Fi Internal Antennas

TÍNH NĂNG WI-FI
Chuẩn Wi-Fi	IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
Băng tần	2.4 GHz and 5 GHz
Tốc độ tín hiệu	574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz
Reception Sensitivity	5GHz： 11a 54M：-80 dBm 11ax HE20：-68 dBm 11ax HE40：-65 dBm 11ax HE80：-62 dBm 11ac VHT20：-76 dBm 11ac VHT40：-72 dBm 11ac VHT80：-68 dBm 11n HT20：-79 dBm 11n HT40：-75 dBm 2.4GHz 11g 54M：-78 dBm 11ax HE20：-65 dBm 11ax HE40：-62 dBm 11ac VHT20：-73 dBm 11ac VHT40：-68 dBm 11n HT20：-75 dBm 11n HT40：-72 dBm
Tính năng Wi-Fi	Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
WAN Failover	Yes
Bảo mật Wi-Fi	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Công suất truyền tải	<23dBm (5.15GHz~5.35GHz) <30dBm (5.47GHz~5.71GHz) <20dBm (2.4GHz)
Dạng mạng	5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz) FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz) TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz) DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

TÍNH NĂNG PHẦN MỀM
Chất lượng dịch vụ	Prioritizes network traffic by device or application
Bảo mật	DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control
Dạng WAN	Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Quản lý	TP-Link Cloud, Local Management, Remote Management
DHCP	Server, DHCP Client List, Address Reservation
Port Forwarding	ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	TP-Link, DynDns, NO-IP
VPN	PPTP VPN, IPSec VPN , OpenVPN
Kiểm soát truy cập	Parental Control, Local Management Control
Bảo mật tường lửa	DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
Giao thức	IPv4, IPv6
Mạng khách	2.4 GHz Guest Network x 1 5 GHz Guest Network x 1

OTHER
Network Services Enabled by Default	Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP IPv6 DHCP Server IP address assignment (DHCPv6) • Port: 547 Protocol: UDP DNS DNS • Port: 53 Protocol: TCP App management Manage and configure device through app • Port: 22 Protocol: TCP • Port: 20002 Protocol: TCP

OTHER

Network Services Enabled by Default

Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP

DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP

IPv6 DHCP Server
IP address assignment (DHCPv6)
• Port: 547 Protocol: UDP

DNS
DNS
• Port: 53 Protocol: TCP

App management
Manage and configure device through app
• Port: 22 Protocol: TCP
• Port: 20002 Protocol: TCP

KHÁC
Chứng chỉ	CE, RoHS
Sản phẩm bao gồm	5G AX1800 Wireless Dual-Band Gigabit Router Archer NX200 1.5m Power Adapter RJ45 Ethernet Cable Quick Installation Guide
System Requirements	Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Nano SIM Card
Môi trường	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
