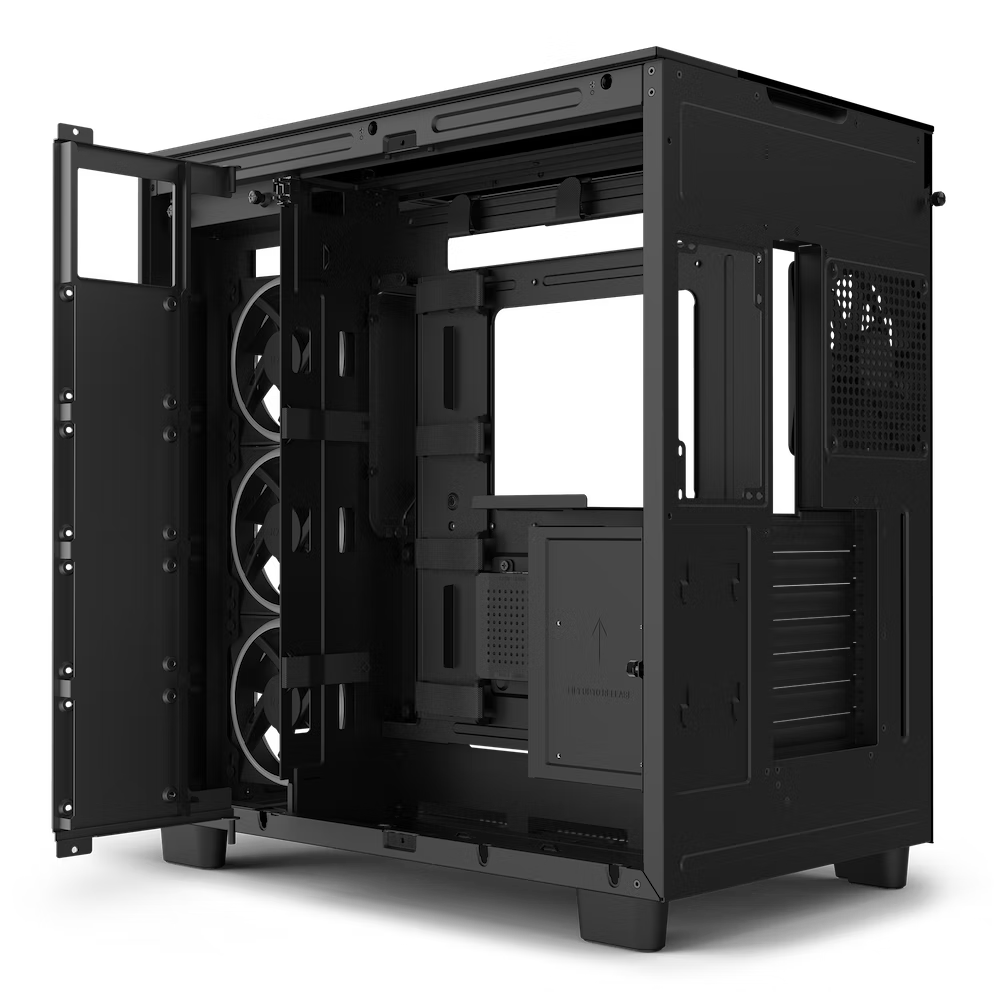

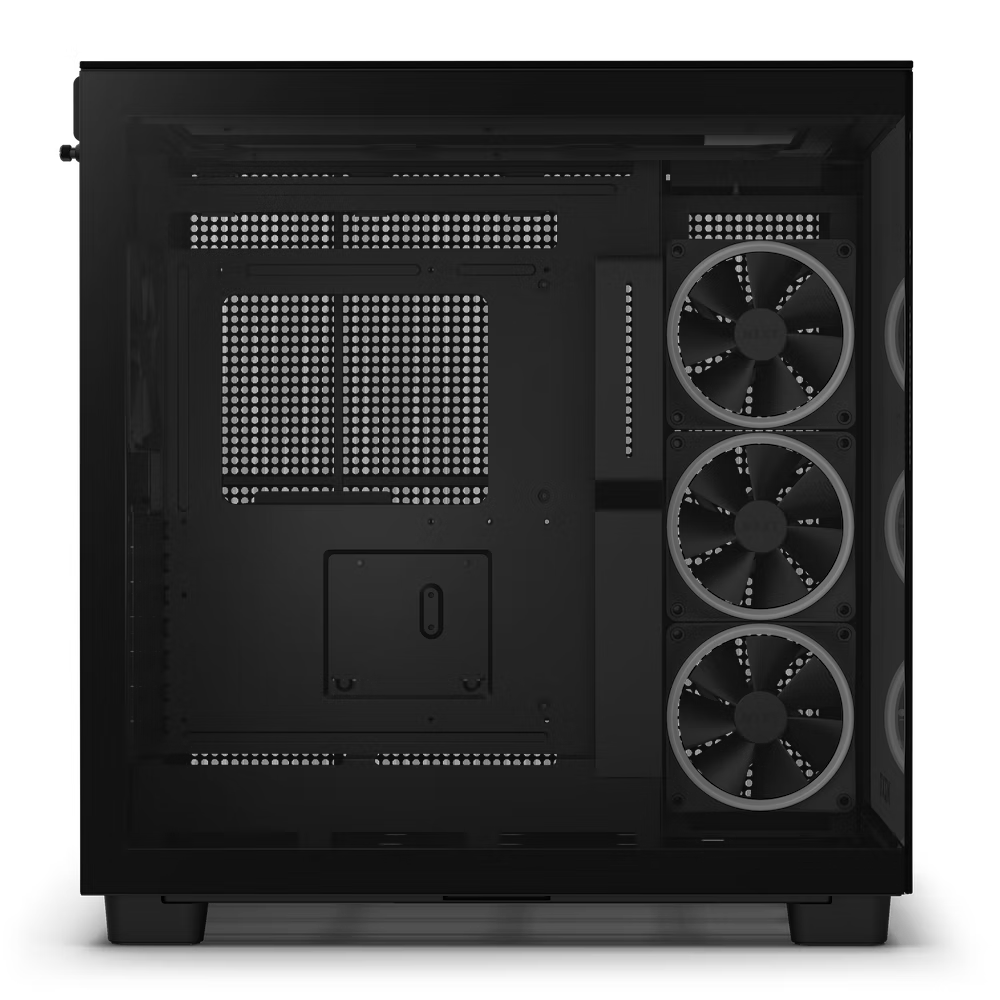

NZXT H9 Elite Black

KEY SPECS

• Motherboard Support:Mini-ITX, Micro-ATX, ATX

• Enclosure Type:Mid-Tower

• Case Material:SGCC Steel, TUltra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)

DIMENSIONS

• Height:495mm (With Feet)

• Width:290mm

• Depth:466mm

• Weight:13.1 kg

COMPATIBILITY & CLEARANCE

• CPU Cooler Clearance:Up to 165mm

• GPU Clearance:Up to 435mm

• PSU Clearance:200mm

• Cable Management:91mm

FRONT I/O PORTS

• USB 3.2 Gen 1 Type-A:2

• USB 3.2 Gen 2 Type-C:1

• Headset Audio Jack:1

EXPANSION SLOTS

• Standard:7

• Vertical:0

DRIVE BAYS

• 2.5":4+2

• 3.5":2

FAN SUPPORT

• Side:3 x 120mm

• Top:3 x 120mm / 2 x 140mm

• Bottom:3 x 120mm / 2 x 140mm

• Rear:1 x 120mm

• Filters:All Air Intakes

RADIATOR SUPPORT

• Side:Up to 360mm

• Top:Up to 360mm

• Bottom:Up to 360mm

• Rear:Up to 120mm

FAN SPECS

• Model:F120Q (Case Version)

• Speed:1200 ± 240RPM

• Airflow:62.18 CFM

• Static:1.05 mm - H2O

• Noise:25.1 dBA

• Fan Connector:3-pin

FAN SPECS

• Model:F120RGB Duo

• Speed:500 ± 1800RPM

• Airflow:48.58 CFM

• Static:2.42mm - H2O

• Noise:29 dBA

• Fan Connector:4-pin
