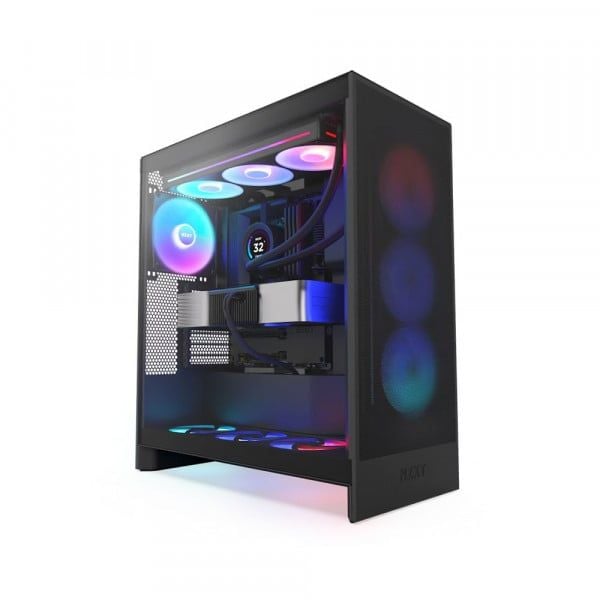

NZXT H7 FLOW RGB (CM-H72FB-R1) ATX 3 Fan RGB

Tech Specs

Key Specs

Motherboard Support

E-ATX (Up to 277mm), ATX, Micro-ATX, Mini-ITX

Enclosure Type

Mid-Tower

Case Material

SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

Dimensions

Height (With Feet)

544 mm

Width

244 mm

Depth

468 mm

Weight

11.13 kg

Compatibility & Clearance

CPU Cooler Height

Up to 185mm

GPU Length

Up to 410 mm

PSU Length

Up to 200 mm

Cable Management

Up to 34.5 mm

Top Mounted Radiator & Fan Combined Thickness

Up to 57 mm (140mm / 280mm)

Front I/O Ports

USB 3.2 Gen 1 Type-A

2

USB 3.2 Gen 2x2 Type-C (20 Gbps)

1

Headset Audio Jack

1

Expansion Slots

Standard

7

Vertical

0

Drive Bays

2.5"

2+2

3.5"

2

Fan Support

Front

3 x 120 mm / 3 x 140 mm (1 x F360 RGB Core included)

Top

3 x 120 mm / 2 x 140 mm

Bottom

3 x 120 mm

Rear

1 x 120 mm / 1 x 140 mm

Filters

High-Performance Mesh

Radiator Support

Front

Up to 420 mm

Top

Up to 360mm

Rear

Up to 140mm
