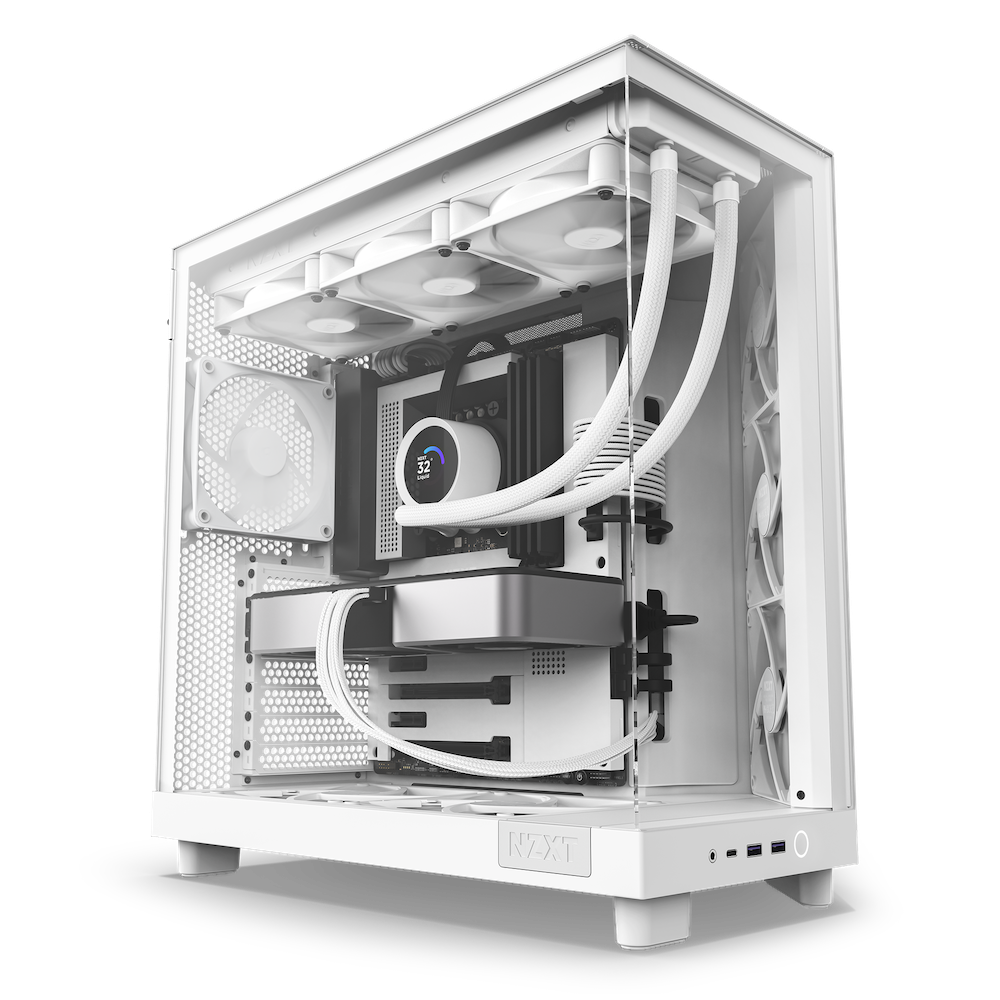

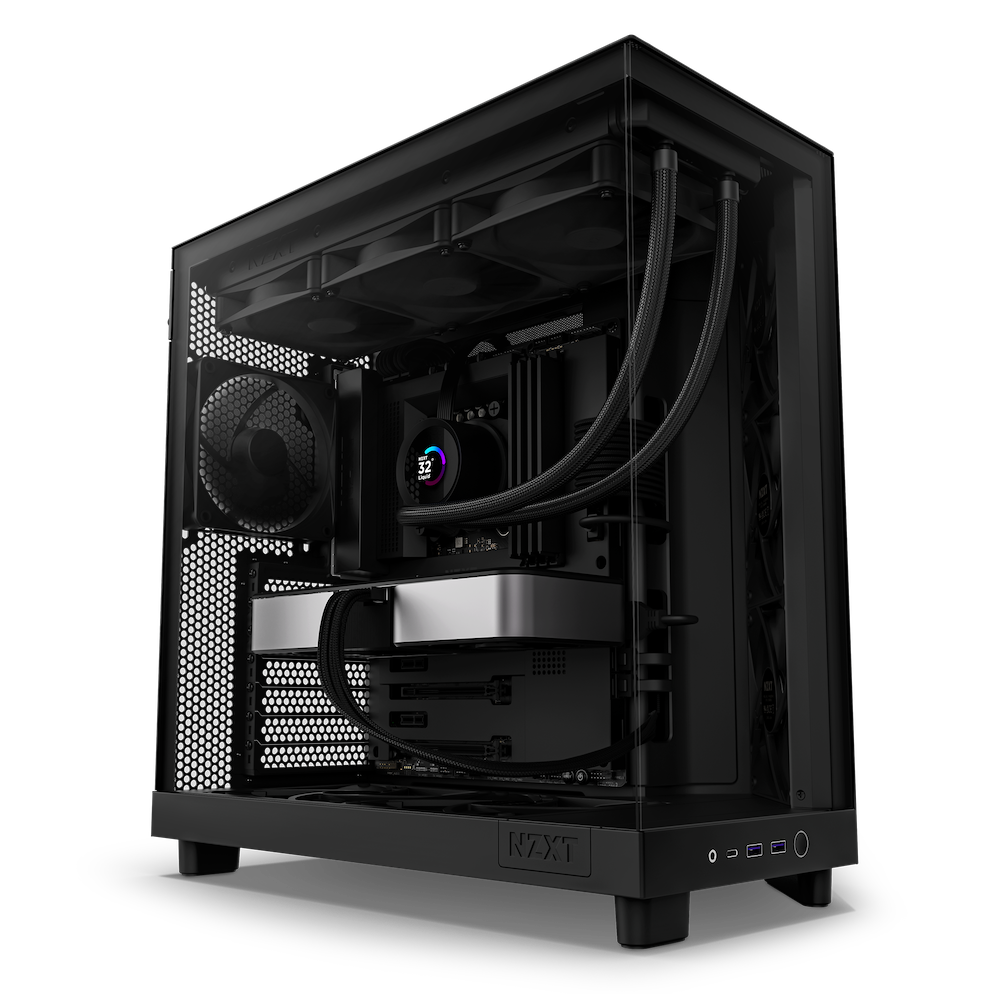

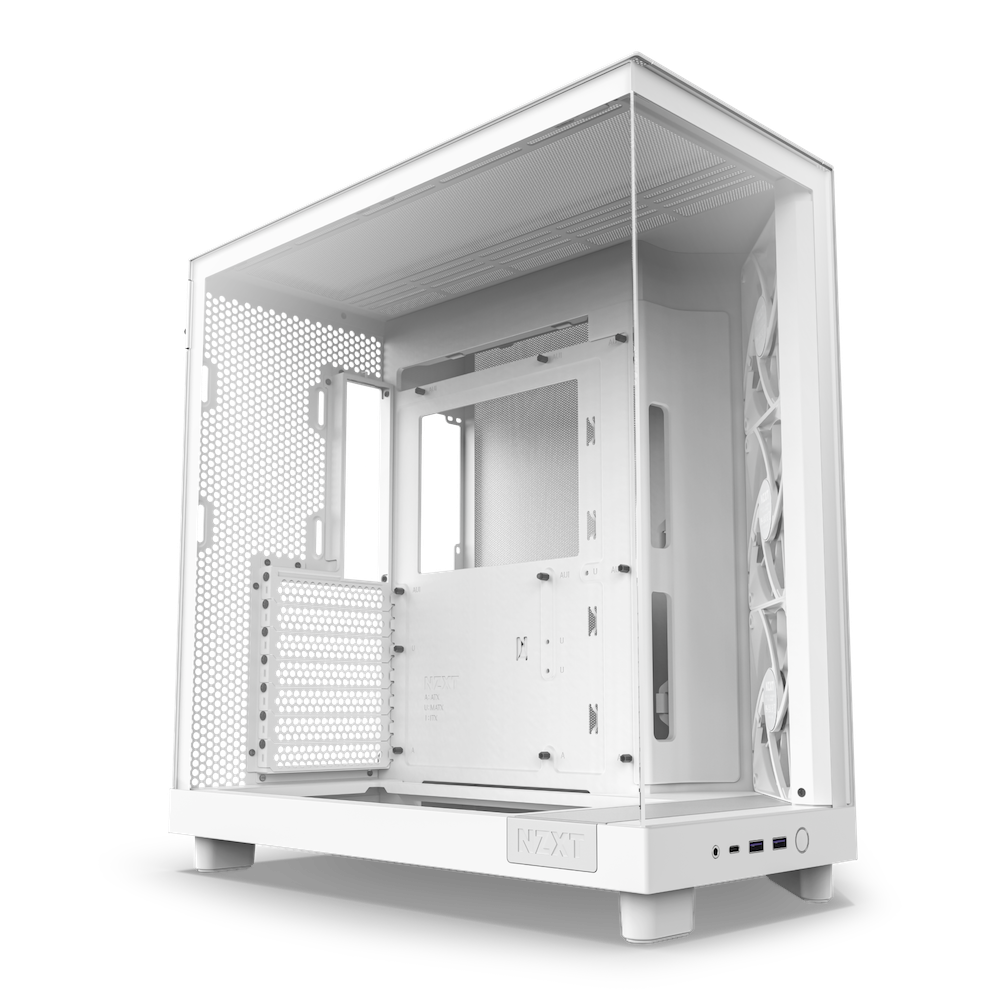

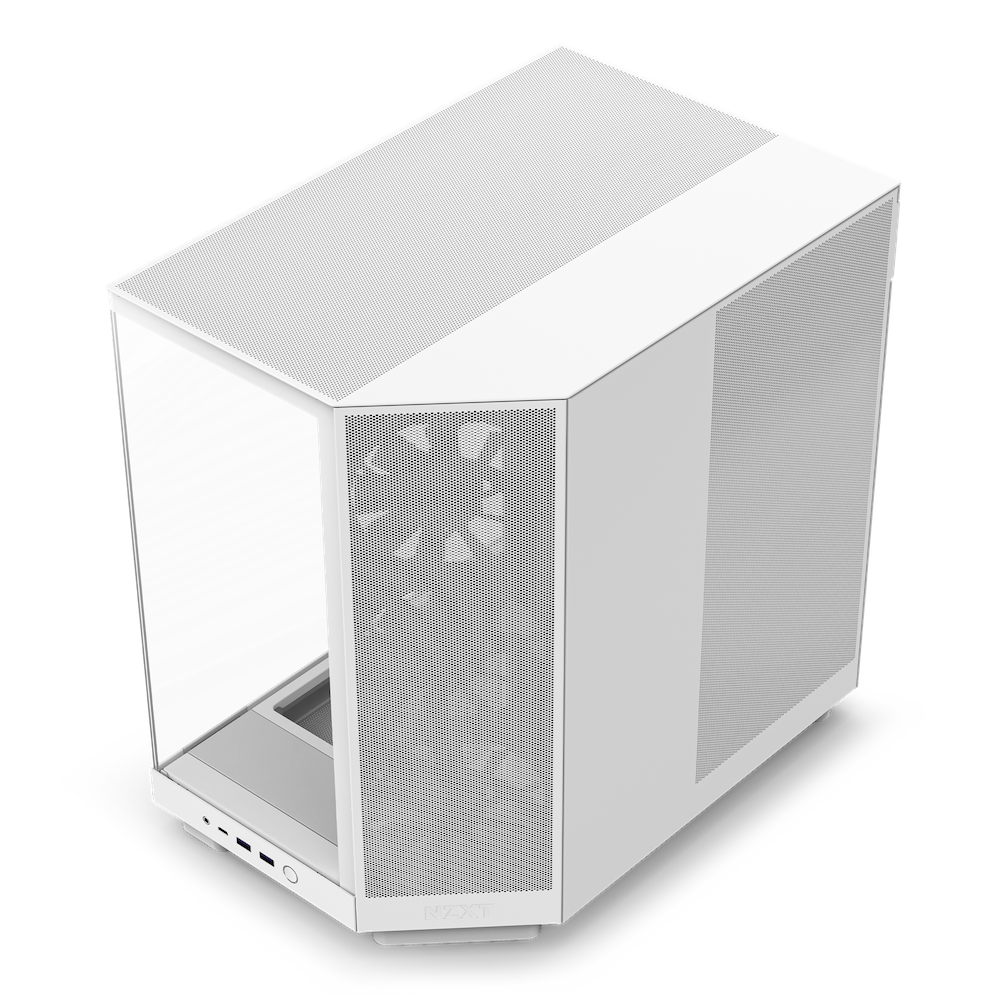

NZXT H6 Flow

Tech Specs

KEY SPECS

• Motherboard Support:ATX, Micro-ATX, Mini-ITX

• Enclosure Type:Mid-Tower

• Case Material:SGCC Steel, Ultra-Clear Tempered Glass, Dark Tinted Tempered Glass (Black SKU only)

DIMENSIONS

• Height (with feet):435 mm / 17.13 in

• Width:287 mm / 11.3 in

• Depth:415 mm / 16.34 in

• Weight:9.4 kg

COMPATIBILITY & CLEARANCE

• CPU Cooler Height:163 mm / 6.42 in

• GPU Length:365 mm / 14.37 in

• PSU Length:200 mm / 7.87 in

• Cable Management:91 mm / 3.58 in

• Top Radiator:30 mm / 1.18 in

FRONT I/O PORTS

• USB 3.2 Gen 1 Type-A:2

• USB 3.2 Gen 2 Type-C:1

• Headset Audio Jack:1

EXPANSION SLOTS

• Standard:7

• Vertical:0

DRIVE BAYS

• 2.5":2

• 3.5":1

FAN SUPPORT

• Front-Right:3 x 120 mm (3 x F120Q included)

• Top:3 x 120 mm / 2 x 140 mm

• Bottom:2 x 140 mm

• Rear:1 x 120 mm

• Filters:High-Performance Mesh

RADIATOR SUPPORT

• Top:Up to 360 mm

• Rear:Up to 120 mm

FAN SPECS

• Model:F120Q Airflow Fan (Case Version)

• Speed:1200 ± 240RPM

• Airflow:62.18 CFM

• Static:1.05 mm - H2O

• Noise:25.1 dBA

• Fan Connector:3-pin
