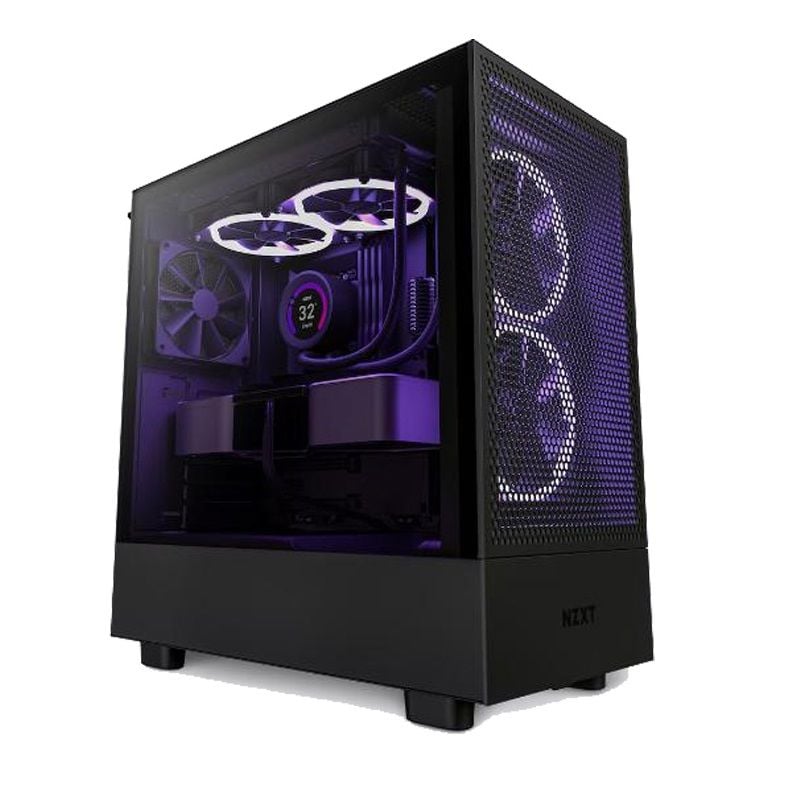

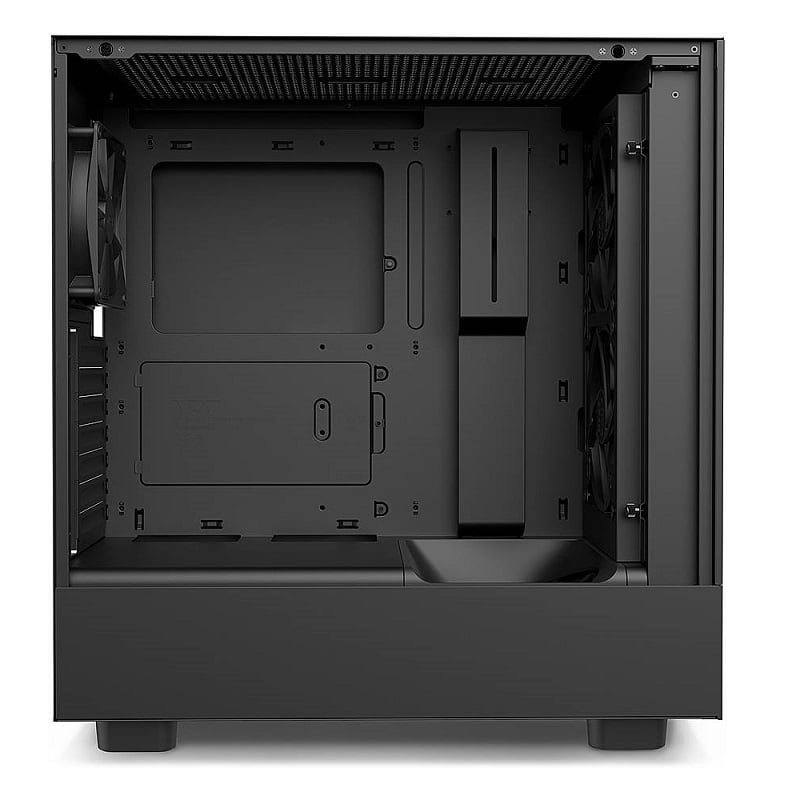

NZXT H5 Flow (Black/White)

KEY SPECS

• Motherboard Support:Mini-ITX, Micro-ATX, ATX, and EATX (Up to 272mm)

• Enclosure Type:Mid-Tower

• Case Material:SGCC Steel, Tempered Glass

DIMENSIONS

• Height:464mm (With Feet)

• Width:227mm

• Depth:446mm

• Weight:7.01 kg

COMPATIBILITY & CLEARANCE

• Max CPU Cooler Clearance:Up to 165mm

• Max GPU Clearance:Up to 365mm

• Front Radiator Clearance:45mm

• Cable Management:Up to 23mm

FRONT I/O PORTS

• USB 3.2 Gen 1 Type-A:1

• USB 3.2 Gen 2 Type-C:1

• Headset Audio Jack:1

EXPANSION SLOTS

• Standard:7

• Vertical:0

DRIVE BAYS

• 2.5":1+1

• 3.5":1

FAN SUPPORT

• Front:2 x 120mm / 2 x 140mm

• Top:2 x 120mm

• Rear:1 x F Series Quiet 120mm (Case Version) included

• Bottom:1 x F Series Quiet 120mm (Case Version) included

RADIATOR SUPPORT

• Front:Up to 280mm

• Top:Up to 240mm

• Rear:Up to 120mm

FAN SPECS

• Model:F120Q (Case Version)

• Speed:1200 ± 240RPM

• Airflow:62.18 CFM

• Static:1.05 mm - H2O

• Noise:25.1 dBA

• Fan Connector:3-pin
