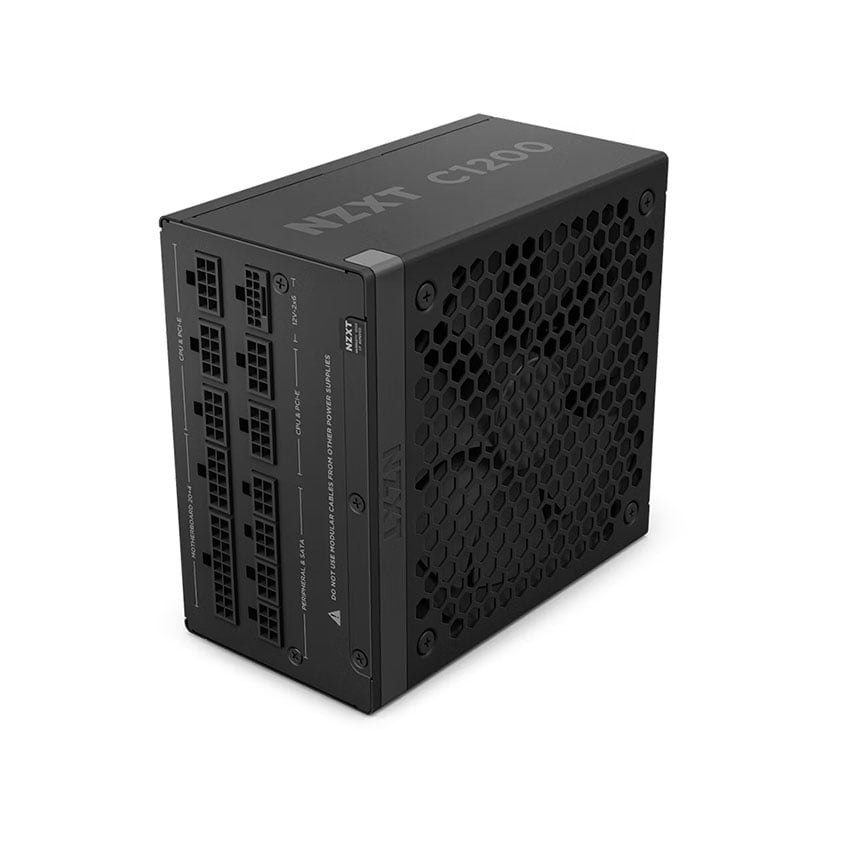

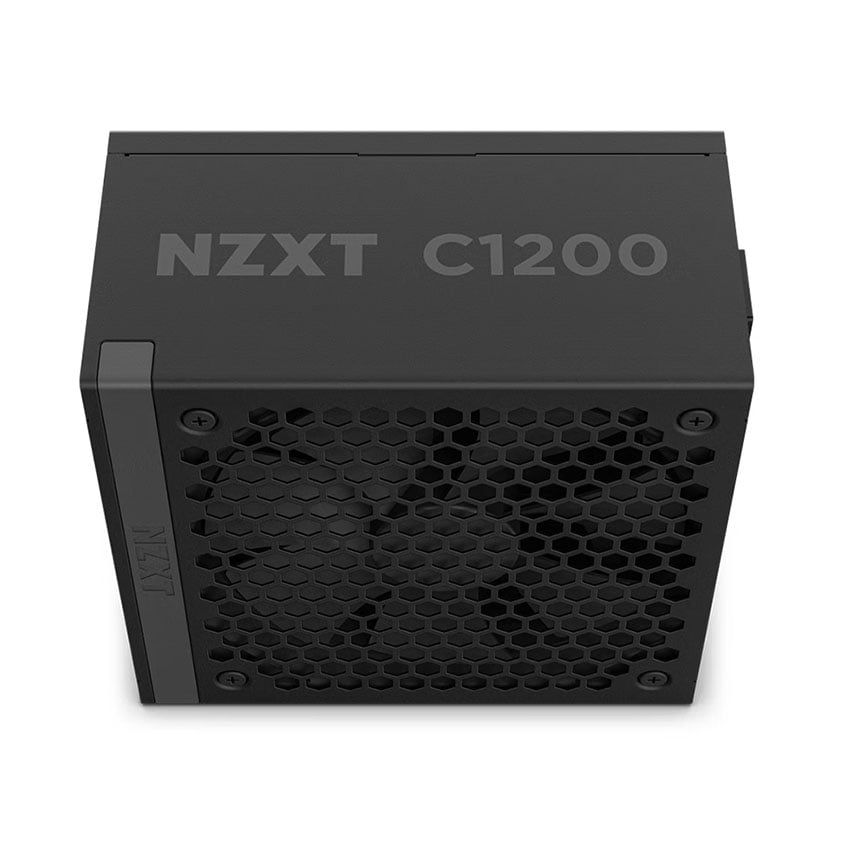

Nguồn máy tính NZXT C1200 Gold ATX 3.1 Black -1200W (PA-2G2BB-EU)

Tech Specs

Output Connectors

• 24-pin ATX Power Cable:1

• 4+4-pin CPU Power Cable:1

• 8-pin CPU Power Cable:1

• 6+2-pin PCIe Power Cable:3

• 16-pin (12+4) 12V-2x6 PCIe Cable:1

• SATA Cable:12

• Peripherals Cable:4

Cable Specs

• 24-pin ATX Power Cable:600mm with nylon sleeving

• 4+4-pin CPU Power Cable:700mm with nylon sleeving

• 8-pin CPU Power Cable:700mm with nylon sleeving

• 6+2-pin PCIe Power Cable:650mm with nylon sleeving

• 16-pin (12+4) 12V-2x6 PCIe Cable:650mm with nylon sleeving

• SATA Cable:500 + 150mm

• Peripherals Cable:500 + 150mm

AC Input Rating

• 100 - 240Vac:14A 50Hz-60Hz

• 200 - 240Vac:7A 50Hz-60Hz (China & South Korea)

DC Output Rating

• 3.3V / +5V:22A (120W)

• 12V:100A (1200W)

• 5Vsb:3A (15W)

• Total:1200W

Energy Efficiency

• Rating:80 Plus Gold

• 10% loading:85% @115Vac

• 20% loading:90.1% @115Vac

• 50% loading:91.6% @115Vac

• 100% loading:88.7% @115Vac

Electrical Features

• PF Correction:Active @0.99

• Protections:OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) /

Fan Specs

• Dimensions:135 x 135 x 25 mm

• Speed:2300 ± 10% RPM

• Airflow:93.02 CFM (Min.)

• Noise:44.5 dBA max

• Bearing:Fluid Dynamic Bearing (FDB)

Operation

• MTBF:100,000 hours

• Temperature:0 - 50 °C

Dimensions

• Width:150 mm

• Height:86 mm

• Depth:160 mm
