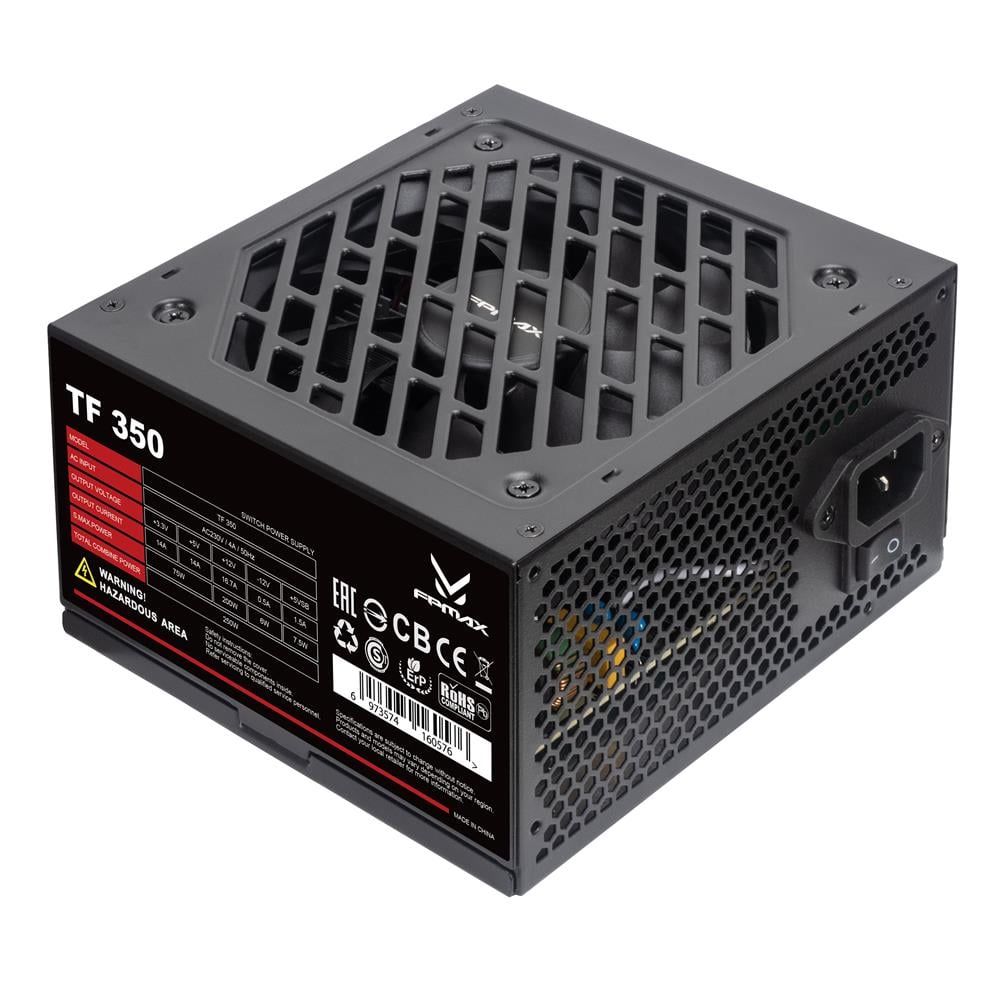

Nguồn Máy Tính FPMAX TF350 (250W)

Model NO

TF 350

Product Dimensions(W x L x H)

140*150*86mm

Efficiency Certification

Non

Fan Size

120mm

Fan Bearing

Hydro Bearing

Topology

Half Bridge

Capacitors

chinese top level class/105°

Power Good Signal

100-500 ms

Hold Up Time

≥16ms

Conversion Efficiency

≥78% Under Typical Load(50% Loading)

Protection

OVP、UVP、OPP、SCP

Operation Temperature

0 ℃ to 50 ℃

Authentication

CE

Erp Regulation

Non

Environmental Protection Label

RoHS

MTBF

100,000 hrs minimum (at 25 ℃)
