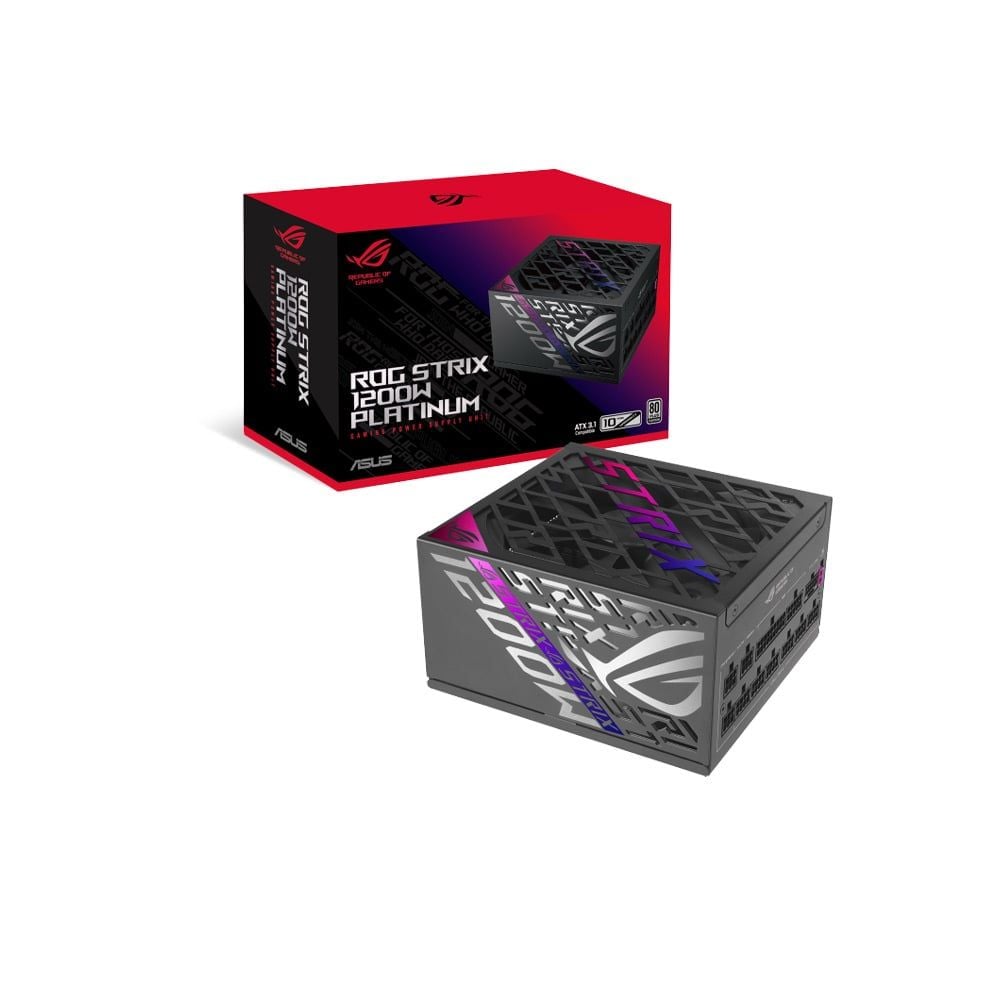

Nguồn Máy Tính ASUS ROG STRIX GAMING 1200P (1200W, ATX 3.1, PCIe 5.0, 80 Plus Plantinum, Full Modular)

Intel Specification

ATX12V

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions

160 x 150 x 86 mm

Efficiency

80Plus Platinum

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Material certification

ROHS

DC output

+3.3V +5V +12V -12V +5Vsb

Maximum Load

25A 25A 100A 0.3A 3A

Combined Load

130W 130W 1200W 3.6W 15W

Total Output

1200W

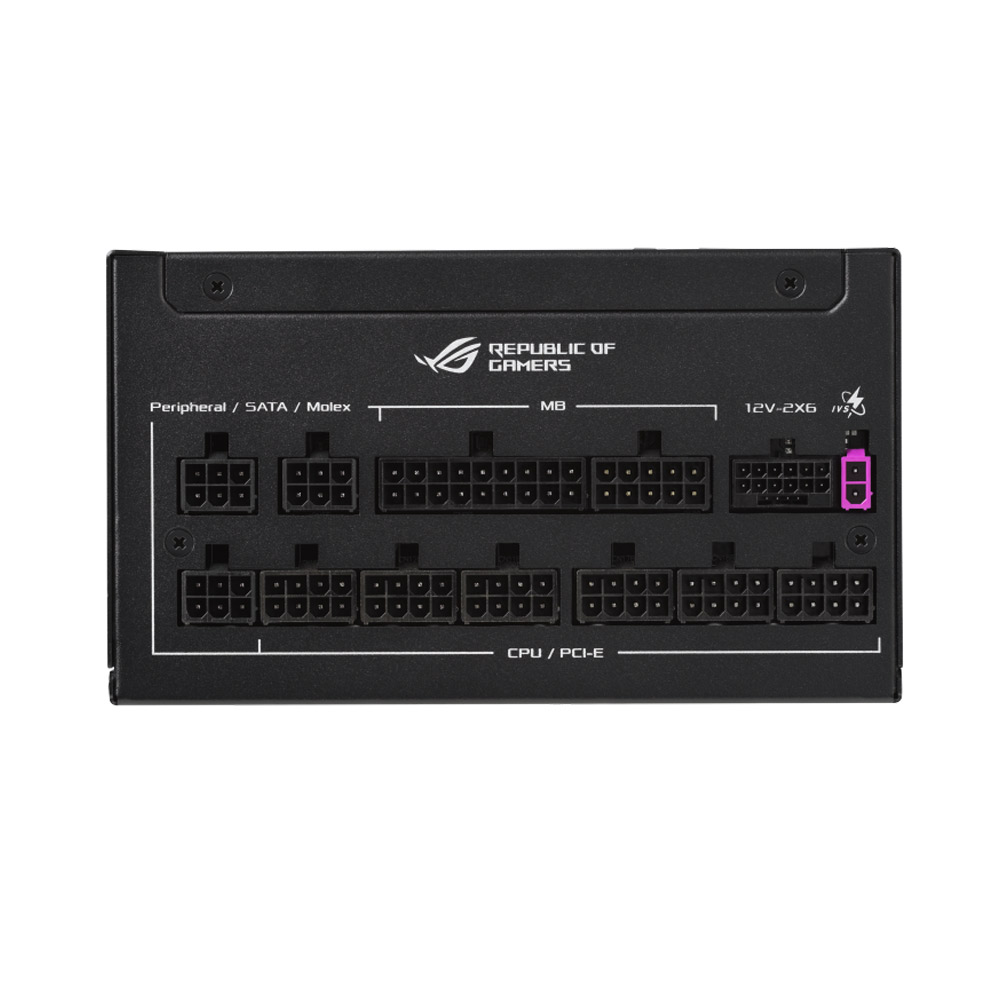

Connection port

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 6+2-pin x 4
SATA x 6
PERIPHERAL x 3

Package Contents

Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5.1 (16-pin-to-16-pin) Cable x 1 (750mm)
PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm)
SATA 1-to-3 Cable x 2 (400+120+120mm)
Peripheral 1-to-3 Cabel x 1 (400+150+150mm)
ROG Strix DIY sticker x 1
User Manual x 1

Weight

1.84 kg (single PSU)

Cybenetics Noise Level Certification

 TBD
