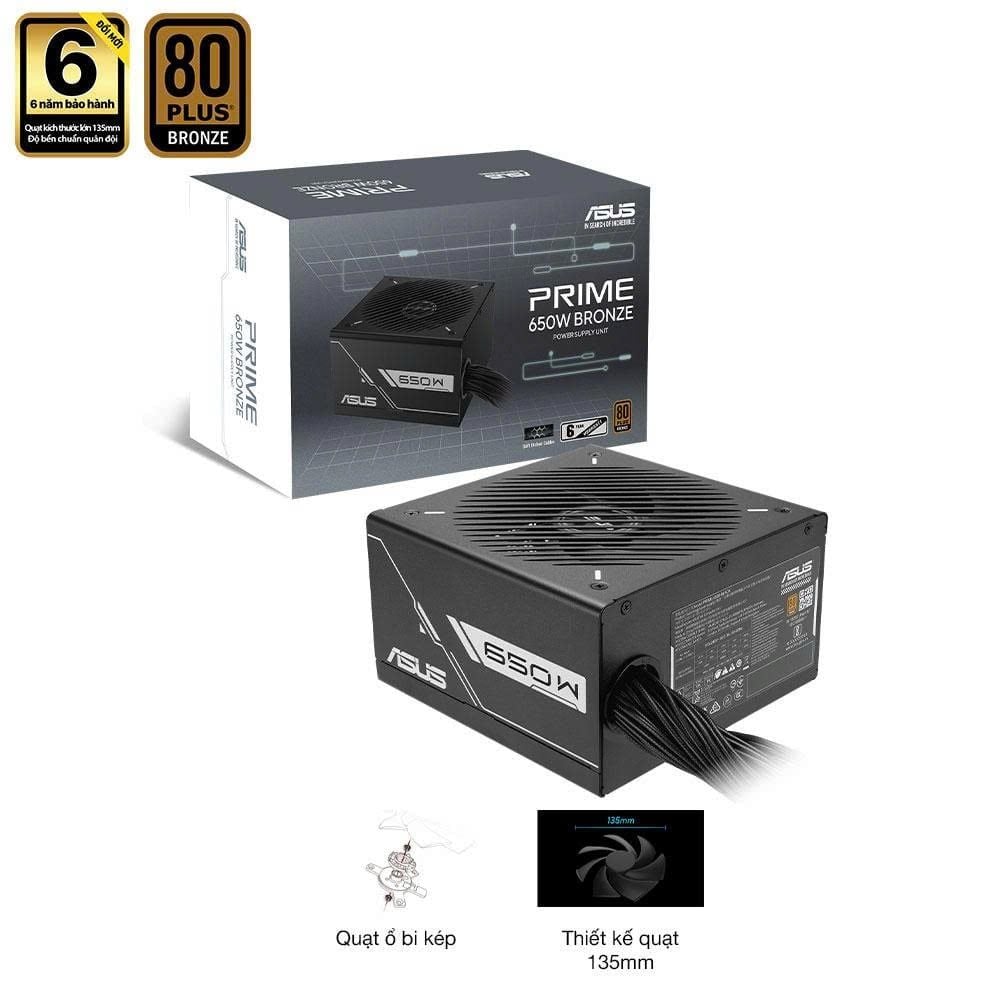

Nguồn Máy Tính ASUS Prime 650B (650W, 80 Plus Bronze, Non-modular)

Intel Specification

ATX12V

PFC Type

Active PFC

ATX Standard

-

Dimensions

150 x 150 x 86 mm

Efficiency

80Plus Bronze

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Material certification

ROHS

DC output

+3.3V +5V +12V -12V +5Vsb

Maximum Load

20A 20A 54A 0.3A 2.5A

Combined Load

110W 110W 648W 3.6W 12.5W

Total Output

650W

Connection port

MB 24/20-pin x 1
CPU 4+4-pin x 1
PCI-E 8-pin x 2
SATA x 5
PERIPHERAL x 3

Package Contents

Power Cord x 1
CPU cable x 1 (800mm)
PCI-E 1-to-2 x 1 (600mm)
SATA 1-to-2 cable x 1 (400+120mm)
SATA 1-to-3 cable x 1 (400+120+120mm)
Peripheral 1-to-3 cable x 1 (400+120+120mm)
User Manual x 1

Weight

2.2 kg (single PSU)
