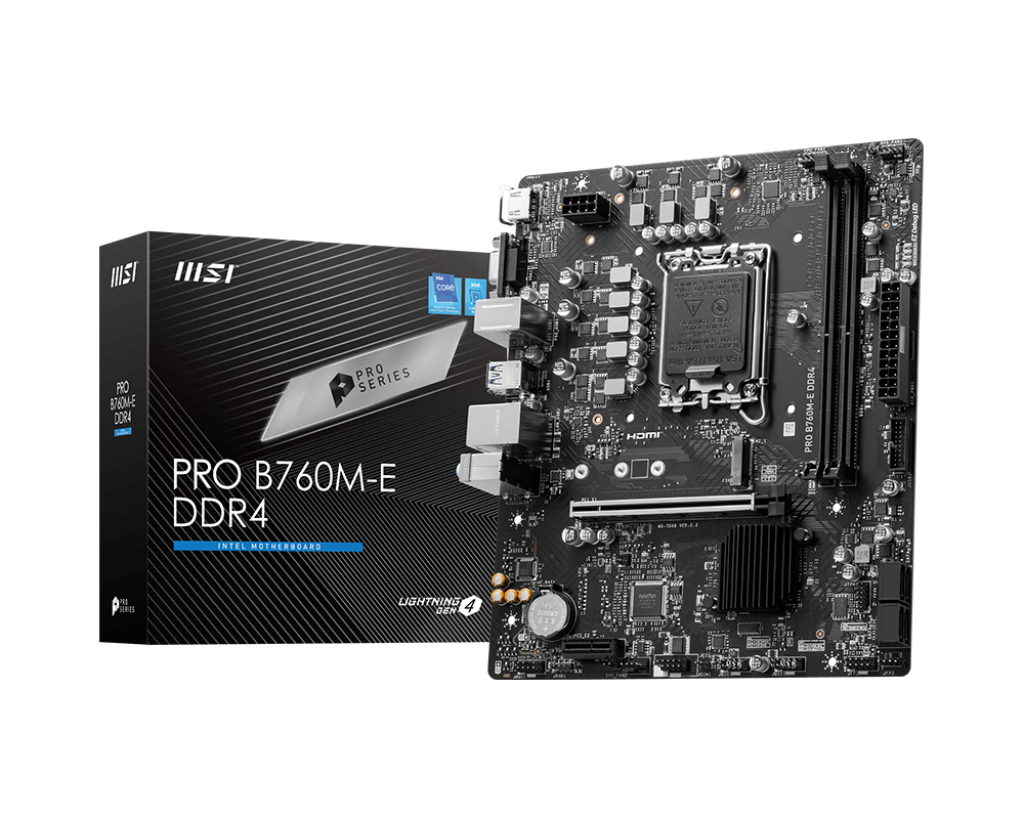

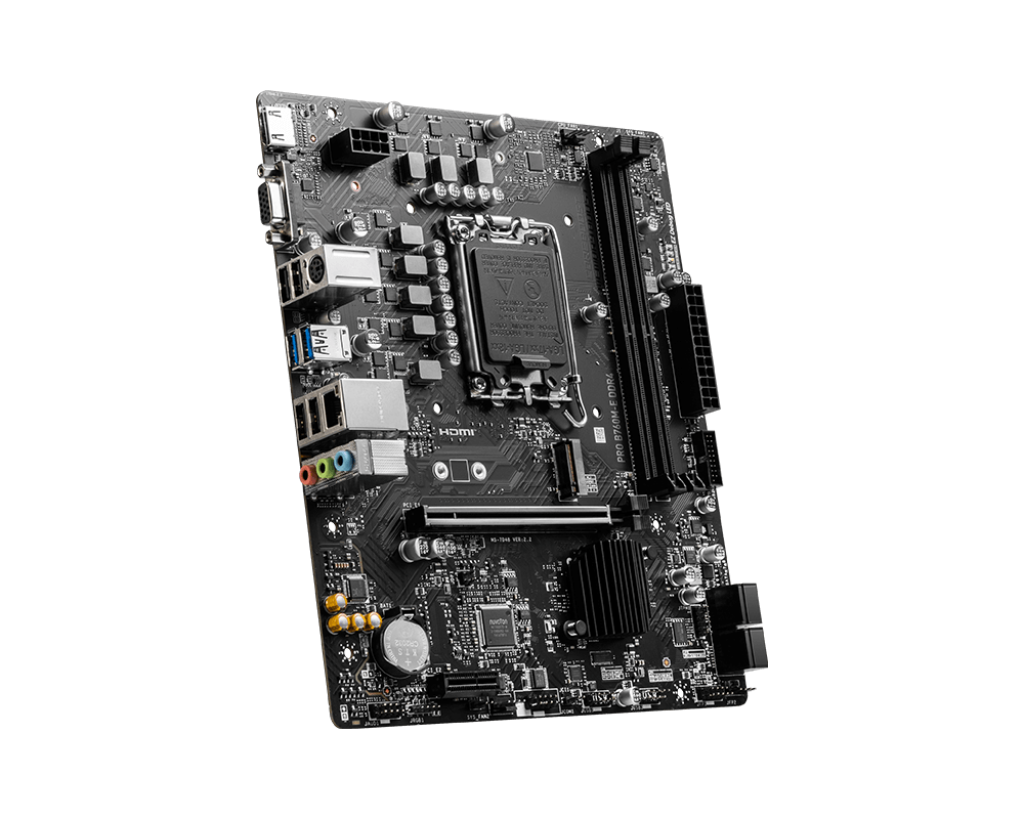

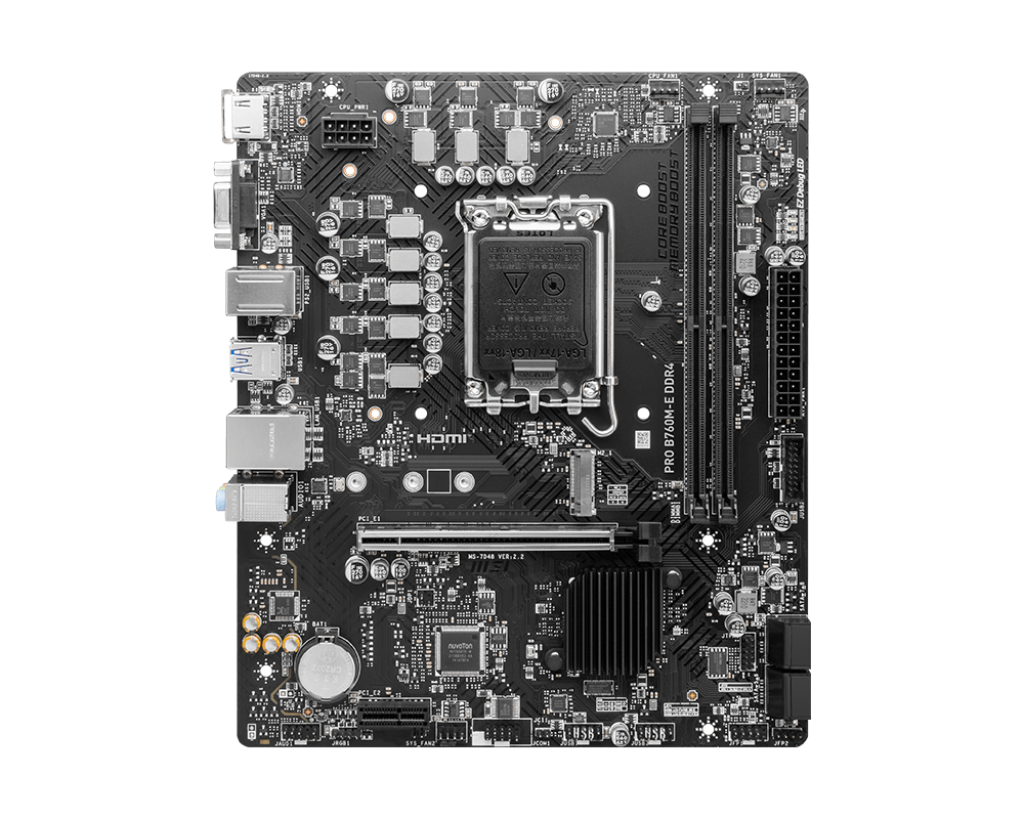

MSI PRO B760M-E DDR4 (VGA, HDMI)

Thương hiệu: MSI

Bảo hành: 36 Tháng

SX: 2023
HDSD: Lắp đặt với linh kiện tương thích, đúng quy trình
CBBQ: Sử dụng trong môi trường thông thoáng, tránh vào nước

2,590,000₫ 3,090,000₫
CHIPSETINTEL B760
CPU SUPPORTSupports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
MEMORY2x DDR4, Maximum Memory Capacity 64GB
Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
ONBOARD GRAPHICS1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
1x D-Sub
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT1x PCI-E x16 slot (Qty)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
STORAGE1x M.2 (Qty)
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LANRealtek® RTL8111H Gigabit LAN
AUDIORealtek® ALC897 Codec
7.1-Channel High Definition Audio
INTERNAL I/O1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
1x USB 3.2 Gen1 Type A ports
LED FEATURE4x EZ Debug LED

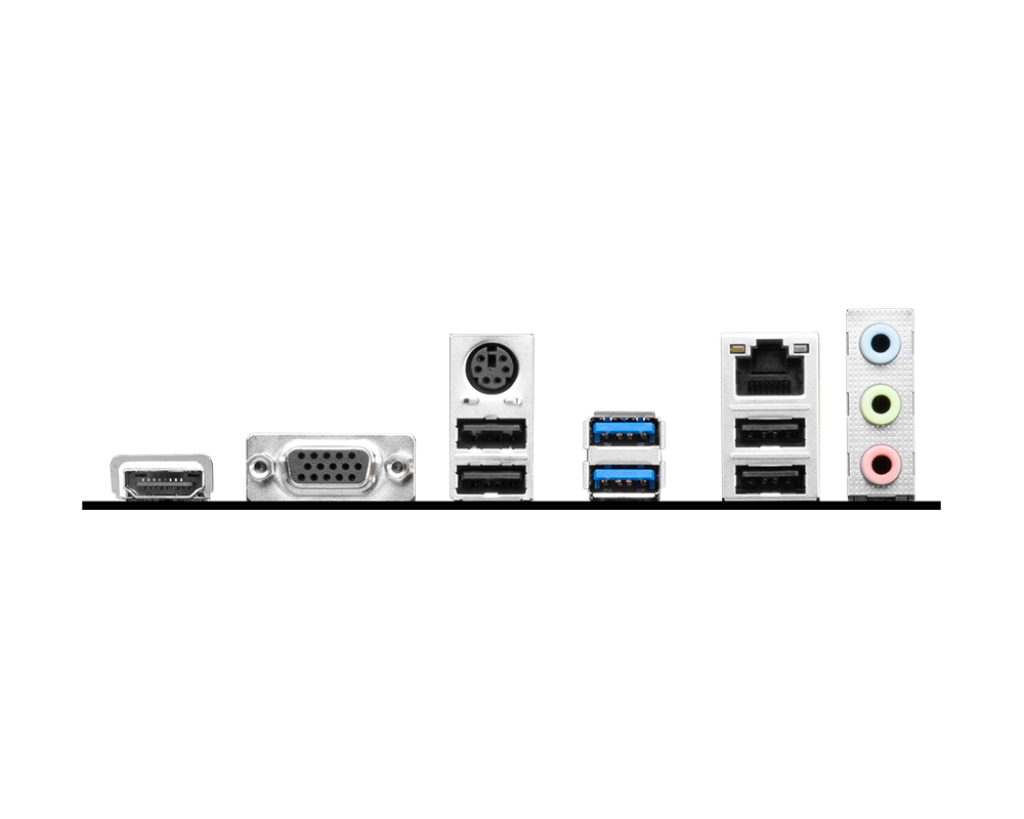

BACK PANEL PORTS
  1. HDMI™
  2. VGA
  3. Keyboard / Mouse
  4. USB 3.2 Gen 1 5Gbps (Type-A)
  5. LAN port
  6. Audio Connectors
  7. USB 2.0
  8. USB 2.0
OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION (W × L)mATX
200mmx236.16mm
