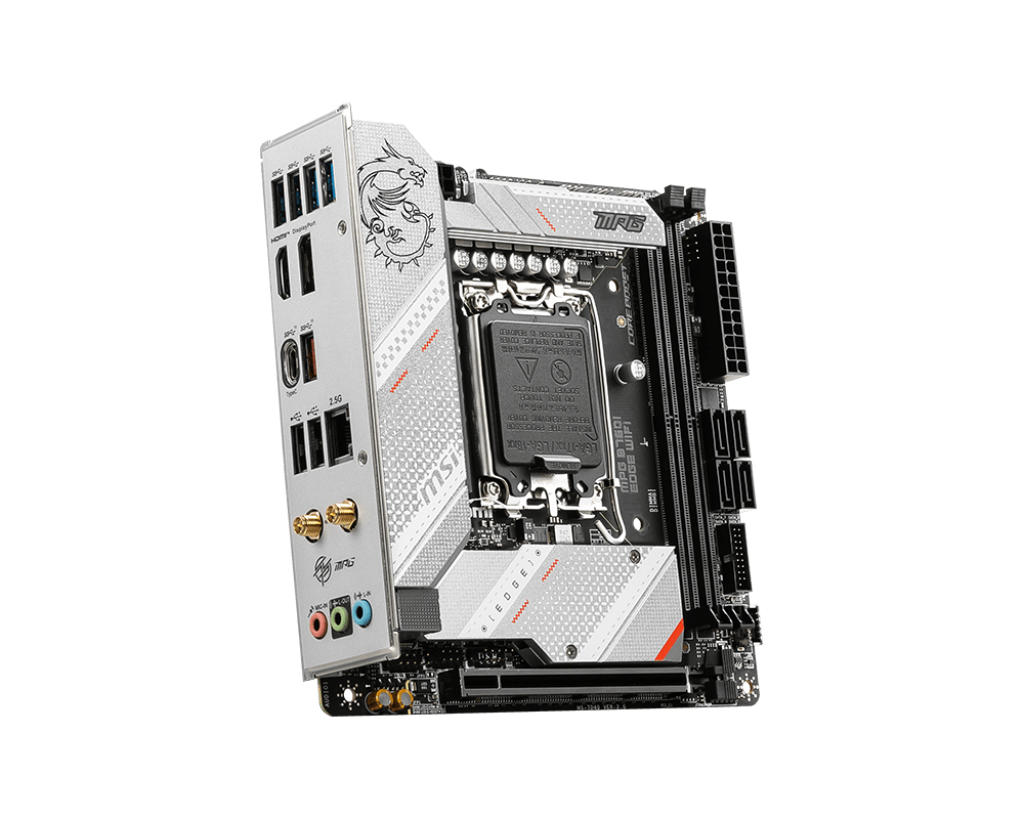

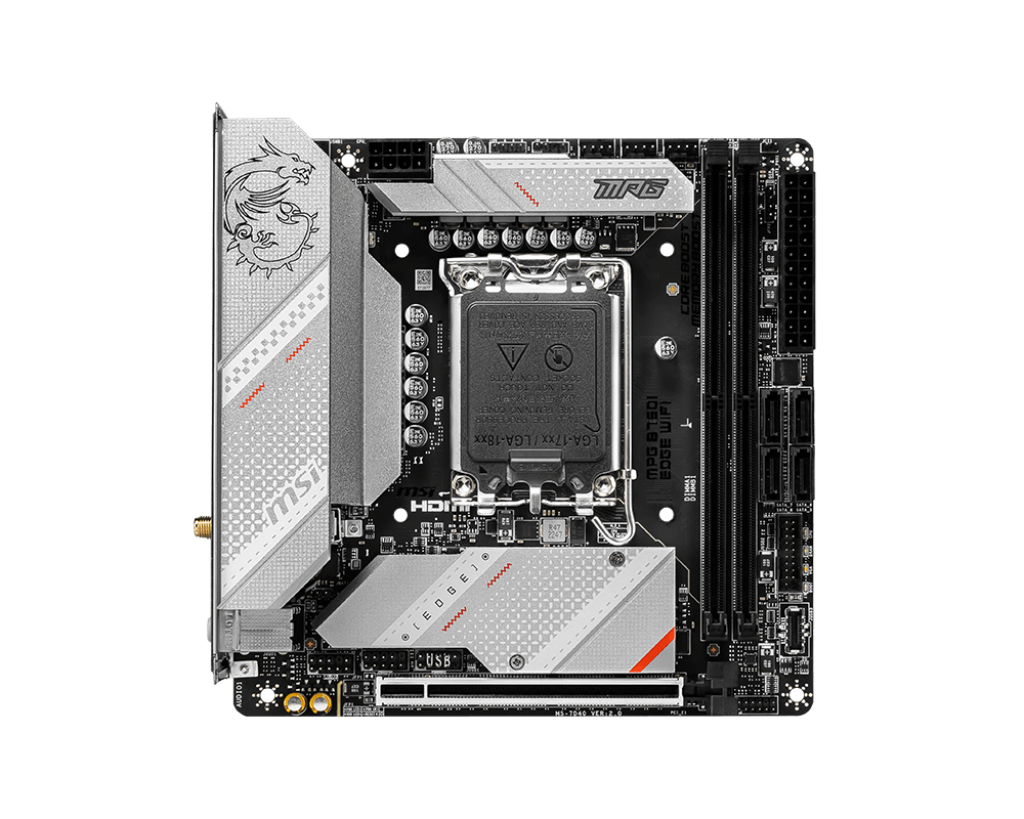

Mainboard MSI MPG B760I EDGE WIFI DDR5 (Socket 1700)

Sản phẩm

 Bo mạch chủ

Tên Hãng

 MSI

Model

 MPG B760I EDGE WIFI

CPU hỗ trợ

 Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
 LGA 1700

Chipset

 INTEL B760

RAM hỗ trợ

 2x DDR5, Maximum Memory Capacity 96GB
 Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/  5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
 Max. overclocking frequency:
-  1DPC 1R Max speed up to 7200+ MHz
- 1DPC 2R Max speed up to 6600+ MHz

Khe cắm mở rộng

 1x PCI-E x16 slot
 PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

Ổ cứng hỗ trợ

 2x M.2
 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
 M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
 4x SATA 6G

Cổng kết nối (Internal)

 1x Power Connector(ATX_PWR)
 1x Power Connector(CPU_PWR)
 1x CPU Fan
 1x Pump Fan
 1x System Fan
 2x Front Panel (JFP)
 1x Chassis Intrusion (JCI)
 1x Front Audio (JAUD)
 1x Addressable V2 RGB LED connector (JARGB_V2)
 1x RGB LED connector(JRGB)
 1x TPM pin header(Support TPM 2.0)
 2x USB 2.0 ports
 2x USB 3.2 Gen1 Type A ports
 1x USB 3.2 Gen2 Type C ports

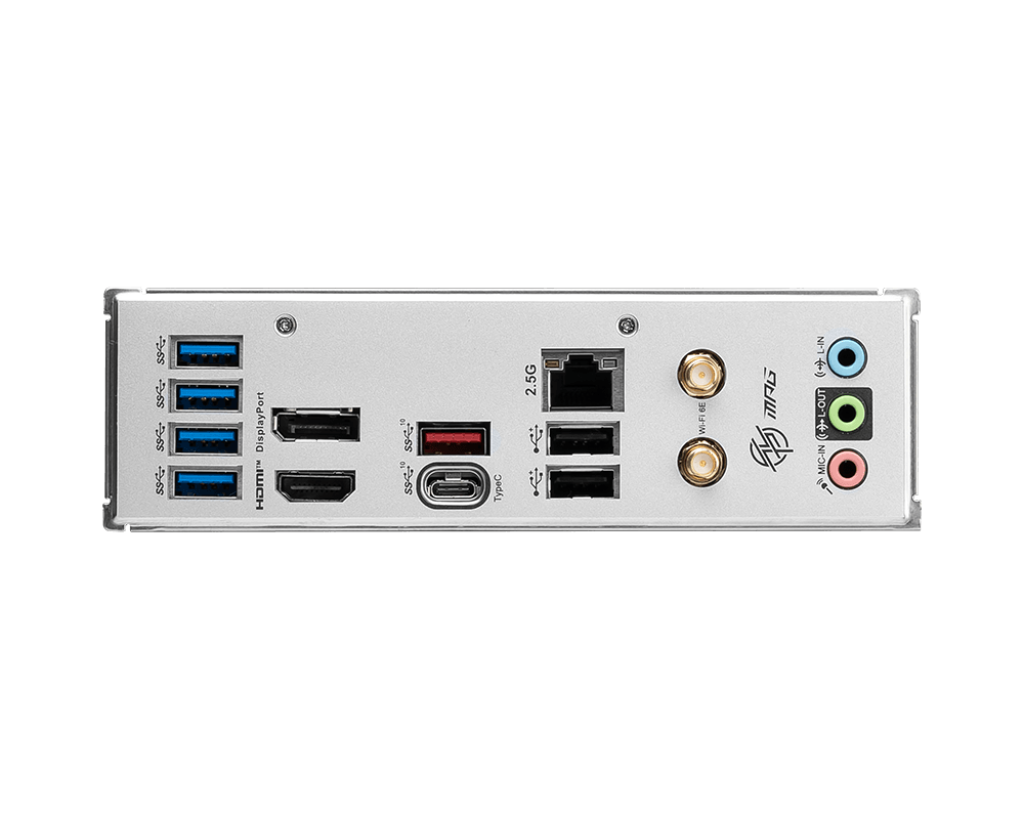

Cổng kết nối  (Back Panel)

1.  USB 3.2 Gen 1 5Gbps
2.  Display Port
3.  USB 3.2 Gen 2 10Gbps
4.  2.5G LAN
5.  Audio Connectors
6.  HDMI™
7.  USB 3.2 Gen 2 10Gbps (Type-C)
8.  USB 2.0
9.  Wi-Fi / Bluetooth

LAN / Wireless

 Realtek® RTL8125BG 2.5Gbps LAN

 Intel® Wi-Fi 6E
 The Wireless module is pre-installed in the M.2 (Key-E) slot
 Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
 Supports 802.11 a/ b/ g/ n/ ac/ ax

 Supports Bluetooth® 5.3, FIPS, FISMA

Kích cỡ

 Mini-ITX
 170mmx170mm
