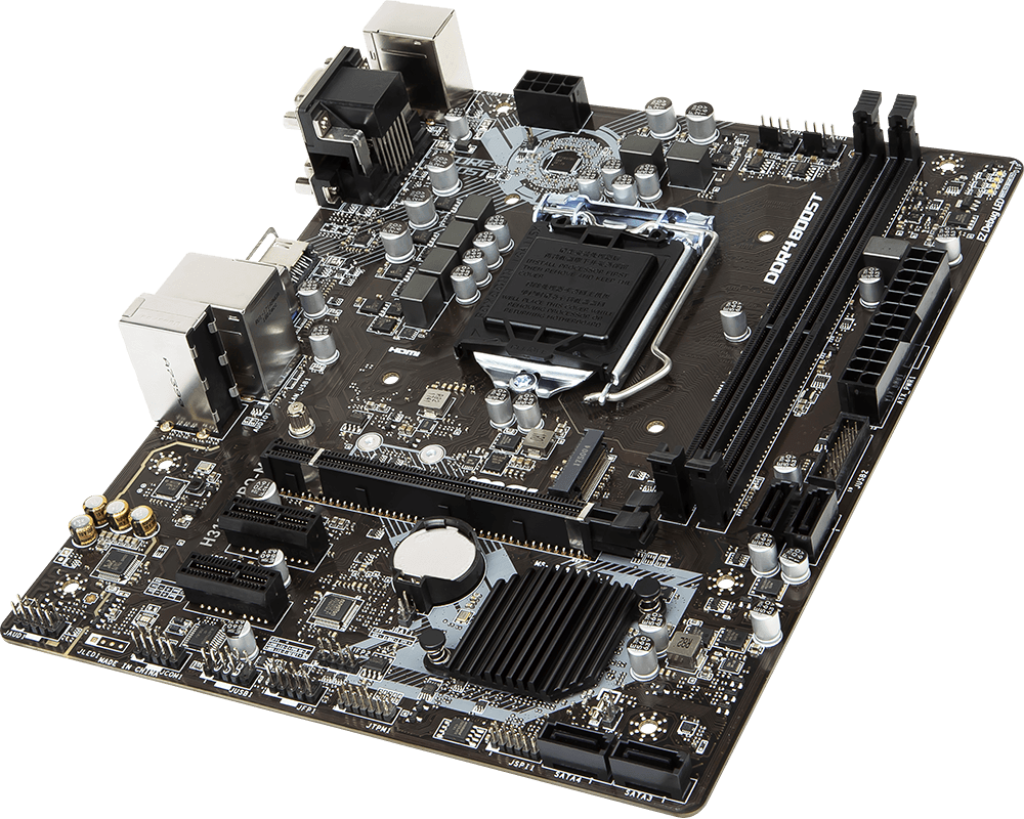

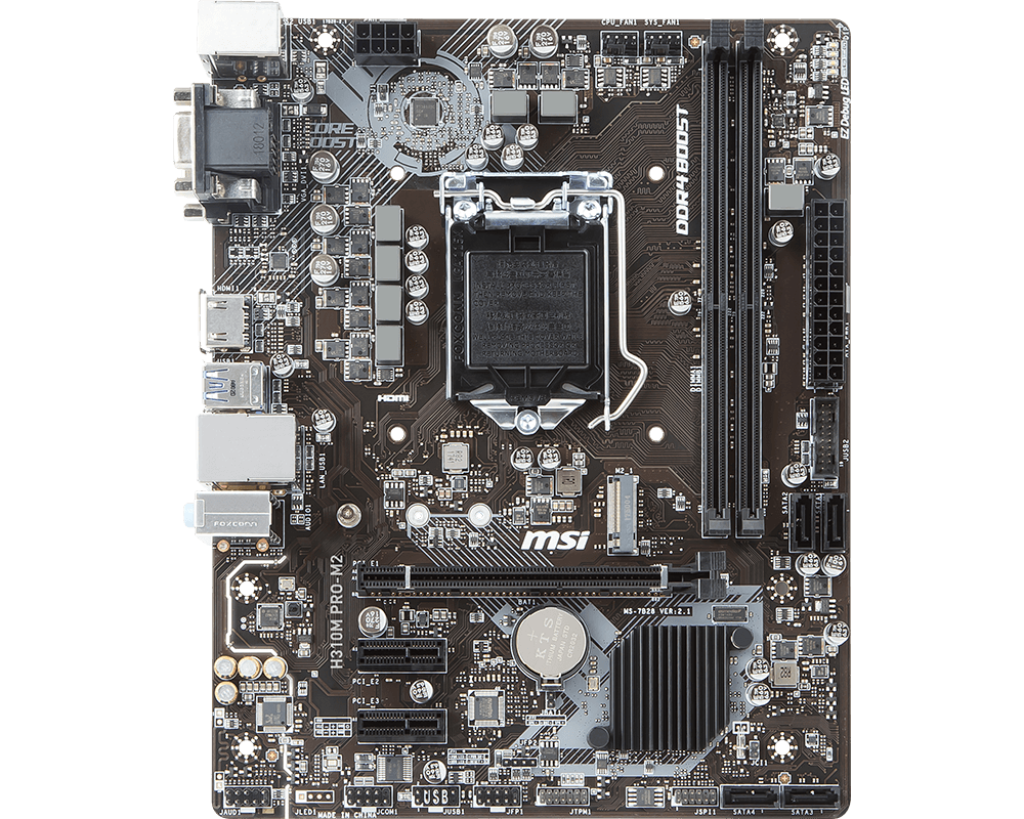

MSI H310M PRO-M2 (Socket 1151)

Processor

Supports 8th Gen Intel^® Core™ processors, Pentium^® Gold and Celeron^® processors for Socket LGA1151

See supported processors

Chipset

Intel^® H310 Chipset

Memory

• 2 x DDR4 memory slots, support up to 32GB
• Supports DDR4 2666/ 2400/ 2133 MHz
• Dual channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

See supported memory

Slots

• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 3.0 x1 slotss

Onboard Graphics

• 1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz¹
• 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz¹
• 1x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz¹

1. Supports up to 2 displays simultaneously

Storage

Intel^® H310 Chipset

• 4 x SATA 6Gb/s ports
• 1 x M.2 slot (Key M)
  • Support up to PCIe 2.0 x4 and SATA 6Gb/s
  • Supports 2242/ 2260 /2280 storage devices

USB

Intel^® H310 Chipset

• 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
• 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)

Audio

Realtek^® ALC887 Codec

• 7.1-Channel High Definition Audio

LAN

• 1 x Intel I219-V Gigabit LAN controller

Internal connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin system fan connector
• 1 x Front panel audio connector
• 1 x Serial port connector
• 2 x Front panel connectors
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper

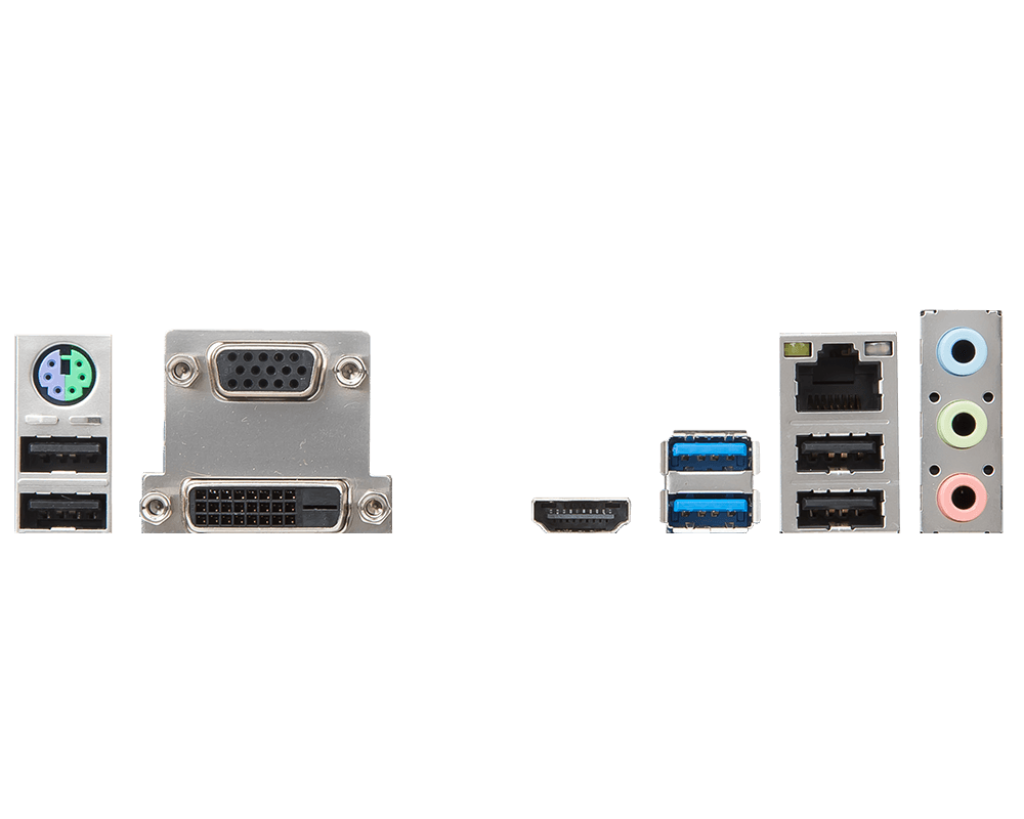

Back panel ports

1. PS/2 Combo Port
2. VGA Port
3. HDMI™ Port
4. USB 3.1 Gen1
5. LAN Port
6. HD Audio Connectors
7. USB 2.0 Port
8. DVI-D Port
9. USB 2.0 Port

Dimensions

• 9.1 in. x 7.3 in. (23.0 cm x 18.5 cm)
• m-ATX Form Factor

Mounting

6 mounting holes

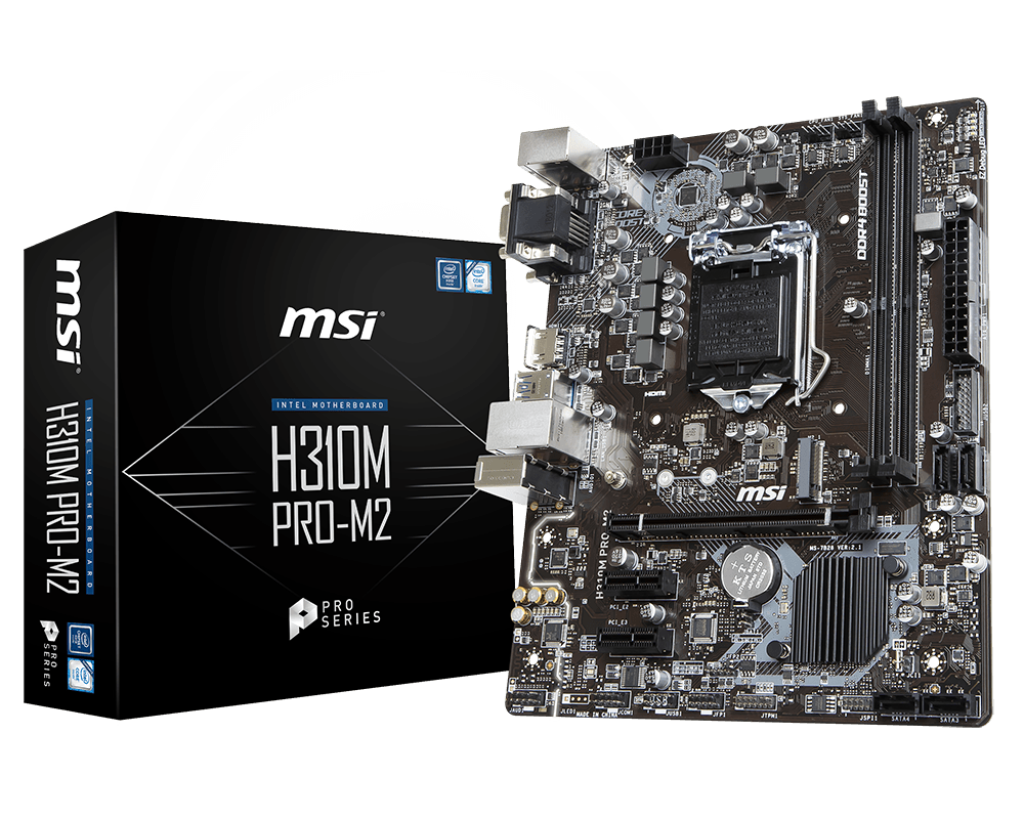

Box content

1. MSI^® does not guarantee the risks or damages caused by changing the cover.
2. These pictures are for reference only and may vary without notice.
