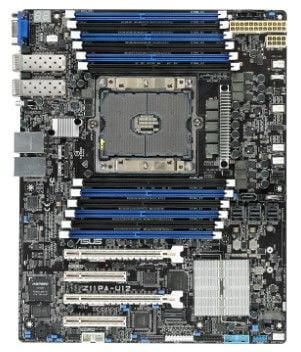

Mainboard Server ASUS Z11PA-U12 10G/2S (Socket 3647)

Processor / System Bus

1 x Socket P (LGA 3647)
1st and 2nd Gen Xeon® Scalable Processor Family
*Refer to support page for more information
UPI (10.4 GT/s)

Core Logic

Intel® Lewisburg PCH C622

Memory

Total Slots : 12 (6-channel per CPU, 12 DIMM per CPU)
Capacity : Maximum up to 384GB RDIMM/Maximum up to 768GB LRDIMM/Maximum up to 1536GB LR-DIMM 3DS
Memory Type :
Single Channel DDR4 2933/2666/2400
Memory Size :
32GB, 16GB, 8GB, 4GB RDIMM
64GB, 32GB LRDIMM
128GB, 64GB LR-DIMM 3DS
* Refer to support page for more information
* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.

Expansion Slots

Total Slot : 4
Slot Location 1 : PCI-E x8 (Gen3 X4 Link)
Slot Location 2 : PCI-E x16 (Gen3 X16 Link)
Slot Location 3 : PCI-E x8 (Gen3 X8 Link)
Slot Location 4 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 3 is occupied

Form Factor

ATX (12"x9.6", 305mm x 244mm)

ASUS Features

ASUS Fan Speed control technology
ASUS Control Center

Storage

SATA Controller :
Intel® C622
13 x SATA3 6Gb/s ports (12 by 3 Mini-SAS Connector)
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 )
Intel^®VROC (For Linux/Windows)
(Support Software RAID )
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
2 * OCulink for U.2

Networking

2 x Intel® I210AT + 1 x Mgmt LAN
1 x Dual 10GbE SFP+with Intel® X722

Graphic

Aspeed AST2500 with 64MB VRAM

On Board I/O

1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
1 x USB 3.0 pin header , Up to 2 Devices
1 x USB 2.0 pin header , Up to 2 Devices
6 x Fan Header , 4pin (3pin/4pin fan dual support)
1 x Serial Port Header
1 x SMBus
1 x Chassis Intruder
2 x Front LAN LED
1 x M.2 Connector , NGFF Type : 2280/2260/2242
1 x VROC Key Header
1 x Q-Code/Port 80 LED

Back I/O Ports

2 x USB 3.0 ports
1 x VGA port
2 x RJ-45 GbE LAN ports
1 x RJ-45 Mgmt LAN port

Rear Switch/LED:
1 x Power switch
1 x Message LED
1 x HDD LED
1 x Location LED
1 x BMC LED
1 x P5V LED

Management Solution

ACC(ASUS Control Center)
Optional ASMB9-iKVM for KVM-over-Internet

Weight

Gift Box (1-in-1)
Net Weight : 0.97 KG
Gross Weight : 1.625 KG

Bulk Pack (10-in-1)
Net Weight : 9.7 KG
Gross Weight : 13.015 KG

Environment

Operation temperature: 10°C ~ 35°C
Non operation temperature: -40°C ~ 70°C
Non operation humidity: 20% ~ 90% (Non condensing)

Accessories

I/O Shield
1 x SATA 6Gb/s cable
1 x Supporting DVD
1 x LGA3647 carrier

Monitoring

CPU Temperature
Fan RPM

Note

* Please refer to www.asus.com for latest momory AVL update
* EEB Mounting Hole Locations
