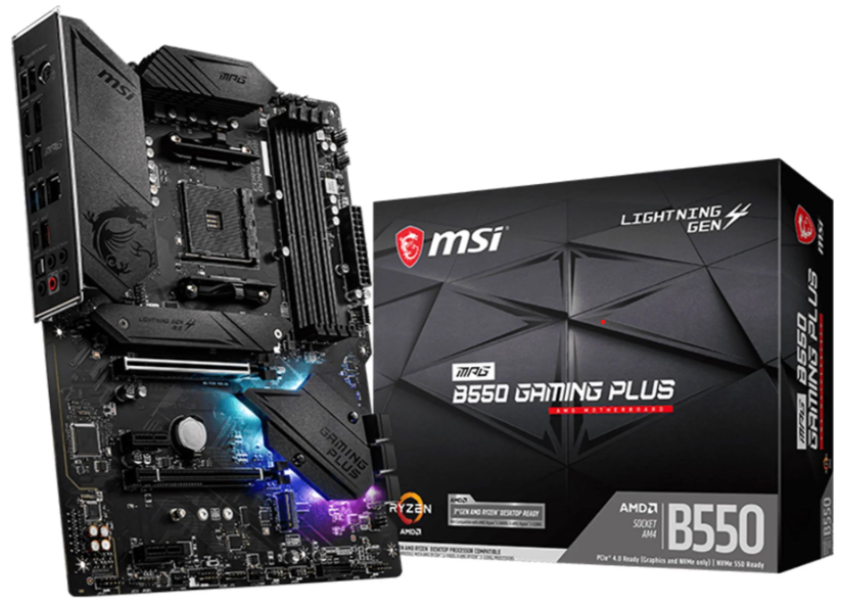

Mainboard MSI MPG B550 Gaming Plus (Socket AM4)

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

CPU hỗ trợ

AM4 socket 3rd Gen AMD Ryzen™ processors, và CPU AMD Ryzen™

tương lai bằng cách nâng cấp BIOS.

Chipset

AMD B550 Chipset

RAM hỗ trợ

4x DDR4 memory slots, hỗ trợ lên tới 128GB

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066

/ 3200 MHz by JEDEC

Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866

/4000 /4133 /4266/  4400+ MHz by A-XMP OC MODE

1DPC 1R max speed 4400 MHZ

1DPC 2R max speed 3866 MHZ

2DPC 1R max speed 4000 MHZ

2DPC 2R max speed 3600 MHZ

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Supports un-buffered memory

Cổng xuất hình onboard

1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz

1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz

Âm Thanh

Realtek® ALC892 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

LAN

1x Realtek® 8111H Gigabit LAN controller

Khe cắm mở rộng

1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)

1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed

2x PCIe 3.0 x1 slots
