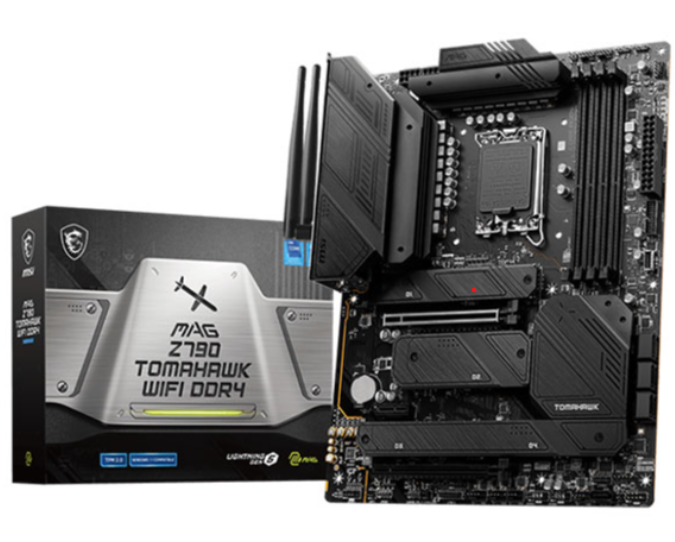

Mainboard MSI MAG Z790 TOMAHAWK WIFI DDR4 (Socket 1700)

Thương hiệu: MSI

Bảo hành: 36 Tháng

7,490,000₫
Sản phẩmBo mạch chủ
Tên HãngMSI
ModelMAG Z790 Tomahawk Wifi DDR4
CPU hỗ trợIntel
ChipsetINTEL Z790
RAM hỗ trợ4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333/5200/5066/5000/4800/4600/4533/4400/4266
4000/3866/3733/3600/3466/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133(By JEDCE & POR)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
Khe cắm mở rộng2x PCI-E x16 slot
1x PCI-E x1 slot
Ổ cứng hỗ trợ4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
7x SATA 6G port
Cổng kết nối (Internal)1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
BACK PANEL1. DisplayPort 1.4
2. USB 3.2 Gen 1 5Gbps Type-A
3. USB 3.2 Gen 2 10Gbps Type-A
4. 2.5G LAN Port,
5. HD Audio Connectors
6. HDMI™ 2.1 Port
7. Clear CMOS Button
8. Flash BIOS Button
9. USB 3.2 Gen 2 10Gbps Type-C
10. USB 3.2 Gen 2x2 20Gbps Type-C
11. Wi-Fi / Bluetooth Antenna
12. Optical S/PDIF OUT
LAN / WirelessIntel® 2.5Gbps LAN
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
Kích cỡATX
243.84mmx304.8mm
