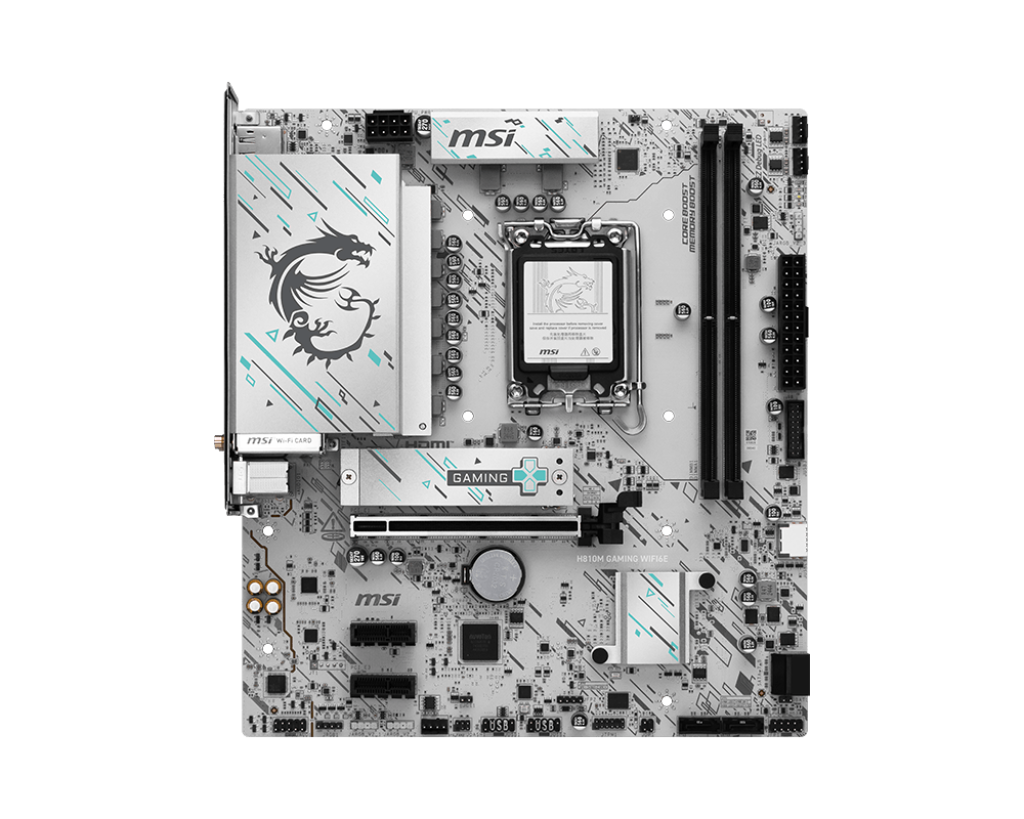

Mainboard MSI H810M GAMING WIFI6E (Socket 1851)

Thương hiệu: MSI

Bảo hành: 36 Tháng Chính Hãng Toàn Quốc

🎁 Đã bao gồm VAT
🎁 Miễn phí lắp ráp cài đặt.
🎁 1 đổi 1 trong tháng đầu tiên, Hỗ trợ mượn Sản phẩm thay thế trong quá trình sử dụng.

0₫
ChipsetINTEL H810
CPUSupports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory2x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s

Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
AudioRealtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
4x SATA 6G

*Please refer to the manual for M.2 SSD heatsink restrictions.
USB4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
LANRealtek® 8126 5Gbps LAN
Internal IO1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTHWi-Fi 6E module
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE4x EZ Debug LED
1x EZ Memory Detection LED

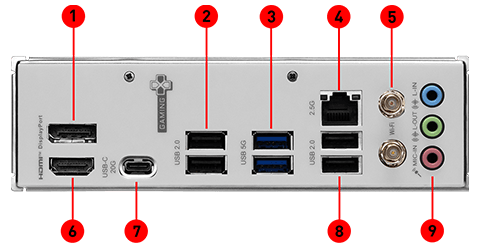

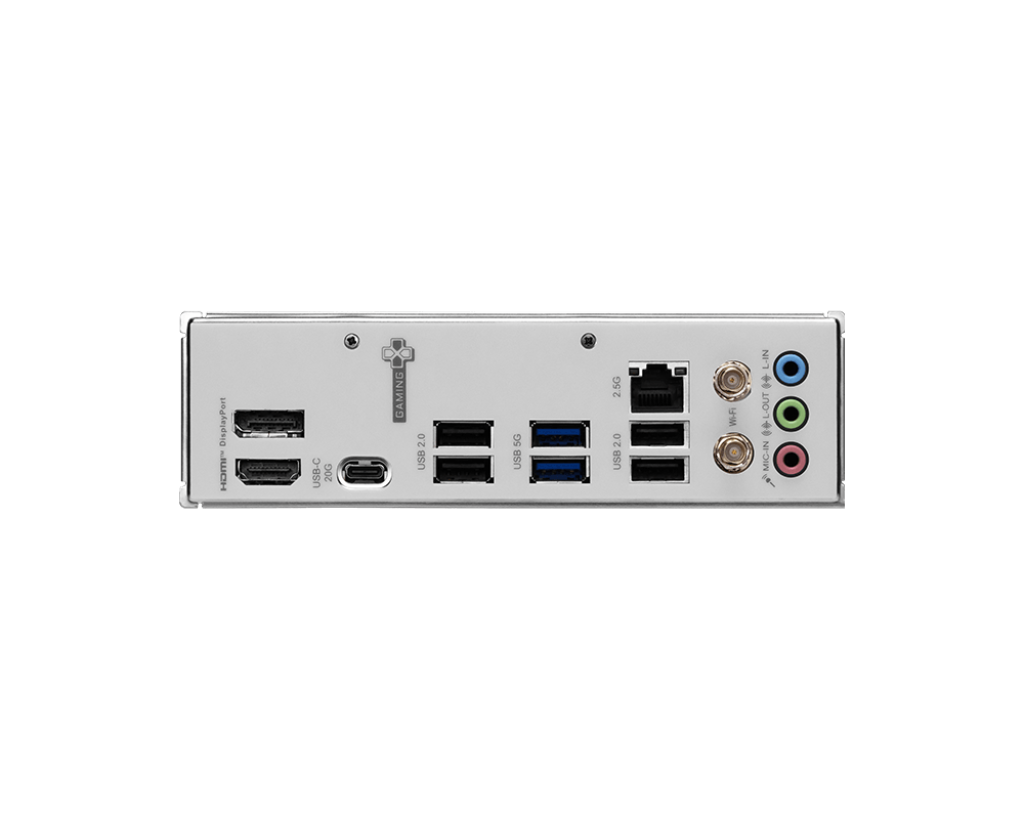

BACK PANEL PORTS
  1. DisplayPort
  2. USB 2.0
  3. USB 5Gbps (Type-A)
  4. 2.5G LAN
  5. Wi-Fi / Bluetooth
  6. HDMI™
  7. USB 20Gbps (Type-C)
  8. USB 2.0
  9. Audio connectors
OPERATING SYSTEMSupport for Windows® 11 64-bit

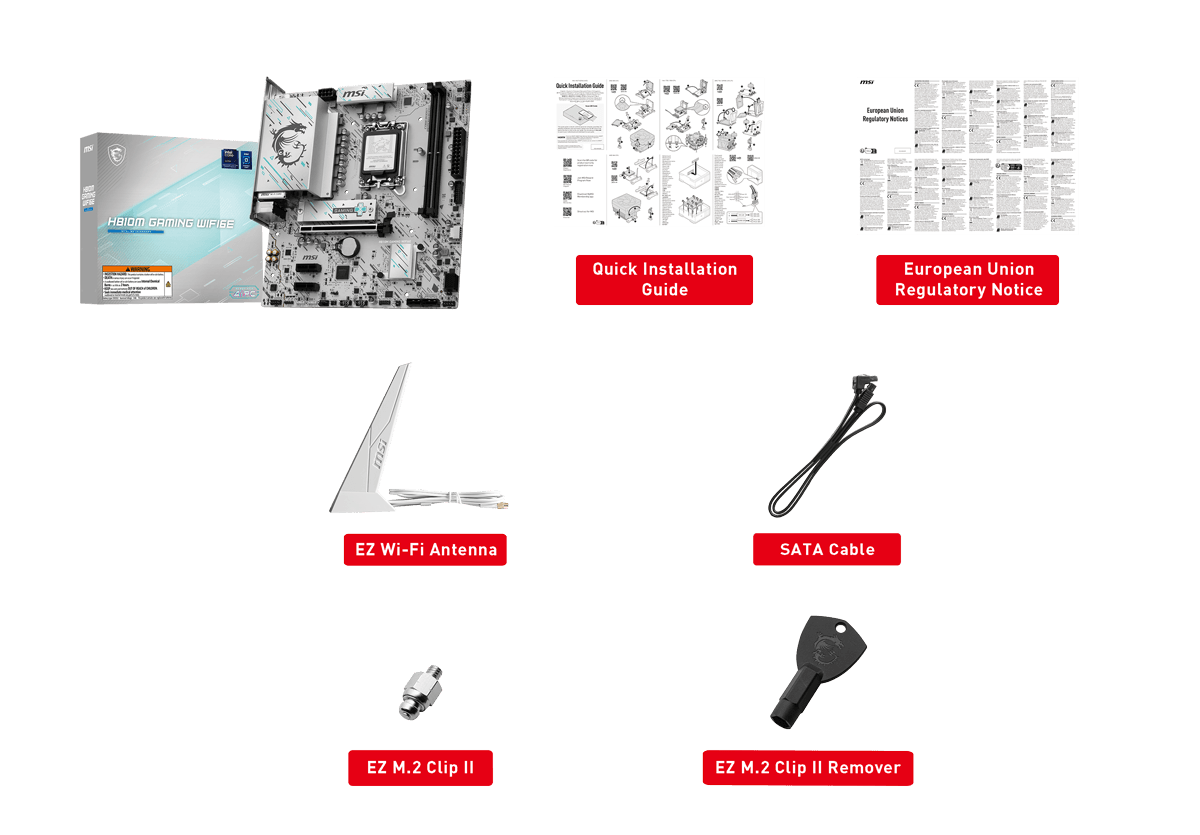

BOX CONTENT
PCB InfomATX
220mmx243.84mm
