Mainboard MSI H510M PLUS II (Socket 1200)

Mainboard MSI H510M PLUS II (Socket 1200)

Thương hiệu: MSI

⭐ Giá Dealer, giá sĩ cho Đại Lý Kỹ thuật Liên hệ tại đây,
⭐ Cam kết giá tốt, Nếu bạn có giá tốt hơn vui lòng Liên hệ tại đây,
⭐ Thu cũ đổi mới, nâng cấp sản phẩm Liên hệ tại đây,

1,790,000₫

  • Thông tin sản phẩm

  • Bảo hành

ChipsetINTEL Z490
CPUSupports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Memory2x DDR4, Maximum Memory Capacity 64GB
Memory Support 2933/ 2666/ 2400/ 2133 MHz
Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU
Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics1x HDMI™
Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
AudioRealtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
USB4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
LANRealtek® 8111H Gigabit LAN
Internal IO1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
LED FEATURE4x EZ Debug LED

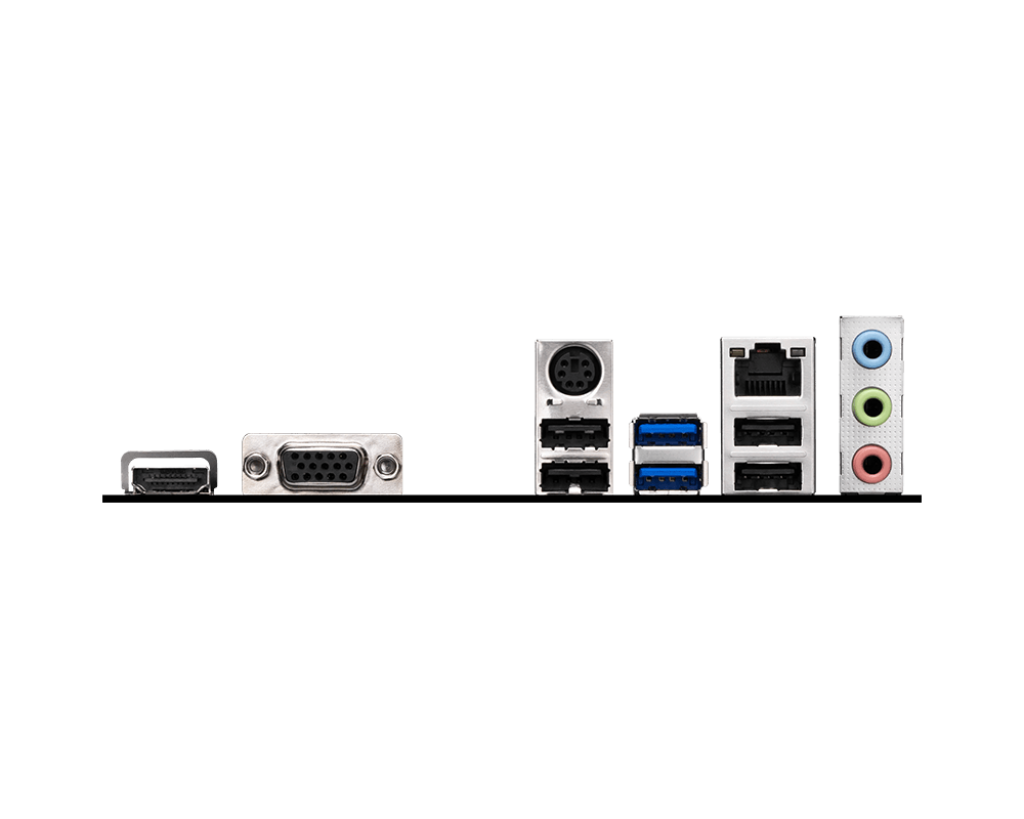

BACK PANEL PORTS
  1. HDMI™
  2. VGA
  3. Keyboard / Mouse
  4. USB 5Gbps Type-A
  5. LAN port
  6. Audio Connectors
  7. USB 2.0
  8. USB 2.0
OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit
BOX CONTENT
PCB InfomATX
202mmx236mm

Bảo hành: _ Tháng
