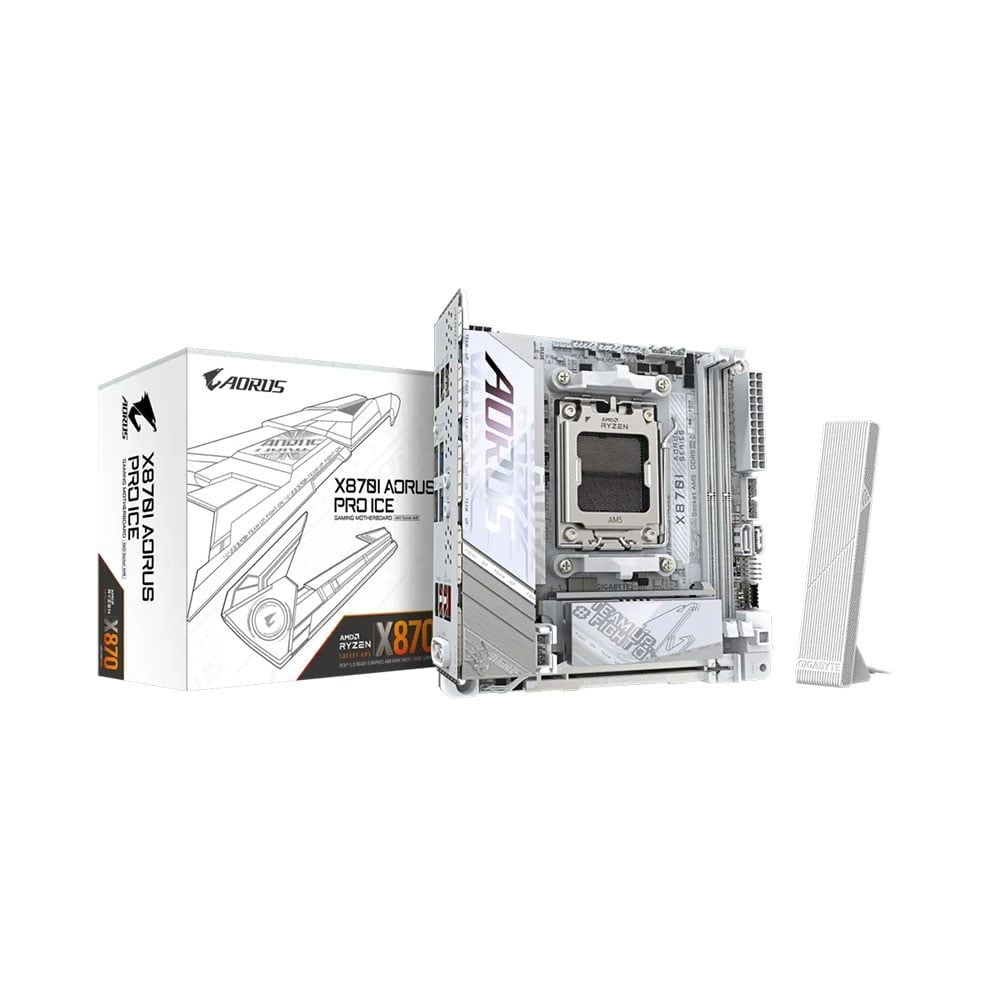

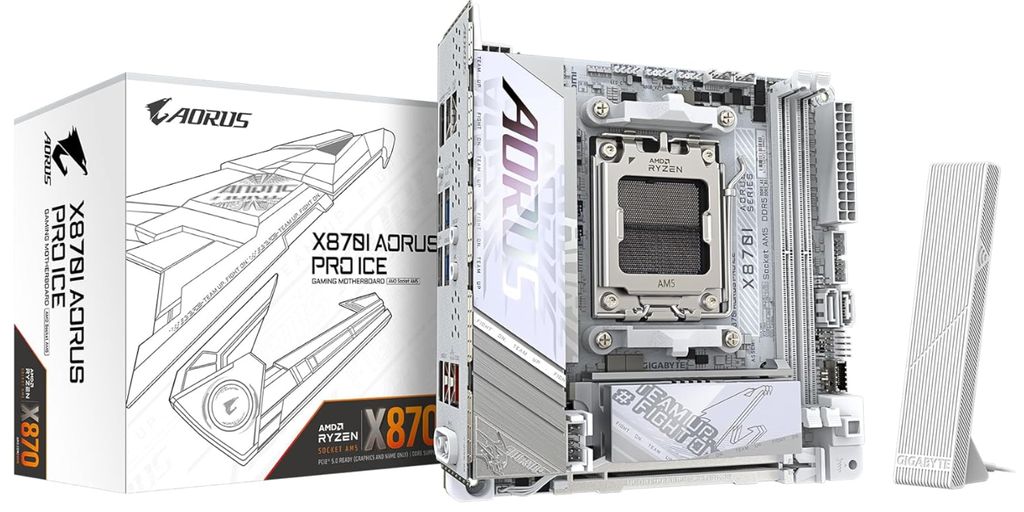

Mainboard GIGABYTE X870I AORUS PRO ICE (Socket AM5)

Sản phẩm

Bo mạch chủ

Tên Hãng

Gigabyte

Model

X870I AORUS PRO ICE

CPU hỗ trợ

AMD

Chipset

AMD X870

RAM hỗ trợ

Support for DDR5 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng

1 x PCI Express x16 slot, integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

Ổ cứng hỗ trợ

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs
2 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

RAID 0 and RAID 1 support for SATA storage devices

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x speaker header
1 x front panel audio header (routed from the adapter card on the rear panel)
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x reset jumper
1 x Clear CMOS jumper
1 x chassis intrusion header

Cổng kết nối (Back Panel)

1 x Q-Flash Plus button
1 x HDMI port (Note)
2 x antenna connectors (2T2R)
1 x USB4® USB Type-C® port (DisplayPort (Note))
1 x USB Type-C® port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x audio jacks
(Note) Actual support may vary by CPU.

LAN / Wireless

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Realtek® Wi-Fi 7 RTL8922AE
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Kích cỡ

Mini-ITX Form Factor; 17.0cm x 17.0cm
