CPU
AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset
AMD X870E
Bộ nhớ
Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Card đồ họa tích hợp
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:* Support for DisplayPort 1.4 version and HDR.
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
* Support for HDMI 1.4 version
Âm thanh
Realtek® ALC1220 CODEC* The back panel line out jack supports DSD audio.
* You can change the functionality of an audio jack using the audio software. To configure
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Qualcomm® Wi-Fi 7 QCNCM865* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Khe cắm mở rộng
1x PCI Express x16 slot (PCIEX16), integrated in the CPU:* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
Giao diện lưu trữ
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:* The M2B_CPU and M2C_CPU connectors will become unavailable when using the
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
USB
CPU+ASMedia USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel
CPU:
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Kết nối I/O bên trong
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x HDMI port (Note)
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
2 x temperature sensor headers
1 x reset jumper
1 x Clear CMOS jumper

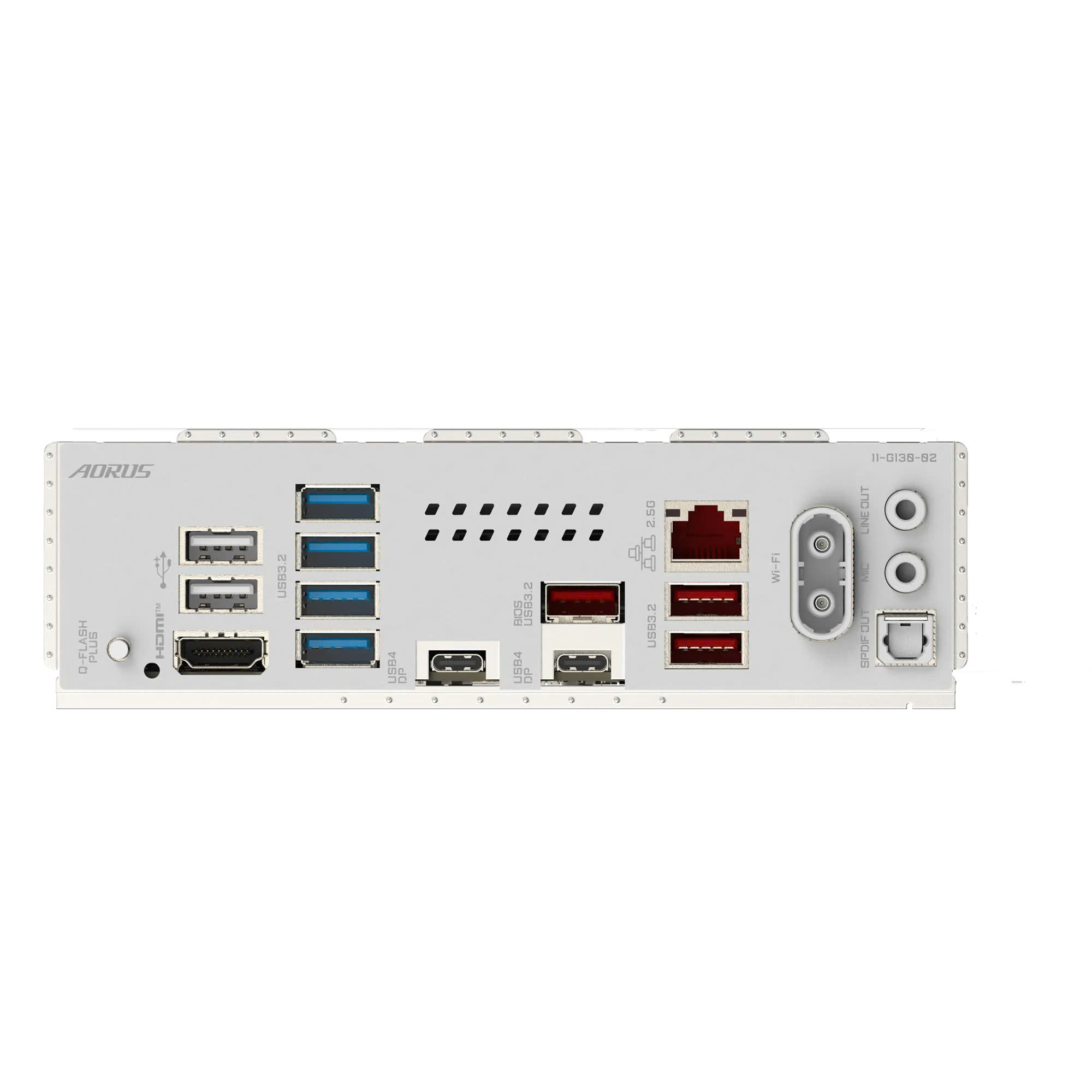

Kết nối bảng phía sau
1 x Q-Flash Plus button
2 x USB 2.0/1.1 ports
1 x HDMI port (Note)
4 x USB 3.2 Gen 1 ports
2 x USB4® USB Type-C® port (DisplayPort (Note))
3 x USB 3.2 Gen 2 Type-A ports (red)
1 x RJ-45 port
2 x antenna connectors (2T2R)
1 x optical S/PDIF Out connector
2 x audio jacks
Điều khiển I/O
iTE® I/O Controller Chip
Theo dõi phần cứng
Voltage detection* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Tính năng duy nhất
Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Gói phần mềm
Norton® Internet Security (OEM version)
LAN bandwidth management software
Hệ điều hành
Support for Windows 11 64-bit
Hệ số khuôn
ATX Form Factor; 30.5cm x 24.4cm
