CPU
LGA1851 socket: Support for Intel ® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset
Intel ® B860 Express Chipset
Bộ nhớ
Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Card đồ họa tích hợp
Integrated Graphics Processor-Intel® HD Graphics support:* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)
* Support for DisplayPort 2.1 version and HDCP 2.3
* Support for DisplayPort 2.1 version and HDCP 2.3
* Support for HDMI 2.1 version and HDCP 2.3.
Âm thanh
Realtek® Audio CODEC* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0)* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations
Khe cắm mở rộng
CPU:* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Giao diện lưu trữ
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector on the back of the motherboard (Socket 3, M key,type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 2 x SATA 6Gb/s connectors
RAID 0 and RAID 1 support for SATA storage devices
USB
CPU:
- 1 x USB4® USB Type-C® port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 2 x USB 2.0/1.1 ports available through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Kết nối I/O bên trong
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
2 x addressable RGB Gen2 LED strip headers
2 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper

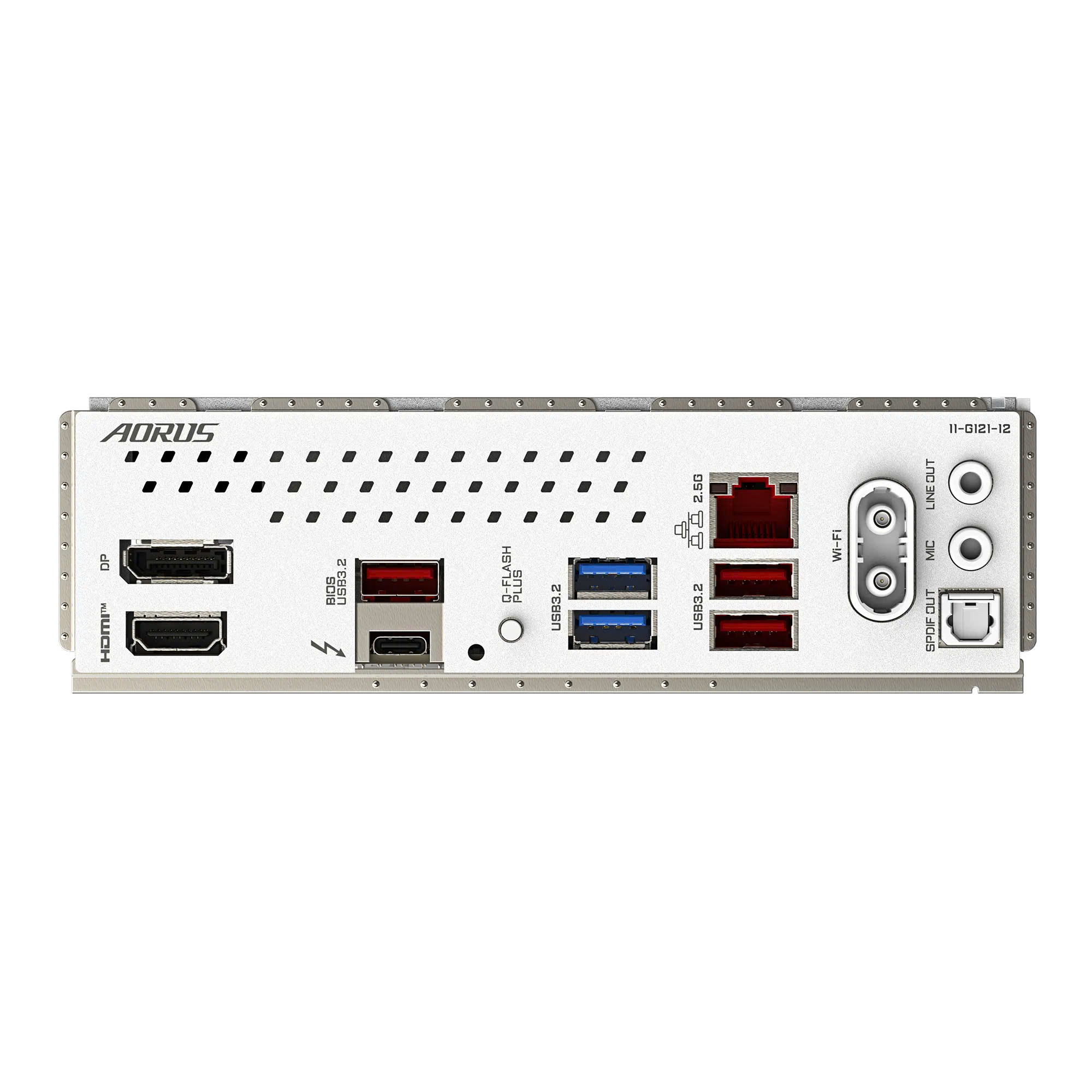

Kết nối bảng phía sau
1 x DisplayPort*
1 x HDMI port*
1 x Intel® Thunderbolt™ 4* connector (USB4® USB Type-C® port)
3 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
* Actual support may vary by CPU.
Điều khiển I/O
iTE® I/O Controller Chip
Theo dõi phần cứng
Voltage detection* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Tính năng duy nhất
Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Gói phần mềm
Norton® Internet Security (OEM version)
LAN bandwidth management software
Hệ điều hành
Support for Windows 11 64-bit
Hệ số khuôn
Mini-ITX Form Factor; 17.0cm x 17.0cm
