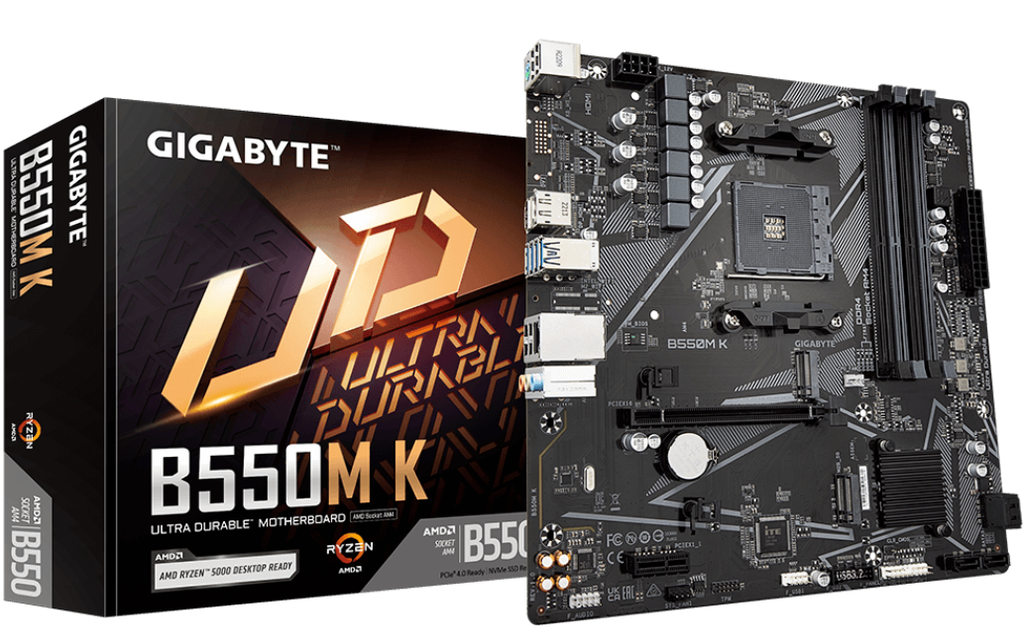

Mainboard Gigabyte B550M K DDR4 (Socket AM4)

Chipset

AMD B550

Socket

AM4

Kích thước Main

M-ATX

Hỗ trợ CPU

AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

Khe cắm RAM

4 khe ram

Loại RAM

DDR4

Bus RAM hỗ trợ

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

Dual channel memory architecture

Hỗ trợ RAM tối đa

128GB

Kết nối mạng

Lan

Thông số (Lan/Wireless)

Khe cắm trong

1 x PCI Express x16 slot, running at x16

2 x PCI Express x1 slot

Khe cắm mở rộng

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs4 x SATA 6Gb/s connectors

Cổng giao tiếp ngoài

1 x PS/2 keyboard/mouse port

1 x DisplayPort

1 x HDMI port

4 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks
