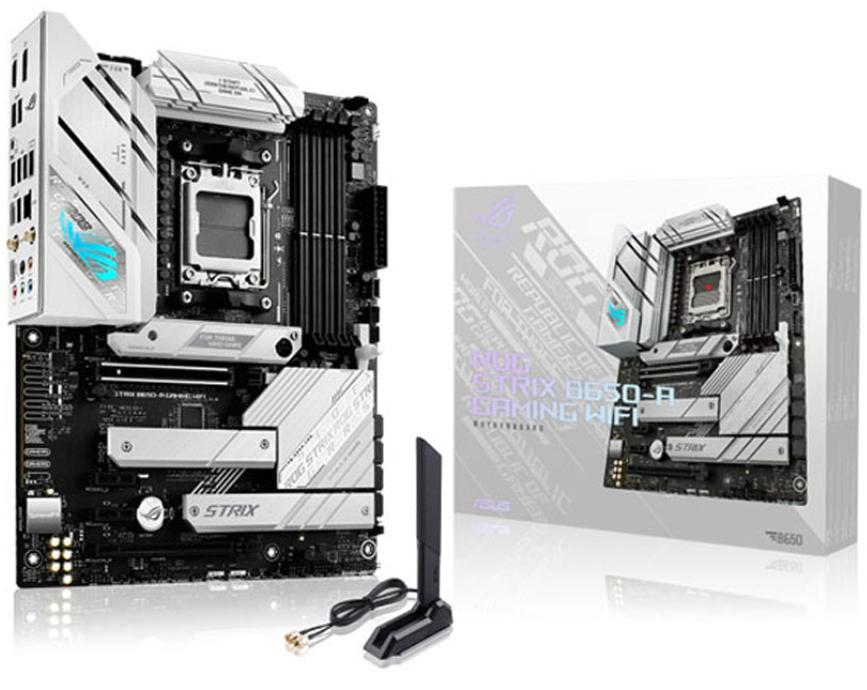

Mainboard Asus ROG STRIX B650-A GAMING WIFI DDR5 (Socket AM5)

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

ROG STRIX B650-A GAMING WIFI

CPU hỗ trợ

AMD

Chipset

AMD B650

RAM hỗ trợ

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory

Khe cắm mở rộng

AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)*
2 x PCIe 4.0/3.0 x1 slots

Ổ cứng hỗ trợ

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s port

Cổng kết nối (Internal

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C^®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™header
1 x COM_DEBUGheader

Cổng kết nối (Back Panel)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C^®)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI^® port
1 x Wi-Fi Module
1 x Intel^® 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™  button

LAN / Wireless

Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

1 x Intel^® 2.5Gb Ethernet ASUS LANGuard

Kích cỡ

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
