Mainboard ASROCK B860M Lightning WiFi (Socket 1851)

Thương hiệu: ASROCK

Bảo Hành Chính Hãng Toàn Quốc 36 tháng

🎁 Sản phẩm mới 100%
🎁 Đã bao gồm VAT
🎁 Miễn phí lắp ráp và cài đặt.

6,290,000₫ 6,990,000₫
  • Unique Feature

    Superb Productivity
    - PCIe Gen5 (Graphics, M.2)
    - Dual Channel DDR5
    - Thunderbolt™ 4 Type-C Port (40 Gb/s)
    Rock-Solid Durability
    - Server-Grade Low-Loss PCB
    - 12+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA with Enlarged Heatsink Armor
    - Memory OC Shield
    - Flexible Integrated I/O Shield
    - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
    Ultrafast Gaming
    - Killer 2.5G LAN, 802.11axe Wi-Fi 6E Module
    - Killer DoubleShot™ Pro
    EZ Update
    - BIOS Flashback Button
    - ASRock Auto Driver Installer
    EZ Troubleshooter
    ASRock Post Status Checker

  • CPU

    - Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
    - Supports Intel® Hybrid Technology
    - Supports Intel® Turbo Boost Max 3.0 Technology
    - Supports Intel® Thermal Velocity Boost (TVB)
    - Supports Intel® Adaptive Boost Technology (ABT)
    - Integrated NPU for dedicated AI acceleration

  • Chipset

    - Intel® B860

  • Bộ nhớ RAM

    - Dual Channel DDR5 Memory Technology
    - 4 x DDR5 DIMM Slots
    - Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)*
    - Supports Clocked Unbuffered DIMM (CUDIMM)
    - Max. capacity of system memory: 256GB
    - Supports Intel® Extreme Memory Profile (XMP) 3.0x



    * 1DPC 1R Up to 8666+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively. 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.

  • BIOS

    - 256Mb AMI UEFI Legal BIOS with GUI support

  • Card đồ họa

    - Intel® Xe LPG Graphics Architecture
    - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
    - 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz



    * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    ** Supports two 4K displays or one 8K display
    Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports. If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics.

  • Card âm thanh

    - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
    - Impedance Sensing on Rear Out port
    - Individual PCB Layers for R/L Audio Channel
    - Nahimic Audio

  • LAN

    - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    - Killer E3100G
    - Supports Killer LAN Software
    - Supports Killer DoubleShot™ Pro

  • LAN không dây

    - 802.11axe Wi-Fi 6E Module
    - Supports IEEE 802.11a/b/g/n/ac/ax/axe
    - Supports Dual-Band 2x2 160MHz with extended 6GHz band* support
    - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
    - Supports Bluetooth 5.3
    - Supports MU-MIMO
    - Supports Killer LAN Software
    - Supports Killer DoubleShot™ Pro



    *The Wi-Fi 6E module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
    A 6GHz compatible router is required for 6E functionality.

  • Khe cắm

    CPU:
    - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)



    * Supports NVMe SSD as boot disks

  • Kho tiền

    CPU:
    - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
    Chipset:
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 4 x SATA3 6.0 Gb/s Connectors



    * Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks

  • RAID

    - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

  • USB

    CPU:
    - 1 x Thunderbolt™ 4 Type-C (Rear)
    Chipset:
    - 1 x USB 3.2 Gen2 Type-C (Front)
    - 2 x USB 3.2 Gen2 Type-A (Rear)
    - 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
    - 6 x USB 2.0 (2 Rear, 4 Front)



    * All USB ports support ESD Protection

  • Cổng kết nối

    - 1 x Thermistor Cable Header
    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 1 x RGB LED Header*
    - 3 x Addressable LED Headers**
    - 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
    - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
    - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
    - 1 x 24 pin ATX Power Connector
    - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)



    * Supports in total up to 12V/3A, 36W LED Strip
    ** Support in total up to 5V/3A, 15W LED Strip
    *** CPU_FAN1 supports the fan power up to 1A (12W).
    CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W).
    CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

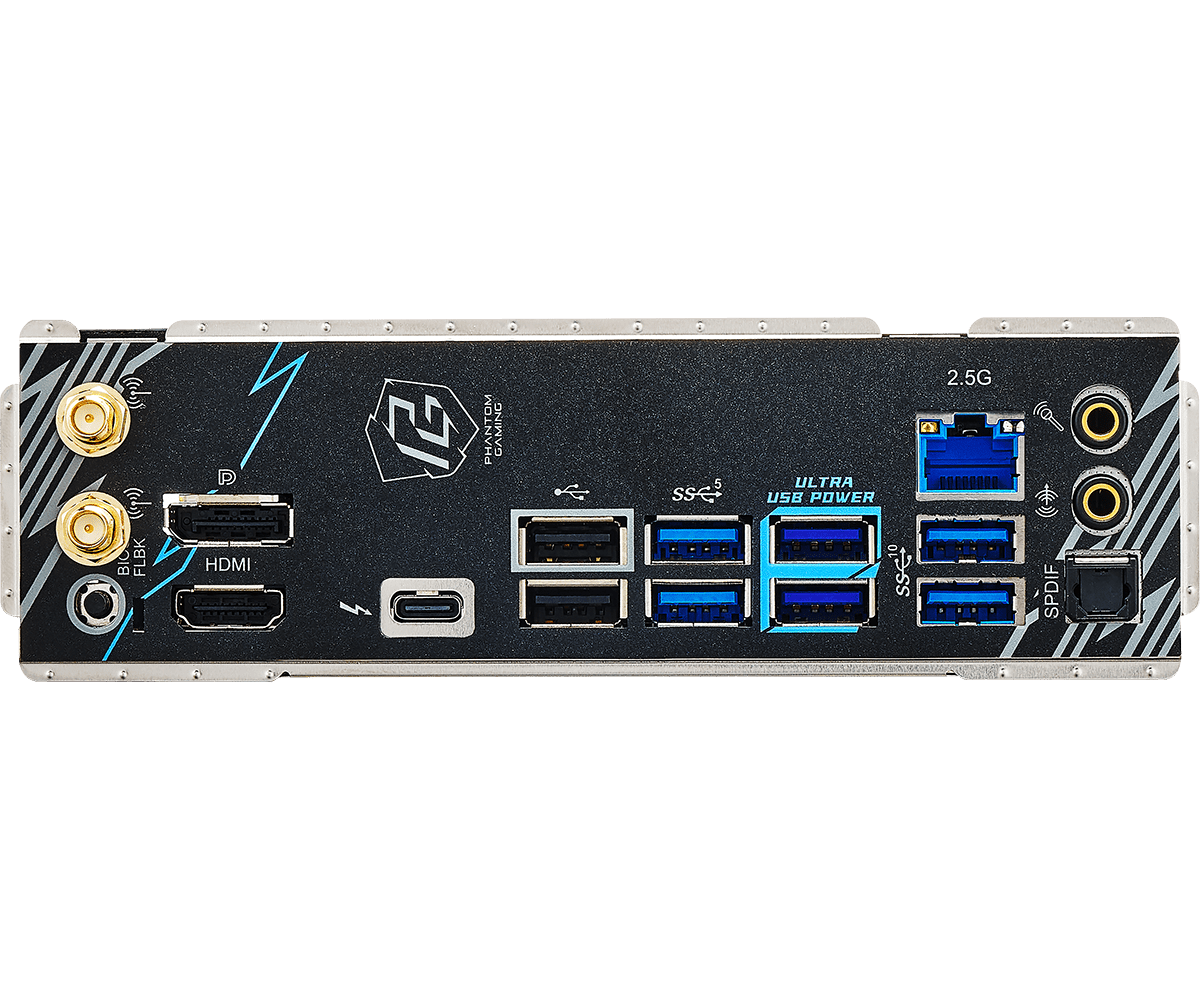

  • Bảng điều khiển Input/Output phía sau

    - 2 x Antenna Ports
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x Optical SPDIF Out Port
    - 1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*
    - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
    - 4 x USB 3.2 Gen1 Ports**
    - 2 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - 1 x BIOS Flashback Button
    - 1 x Line Out Jack (Gold Audio Jack)
    - 1 x Microphone Input Jack (Gold Audio Jack)



    * Supports USB PD 3.0 up to 5V@3A (15W) charging
    ** USB32_34 support Ultra USB Power.

  • Phần mềm và UEFI

    Software
    - ASRock Motherboard Utility (Phantom Gaming Tuning)
    - Killer Control Center
    - ASRock Polychrome SYNC*
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash



    *These utilities can be downloaded from ASRock Live Update & APP Shop.

  • Phụ kiện

    - 2 x SATA Data Cables
    - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
    - 1 x Thermistor Cable
    - 1 x Screw for M.2 Socket

  • Chuẩn vỏ máy

    - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
    - 2oz Copper PCB

  • Hệ điều hành

    - Microsoft Windows® 11 64-bit

  • Chứng nhận

    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
