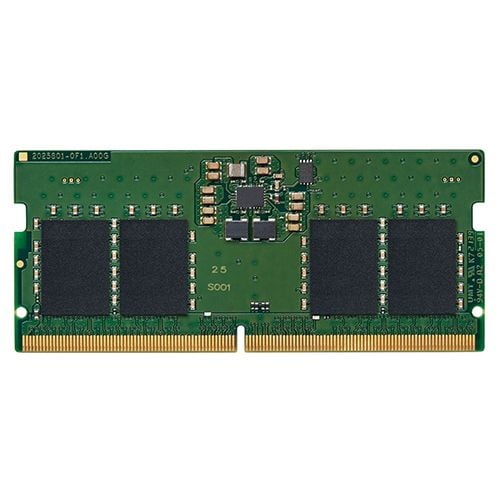

KINGSTON 8GB DDR5 4800MHz/5600MHz (Laptop)

KVR48S40BS6-8

8GB 1Rx16 1G x 64-Bit
PC5-4800/5600 CL40 262-Pin SODIMM Kit

SPECIFICATIONS

CL(IDD)
Row Cycle Time (tRCmin)

Refresh to Active/Refresh Command Time (tRFCmin)

Row Active Time (tRASmin) UL Rating
Operating Temperature Storage Temperature

40 cycles 48ns(min.) 295ns(min.)

32ns(min.)
94 V - 0
0o C to +85o C -55o C to +100o C

FEATURES

• Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• PCB: Height 1.18” (30.00mm)

• RoHS Compliant and Halogen-Free
