GIGABYTE Z890 UD WIFI6E DDR5 (Type-C, DP)

Thương hiệu: GIGABYTE

Bảo hành: 36 Tháng

7,290,000₫
  • CPU

    LGA1851 socket: Support for Intel® Core™ Ultra Processors
    L3 cache varies with CPU
    * Please refer to "CPU Support List" for more information.

  • Chipset

    Intel® Z890 Express Chipset

  • Memory

    Support for DDR5 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

  • Onboard Graphics

    Integrated Graphics Processor-Intel® HD Graphics support:
    - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz

    * Support for DisplayPort 2.1 version


    - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

    * Support for DisplayPort 2.1 version


    (Graphics specifications may vary depending on CPU support.)
  • Audio

    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  • LAN

    Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

  • Wireless Communication module

    Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)
    - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.3
    - Support for 11ax 160MHz wireless standard
    Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
    - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.3
    - Support for 11ax 160MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)

  • Expansion Slots

    CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


    Chipset:
    - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
  • Storage Interface

    CPU:
    - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
    - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
    Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
    - 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

  • USB

    CPU:
    - 1 x USB4® USB Type-C® port on the back panel
    Chipset:
    - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
    - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+2 USB 2.0 Hubs:
    - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

  • Internal I/O Connectors

    1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    2 x system fan headers
    2 x system fan/water cooling pump headers
    3 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    3 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    2 x Thunderbolt™ add-in card connectors
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
    1 x serial port header
    1 x power button
    1 x reset button
    1 x Q-Flash Plus button
    1 x reset jumper
    1 x Clear CMOS jumper

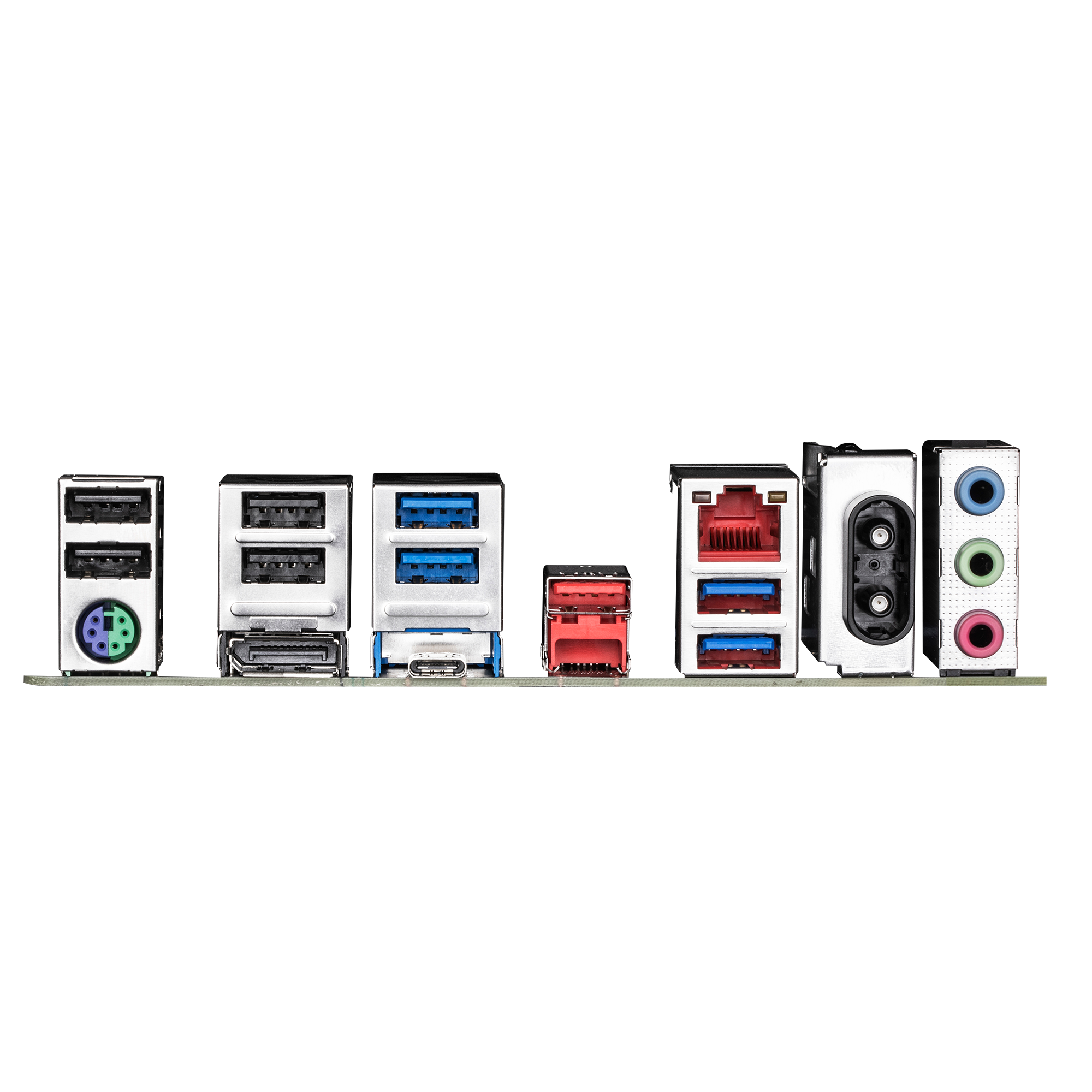

  • Back Panel Connectors

    4 x USB 2.0/1.1 ports
    1 x PS/2 keyboard/mouse port
    1 x DisplayPort (Note)
    4 x USB 3.2 Gen 1 ports
    1 x USB4® USB Type-C® port (DisplayPort (Note))
    1 x USB 3.2 Gen 2 Type-A port (red)
    1 x RJ-45 port
    2 x SMA antenna connectors (2T2R)
    3 x audio jacks

    (Note) Actual support may vary by CPU.

  • I/O Controller

    iTE® I/O Controller Chip

  • H/W Monitoring

    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control

    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

  • BIOS

    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Unique Features

    Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup
  • Bundled Software

    Norton® Internet Security (OEM version)
    LAN bandwidth management software

  • Operating System

    Support for Windows 11 64-bit

  • Form Factor

    ATX Form Factor; 30.5cm x 24.4cm
