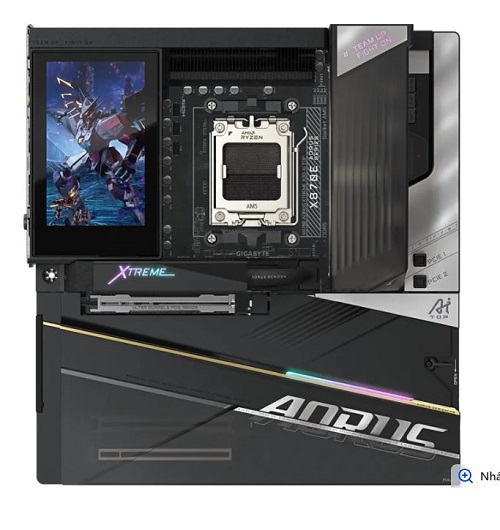

GIGABYTE X870E AORUS XTREME X3D AI TOP

CPU

AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)

Chipset

AMD X870E

Bộ nhớ

Support for 9000(O.C) /8800(O.C) /8600(O.C) /8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Card đồ họa tích hợp

* Support for DisplayPort 1.4 version and HDR.

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.

Âm thanh

* The line out jack and the optical S/PDIF out connector can only be used one at a time.

LAN

2 x Realtek® 10GbE LAN chips (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
***Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.

Khe cắm mở rộng

* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
* The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

* The PCIEX8 slot becomes unavailable when anAMD Ryzen™ 8000 Series-Phoenix 1/ Phoenix 2 processor is used.

* The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.

Giao diện lưu trữ

* The M2B_CPU connector shares bandwidth with the ASMedia USB4® controller.When a device is installed in theM2B_CPU connector, both theM2B_CPU connector and the USB4 ports supported by the ASMedia USB4® controller operate at up to x2 bandwidth. When using an AMD Ryzen™ 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 ports supported by the ASMedia USB4® controller operate at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable.

* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

USB

* For precautions regarding the fast charging function, refer to "USB Type-C® Header" in Chapter 2-8, "Internal Connectors."

Kết nối I/O bên trong

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x PCIe power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan extension cable header (can extend three system fan headers through one cable)
1 x system fan/water cooling pump extension cable header (can extend three system fan/water cooling pump headers through one cable)
1 x integrated extension cable header for addressable RGB Gen2 LED strips and RGB LED strips (can extend four addressable RGB Gen2 LED strip headers and one RGB LED strip header through one cable)
2 x SATA 6Gb/s connectors
5 x M.2 Socket 3 connectors
1 x front panel header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB Type-C® port (DisplayPort (Note)), with USB 2.0 support
2 x USB 3.2 Gen 1 headers
1 x integrated extension cable header for system fan/water cooling pump and USB 2.0/1.1 headers (can extend one system fan/water cooling pump header and two USB 2.0/1.1 headers through one cable)
2 x temperature sensor headers
1 x power button
1 x reset button
1 x Clear CMOS button

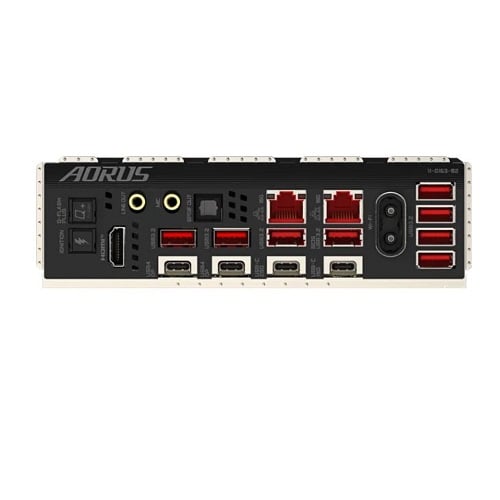

Kết nối bảng phía sau

1 x Q-Flash Plus button
1 x OC Ignition button
1 x HDMI port (Note)
2 x USB4® USB Type-C® ports (DisplayPorts (Note))
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
8 x USB 3.2 Gen 2 Type-A ports (red)
2 x RJ-45 ports
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector

(Note) Actual support may vary by CPU.

Điều khiển I/O

iTE® I/O Controller Chip

Theo dõi phần cứng

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

1 x 512 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Tính năng duy nhất

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Gói phần mềm

Norton® Internet Security (OEM version)

Hệ điều hành

Support for Windows 11 64-bit
(Go to GIGABYTE's website for operating system support information.)

Hệ số khuôn

E-ATX Form Factor; 30.5cm x 28.5cm
