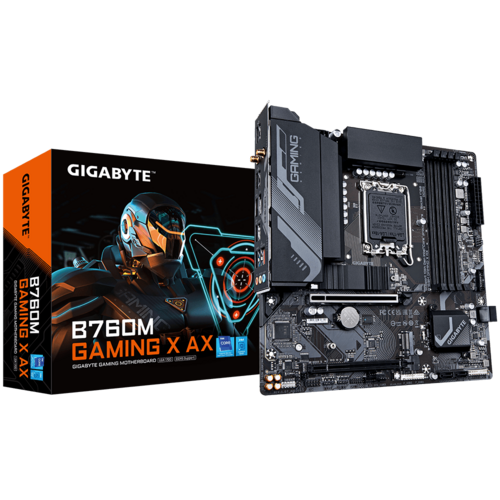

Mainboard GIGABYTE B760M GAMING X DDR5 (Socket 1700)

Thương hiệu: GIGABYTE

Bảo Hành Chính Hãng Toàn Quốc: 36 tháng.

🎁 Đã bao gồm VAT
🎁 Miễn phí lắp ráp cài đặt.
🎁 1 đổi 1 trong tháng đầu tiên, Hỗ trợ mượn Sản phẩm thay thế trong quá trình sử dụng.

4,250,000₫
Tiêu đề:
  • CPU

    1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset

    1. Intel® B760 Express Chipset
  • Bộ nhớ

    1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
    2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
  • Card đồ họa tích hợp

    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version and HDCP 2.3
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.0 version and HDCP 2.3.
    (Graphics specifications may vary depending on CPU support.)
  • Âm thanh

    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    4. Support for S/PDIF Out
  • LAN

    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module

    Intel® Wi-Fi 6E AX210 (PCB rev. 1.0)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Intel® Wi-Fi 6E AX211 (PCB rev. 1.1)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.2)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    (Actual data rate may vary depending on environment and equipment.)
  • Khe cắm mở rộng

    CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    Chipset:
    1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
  • Giao diện lưu trữ

    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    2. 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  • USB

    Chipset:
    1. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
    2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    3. 1 x USB 2.0/1.1 port on the back panel
    Chipset+2 USB 2.0 Hubs:
    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Kết nối I/O bên trong

    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 3 x system fan headers
    5. 2 x addressable LED strip headers
    6. 2 x RGB LED strip headers
    7. 2 x M.2 Socket 3 connectors
    8. 4 x SATA 6Gb/s connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x S/PDIF Out header
    12. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
    13. 1 x USB 3.2 Gen 1 header
    14. 2 x USB 2.0/1.1 headers
    15. 2 x Thunderbolt™ add-in card connectors
    16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    17. 1 x serial port header
    18. 1 x Q-Flash Plus button
    19. 1 x reset jumper
    20. 1 x Clear CMOS jumper

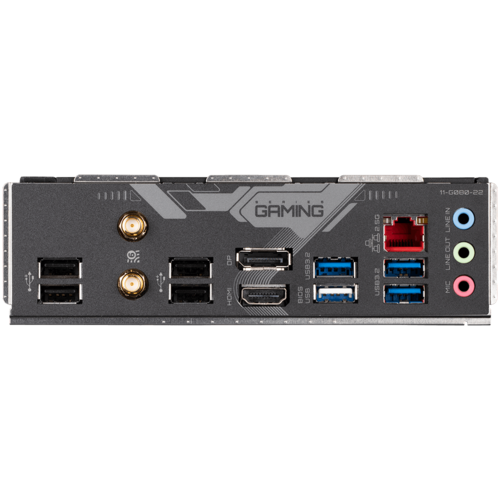

  • Kết nối bảng phía sau

    1. 3 x USB 3.2 Gen 1 ports
    2. 5 x USB 2.0/1.1 ports
    3. 2 x SMA antenna connectors (2T2R)
    4. 1 x HDMI 2.0 port
    5. 1 x DisplayPort
    6. 1 x RJ-45 port
    7. 3 x audio jacks
  • Điều khiển I/O

    1. iTE® I/O Controller Chip
  • Theo dõi phần cứng

    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the fan you install.
  • BIOS

    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Tính năng duy nhất

    1. Support for GIGABYTE Control Center (GCC)
      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Support for Q-Flash
    3. Support for Q-Flash Plus
  • Gói phần mềm

    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Hệ điều hành

    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Hệ số khuôn

    1. Micro ATX Form Factor; 24.4cm x 24.4cm
