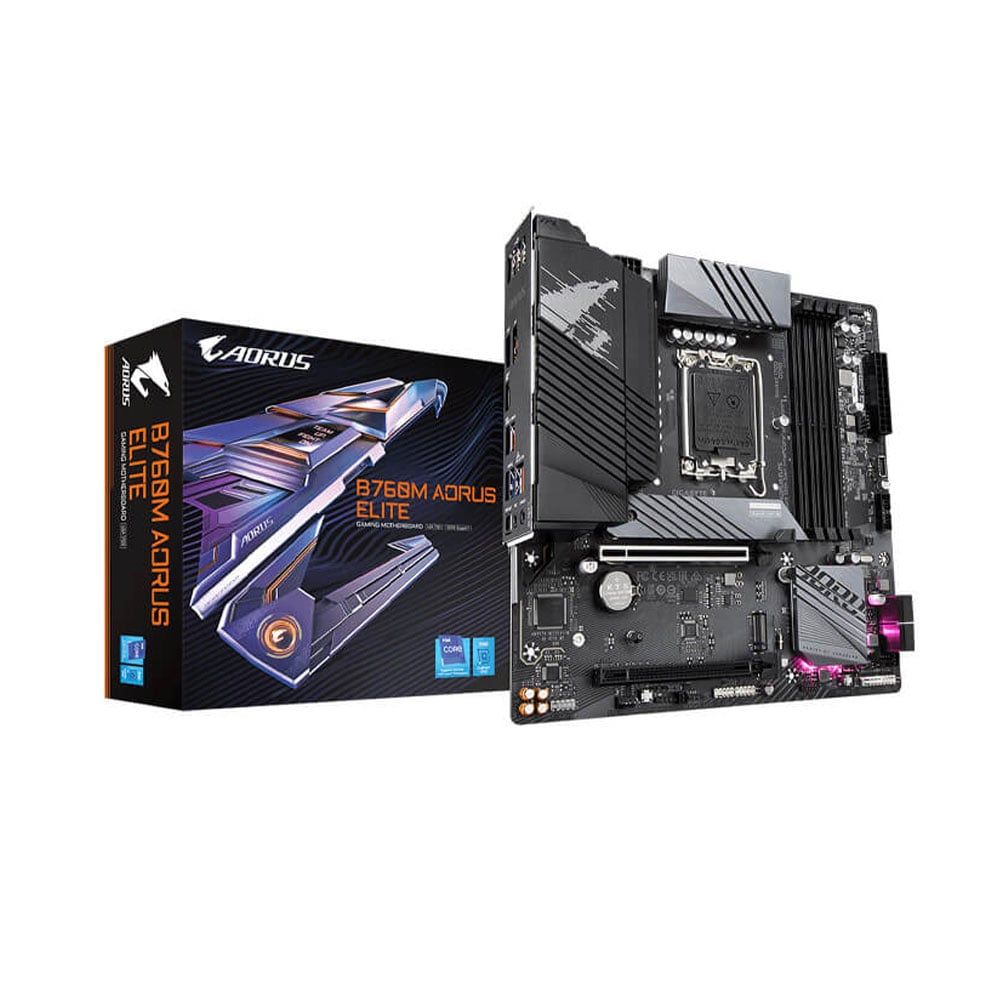

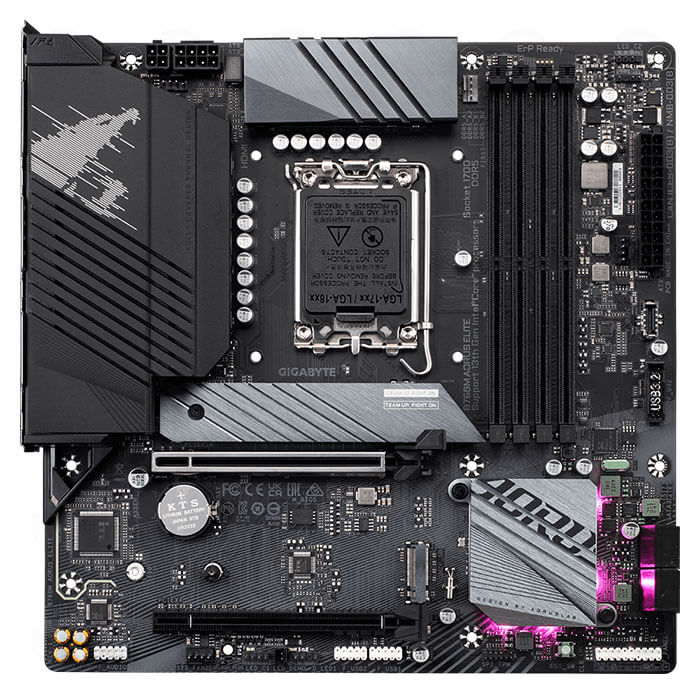

Mainboard GIGABYTE B760M AORUS ELITE DDR5 (Socket 1700)

Sản phẩm

Bo mạch chủ

Tên Hãng

Gigabyte

Model

B760M AORUS ELITE DDR5

CPU hỗ trợ

Intel

Chipset

B760

RAM hỗ trợ

Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s

4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Khe cắm mở rộng

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Ổ cứng hỗ trợ

CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumperr

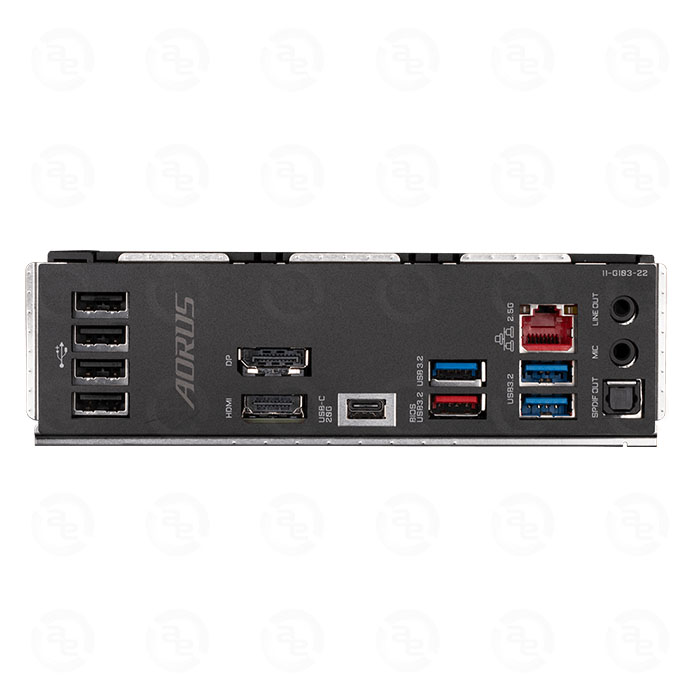

Cổng kết nối (Back Panel)

1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

LAN / Wireless

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Kích cỡ

Micro ATX Form Factor; 24.4cm x 24.4cm
