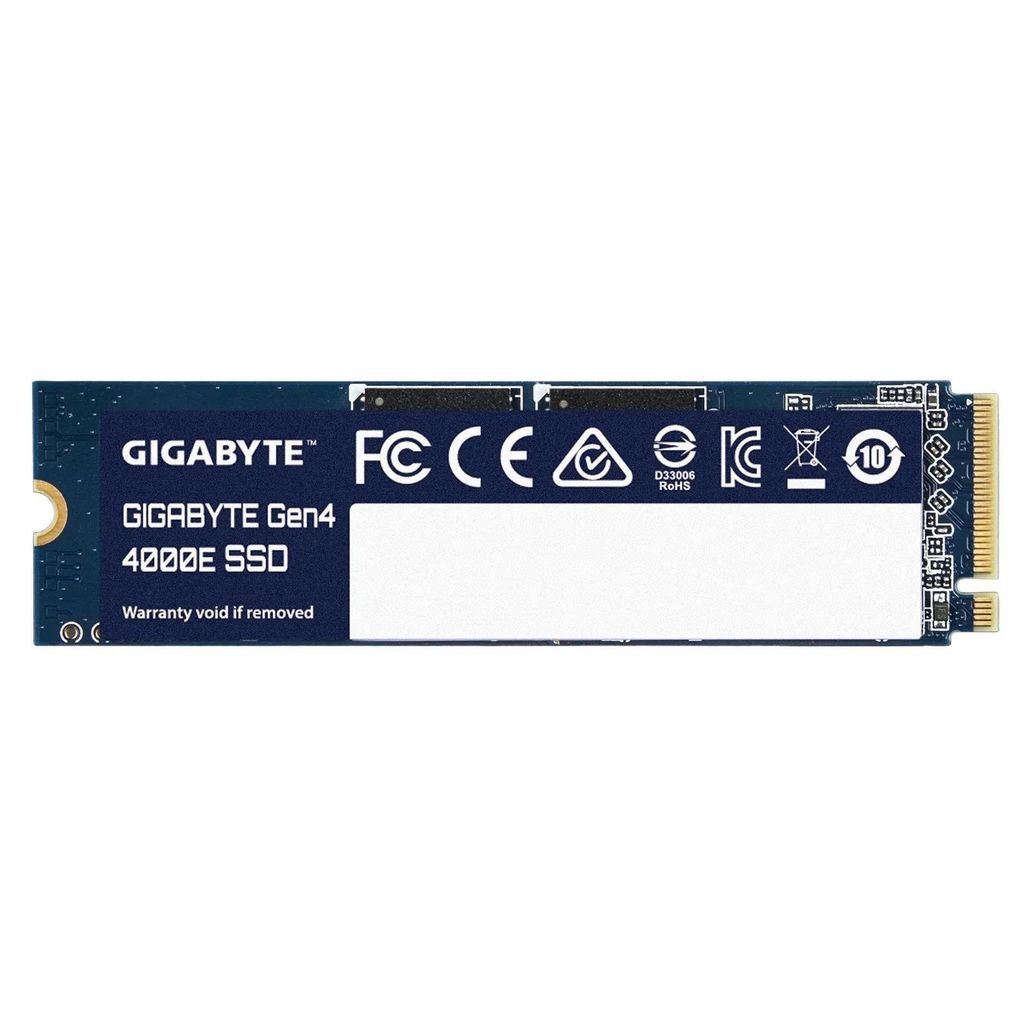

GIGABYTE 4000E 500GB M.2 2280 PCIe NVMe (Gen 4x4)

Interface

PCI Express 4.0x4, NVMe 1.4

Form Factor

M.2 2280

Total Capacity

500GB

External DDR Cache

N/A

Sequential Read speed

Up to 3600 MB/s

Sequential Write speed

Up to 3000MB/s

Dimension

22 x 2.3 x 80 mm

Mean time between failure (MTBF)

1.5 million hours

Max. Operating Power

Read: 4300mW
Write: 4400mW

Power Consumption (Idle, PS3)

40mW

Power Consumption(PS4, L1.2)

5mW

Temperature (Operating)

0°C to 70°C

Temperature (Storage)

-40°C to 85°C

Warranty

1. Limited 3 years or 300TBW.
2. Limited warranty based on 3 years or 300TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
3. When the usage of an NVME SSD as indicated by the ""Percentage Used"" (SMART ID: 05) in SMART page of ""GIGABYTE SSD toolbox"" reaches 100 means out of warranty. (A new unused product will show the number of 0)

Note

• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
• Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
• Speeds based on internal testing. Actual performance may vary.
• 1GB = 1 billion bytes. Actual useable capacity may vary.
