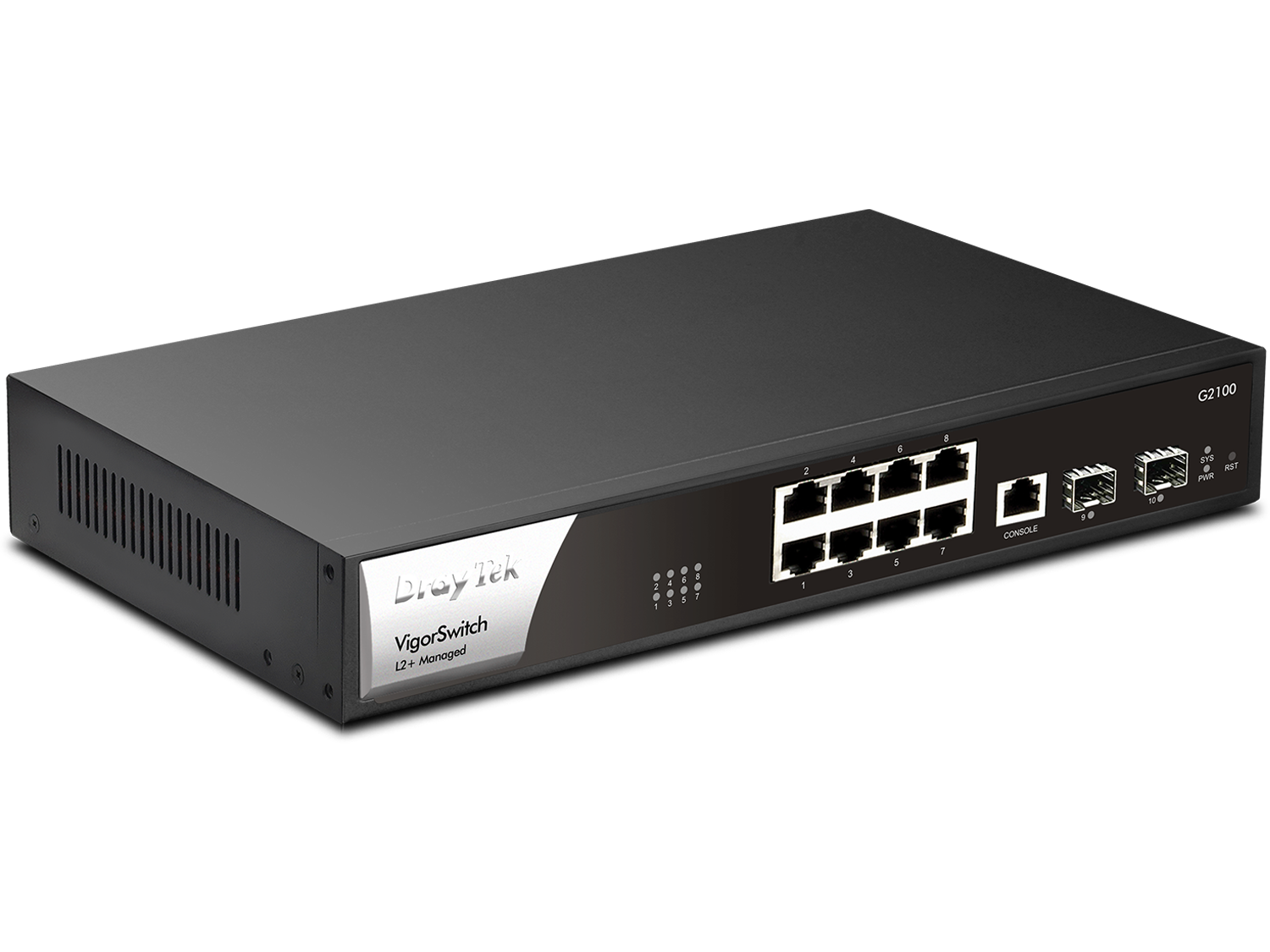

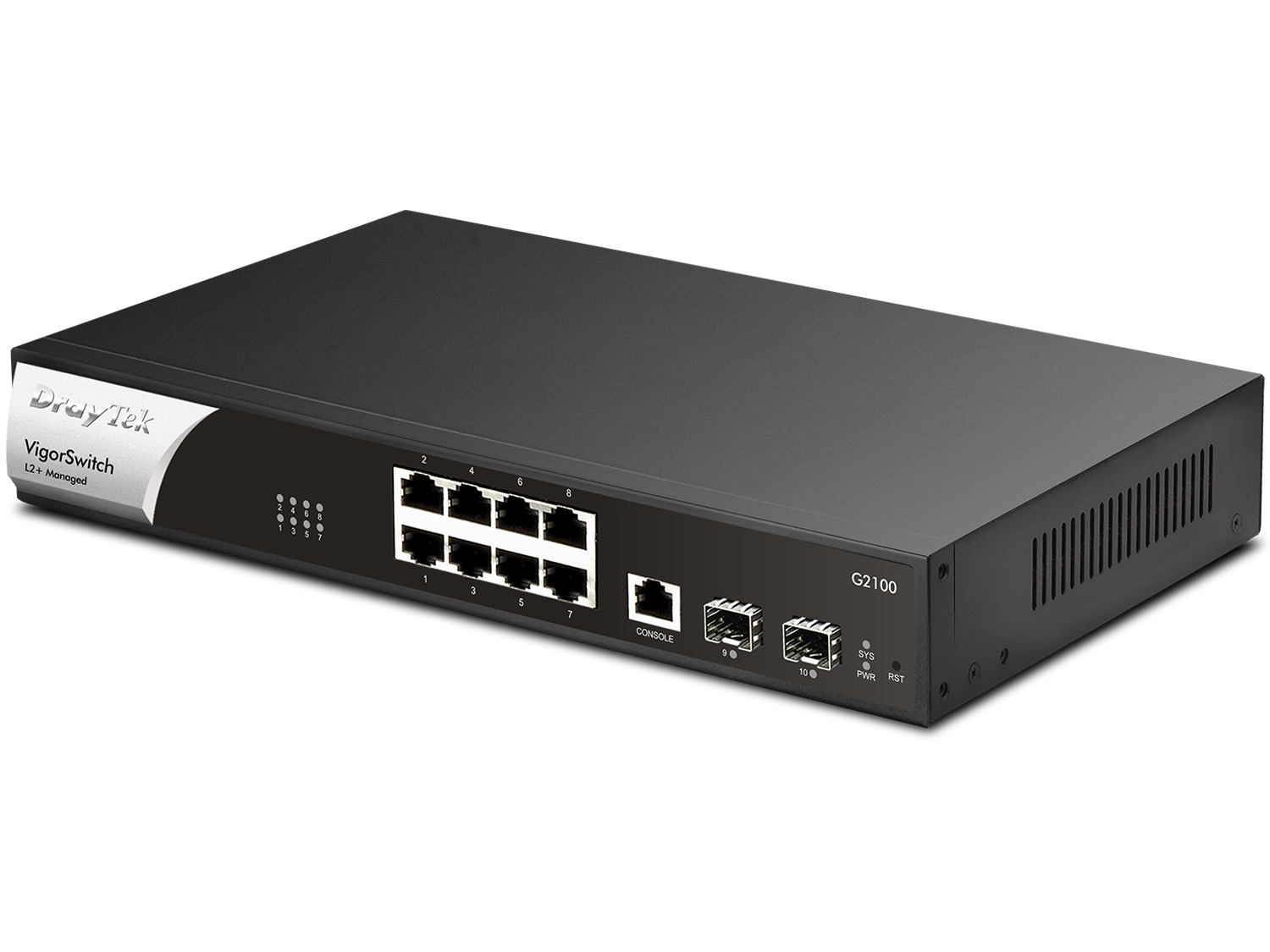

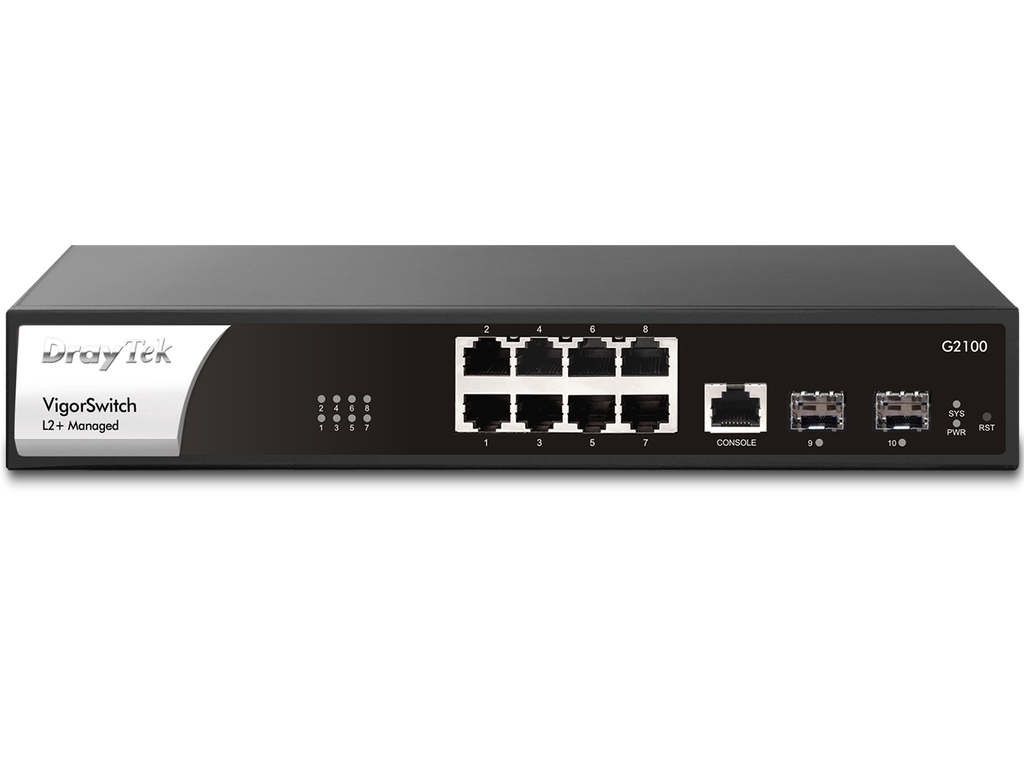

DRAYTEK VigorSwitch G2100

Thương hiệu: DRAYTEK

Bảo hành: 24 Tháng

LAN Port8x 10/100/1000Mbps Ethernet, RJ-45
2x 1000Mbps SFP slot
Console Port1x RJ-45
Button1x Factory Reset Button
Buffer Size4.1 Mbit
Switching Capacity20 Gbps
Forwarding Rate14.88 Mpps (64 bytes)
MAC Address Table8k
Jumbo FrameUp to 9 KB
L3 Routing Table1.5k (prefix route, static route, and ACL shared)
Networking Standards
IP VersionIPv4, IPv6
Ethernet Standards802.3 10Base-T
802.3u 100Base-T
802.3ab 1000Base-T
802.3x Flow Control
802.3 Auto-Negotiation
802.1q Tag-based VLAN
802.1p Class of Service
802.1d STP
802.1w RSTP
802.1s MSTP
802.3ad LACP
802.1ad QinQ
802.1x Port Access Control
802.1AB LLDP
802.3az EEE
Max.Number of VLAN256
VLAN Type802.1q Tag-based
Management VLAN
Voice VLAN
Surveillance VLAN
802.1x Guest VLAN
Port Isolation
ONVIF Surveillance
Surveillance Topology
Real-Time Video Streaming
ONVIF Device MaintenanceDevice Info, Reset Factory Default, Time Settings, Reboot
Number of QoS Queues8
Queue SchedulingSPQ, WRR
CoS (Class of Service)802.1p CoS, DSCP, CoS-DSCP, IP Precedence
Rate Limit & Shaping
Access Control ListMAC, IPv4, IPv6
Storm ControlBroadcast, Unknown Multicast, Unknown Unicast
DoS Defense
802.1x Port Access Control
IP Source Guard
IP Conflict Detection
IP Conflict Prevention
Loop Protection
Dynamic ARP Inspection
DHCP Snooping with Option 82
Link Aggregation
Max. Number of Group4
Max. Number of Member in Each Group8
TypeStatic, LACP
Traffic Load BalancingMAC Address, IP/MAC Address
IGMP Snoopingv2, v3 (BISS)
IGMP Querier
MLD Snoopingv1, v2 (Basic)
Max. Number of Multicast Group256
Group Throttling
Group Filtering
MVR (Multicast VLAN Registration)
Layer 3 Features
Static Route
VLAN Route
DHCP Server (Since firmware v2.6.8)
Authentication ServerRADIUS, TACACS+
Port Authorization
Management Account
RADIUS Attribute AssignmentUser Privilege, VLAN
Multiple Server
Web InterfaceHTTP, HTTPS
Command Line InterfaceTelnet, SSH v2
OpenVPN ClientCertificate-based authentication
User AuthenticationLocal Database, RADIUS, TACACS+
SNMPv1, v2c, v3
Private MIB
RMON Group1, 2, 3, 9
LLDPLLDP-MED, Media Endpoint Discovery Extension
Mail AlertPort Status, Port Speed, System Restart, IP Conflict, Harware Monitor, Device Check, ONVIF Throughput Threshold
2-Level Admin Privilege
Multiple Admin Accounts
Managed by VigorRouter SWM
Managed by VigorConnect
Managed by VigorACS 2
Config File Export/Import
SNTP (Simple Network Time Protocol)
Diagnostics ToolsPort Mirroring, Ping, Cable Test
19-inch Rack Mountable Mouting Kit Included
Power InputAC 100-240V @ 0.7A
Max. Power Consumption18 watts
Dimension (mm)270(W) x 181(D) x 44(H)
Weight1.78 kg (3 lb)
Operating Temperature0 to 50°C
Storage Temperature-20 to 70°C
Operating Humidity10 to 90% non-condensing
Storage Humidity5 to 90% non-condensing
CertificateCE FCC
