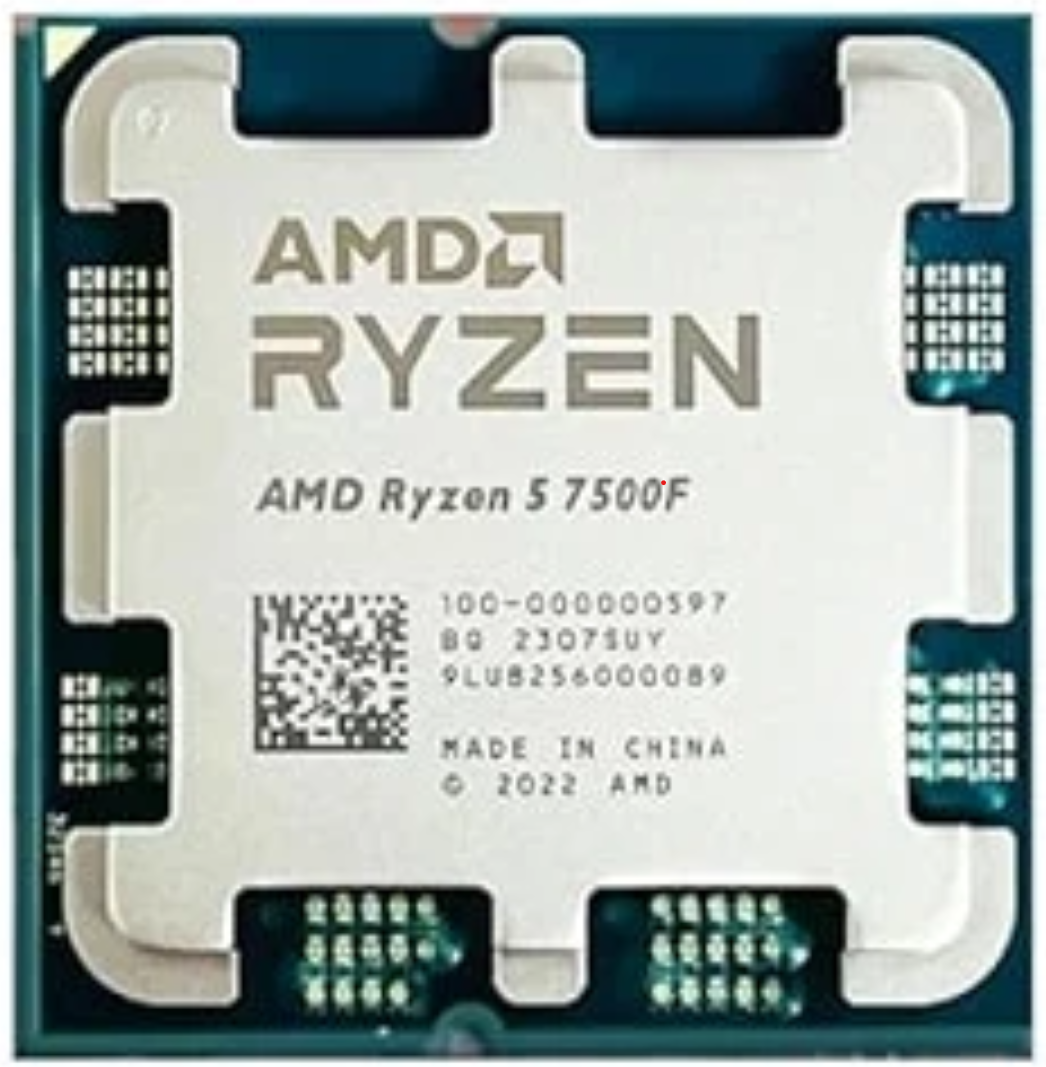

0902.868.935Name | AMD Ryzen™ 5 7500F |
Family | Ryzen |
Series | Ryzen 7000 Series |
Form Factor | Desktops , Boxed Processor |
Market Segment | Enthusiast Desktop |
AMD PRO Technologies | No |
Consumer Use | Yes |
Regional Availability | Global |
Former Codename | “Raphael AM5” |
Architecture | “Zen 4” |
# of CPU Cores | 6 |
Multithreading (SMT) | Yes |
# of Threads | 12 |
Max. Boost Clock | Up to 5Ghz |
Base Clock | 3.7Ghz |
L1 Cache | 384KB |
L2 Cache | 6MB |
L3 Cache | 32MB |
Default TDP | 65W |
Processor Technology for CPU Cores | TSMC 5nm FinFET |
Processor Technology for I/O Die | TSMC 6nm FinFET |
CPU Compute Die (CCD) Size | 71mm² |
I/O Die (IOD) Size | 122mm² |
Package Die Count | 2 |
Unlocked for Overclocking | Yes |
AMD EXPO™ Memory Overclocking Technology | Yes |
Precision Boost Overdrive | Yes |
Curve Optimizer Voltage Offsets | Yes |
AMD Ryzen™ Master Support | Yes |
CPU Socket | AM5 |
Supporting Chipsets | X670E X670 B650E B650 |
CPU Boost Technology | Precision Boost 2 |
Instruction Set | x86-64 |
Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
Thermal Solution (PIB) | AMD Wraith Stealth |
Max. Operating Temperature (Tjmax) | 95°C |
Launch Date | 07/22/2023 |
*OS Support | Windows 11 – 64-Bit Edition Windows 10 – 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
Connectivity | |
USB Type-C® Support | Yes |
Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
Native USB 2.0 (480Mbps) Ports | 1 |
Native SATA Ports | 0 |
Native PCIe® Lanes (Total/Usable) | 28/24 |
Additional Usable PCIe Lanes from Motherboard | AMD X670E 12x Gen4 AMD X670 12x Gen4 AMD B650E 8x Gen4 AMD B650 8x Gen4 |
NVMe Support | Boot, RAID0, RAID1, RAID10 |
Memory Channels | 2 |
Max. Memory | 128GB |
System Memory Subtype | UDIMM |
Max Memory Speed | 1x1R 5200 MT/s 1x2R 5200 MT/s 2x1R 3600 MT/s 2x2R 3600 MT/s |
ECC Support | Yes (Requires mobo support) |
Graphics Capabilities | |
Integrated Graphics | Discrete Graphics Card Required |
Product IDs | |
Product ID MPK | 100-100000597MPK |
Product ID Tray | 100-000000597 |
Key Features | |
Supported Technologies | AMD EXPO™ Technology AMD Ryzen™ Technologies |
