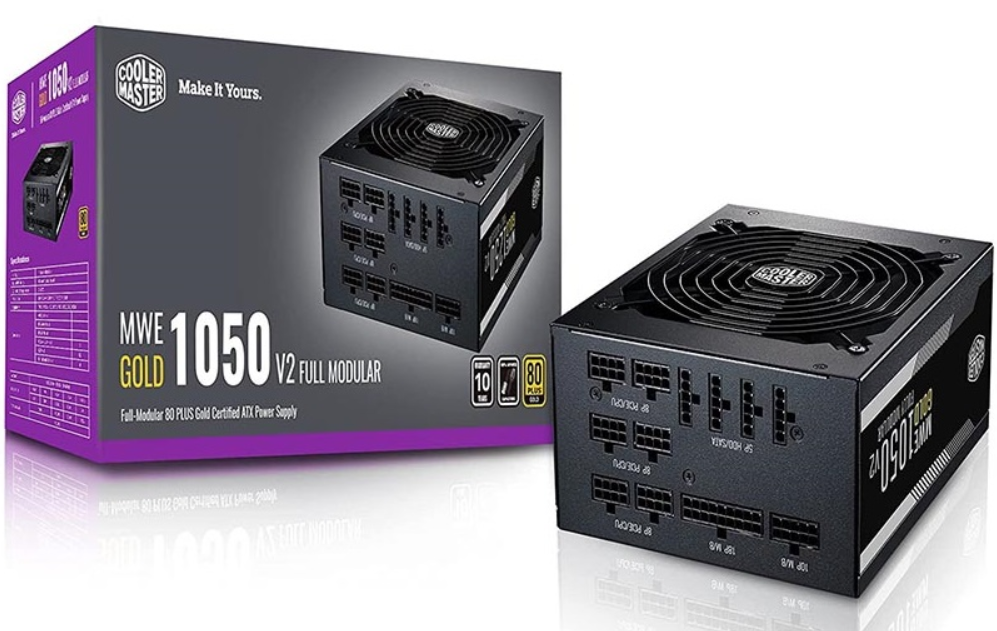

Nguồn Máy Tính COOLER MASTER MWE 1050 Gold V2 ATX 3.1 Fully Modular 1050W (80+ Plus Gold)

Brand

Cooler Master

Model

MPE-A501-AFCAG-3E

Series

MWE Gold Series

ATX Version

ATX Rev. 3.1

PFC

Active PFC

Watts

1050W

Input Voltage

100-240V

Input Current

13-6A

Input Frequency

50-60Hz

Fan Size

140mm

Fan Bearing

FDB

Efficiency

≥90% Typical Load

80 PLUS Rating

80 PLUS Gold

Operating Temperature

0-50°C

Power Good Signal

100 - 150 ms

Hold Up Time

≥ 16ms at 100% Load

MTBF

>100,000 Hours

Protections

OVP / OPP / SCP / OCP / UVP / OTP / Inrush Protection

Regulatory

TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS

Connectors

1 x ATX 24-PIN

1 x EPS 4+4 Pin

1 x EPS 8 Pin

12 x SATA

4 x Peripheral 4 Pin

3 x PCI-e 6+2 Pin

1 x 12V - 2x6

Category

Above 750W

Modular

Fully Modular

80 Plus Efficiency

Gold

Dimensions (L x W x H)

Form Factor: ATX

180 x 150 x 86 mm
