Product Number MAM-D8PN-318PK-R1
Exterior Color Black
CPU Socket LGA1700, LGA1200, LGA1151, LGA1150, LGA1156, LGA1155, AM5, AM4
Dimensions (L x W x H) 162.2 x 150.6 x 165.6 mm / 6.3 x 5.9 x 6.5 inch

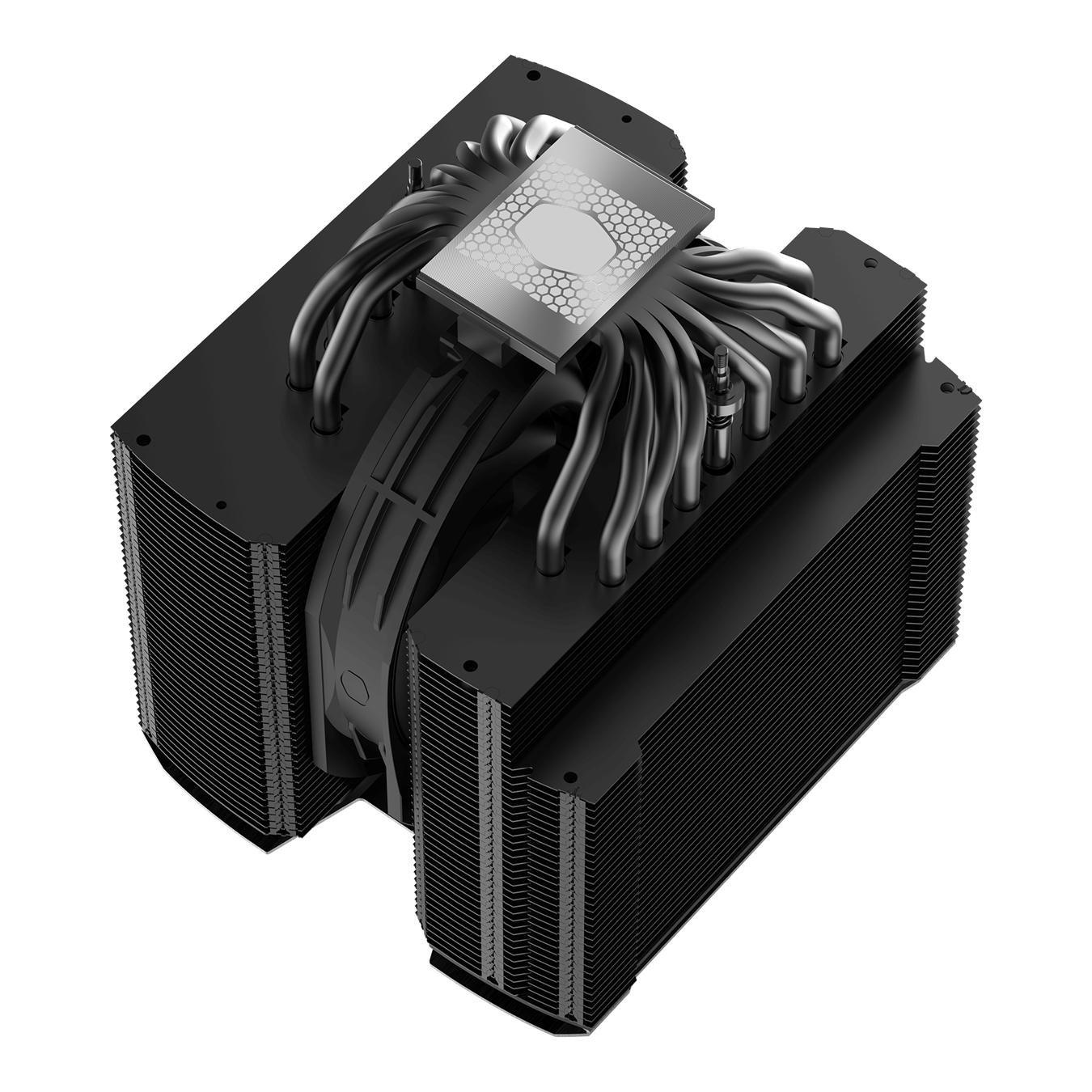

Heat Sink Material 8 Heat Pipes, Aluminum Fins
Fan Dimensions (L x W x H) 135mm Fan: 135 x 135 x 26 mm, 120mm Fan: 120 x 120 x 25 mm
Fan Profiles Non-LED
Fan Quantity 135mm Fan: 1 PC, 120mm Fan: 1 PC
Fan Speed 135mm Fan: 0-1550 RPM ± 15%, 120mm Fan: 0-1950 RPM ± 15%
Fan Airflow 135mm Fan: 63.6 CFM (Max), 120mm Fan: 63.1 CFM (Max)
Fan Pressure 135mm Fan: 1.92 mmH₂O, 120mm Fan: 2.69 mmH₂O
Fan MTTF >200,000 Hours
Fan Noise Level 135mm Fan: 24.6 dBA (Max), 120mm Fan: 22.6 dBA (Max)
Fan Bearing Type Loop Dynamic Bearing
Fan Power Connector 4-Pin (PWM)
Fan Rated Voltage 12 VDC
Fan Rated Current 135mm Fan: 0.1 A, 120mm Fan: 0.12 A, 0.25A
Fan Power Consumption 135mm Fan: 1.2-2.4W, 120mm Fan: 1.44-3.0W
Warranty 5 years
Series MasterAir
Cooler Type Air Cooler
Heatpipes 8
