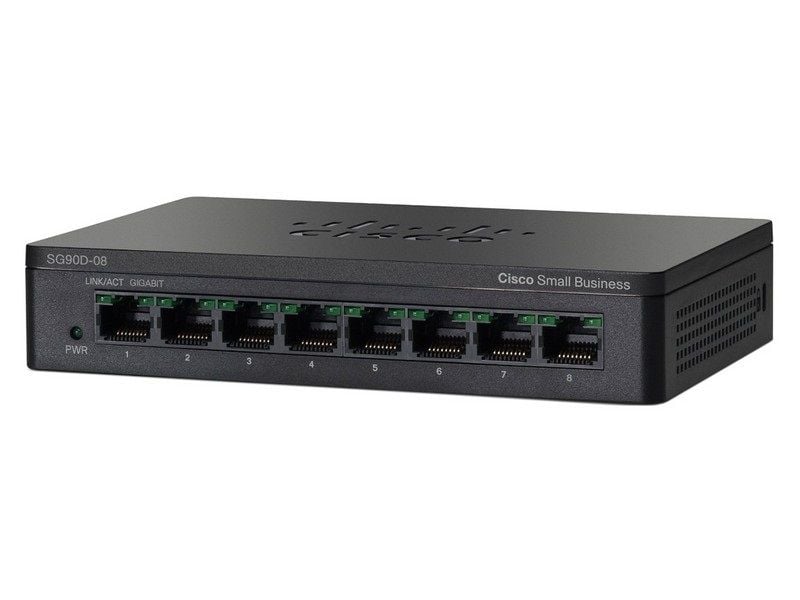

CISCO SG95D-08 (8 Ports)

Thương hiệu: CISCO

Bảo hành: 12 Tháng

Năm Sản Xuất : 2023
Hướng Dẫn Sử Dụng : Lắp đặt với linh kiện tương thích, đúng quy trình
Cách Bảo Quản : Sử dụng trong môi trường thoáng mát , tránh vào nước và ẩm mốc

1,290,000₫

Số lượng:

Thông tin sản phẩm

Specifications	Description
Standards	IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet
Cabling type	Category 5e or better
LED indicators	System/PWR, link/activity, 100M, cable diagnostics, loop detection, gigabit, mini-GBIC* *if present
Physical Interfaces
Ports	10/100/1000 Ethernet, power port for AC adapter or power cord
Power supply	DC 12V, 1.0A
Lock slot	Slot for Kensington lock
Physical Specifications
Physical dimensions (W x D x H)	160x30x103.5 mm
Weight	0.94 lb. (0.43 kg)
Ports	8 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports All units: automatic medium dependent interface (MDI) and MDI crossover (MDI-X); auto-negotiated port for connecting 10-, 100-, 1000-Mbps devices
Performance
Switching capacity	16 Gbps
Forwarding capacity	11.9 mpps
Capabilities
Head-of-line (HOL) blocking	HOL blocking prevention
Jumbo frame	9216 bytes
Quality of service (QoS)	802.1p priority based, hardware queues, priority queuing and weighted round-robin (WRR)
Loop detection	Helps discover loops in the network to avoid broadcast storms
Cable diagnostics	Quickly identify and troubleshoot network cable faults and/or shorts
Mounting and Physical Security
Mounting options	Desktop or rack mount
Physical security lock	Kensington lock slot
Environmental
Compliance/certifications	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B* *select models
Operating temperature	32° to 104°F (0° to 40°C)
Storage temperature	-4° to 158°F (-20° to 70°C)
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	5% to 90%, relative, noncondensing
Package Contents	Cisco 95 Series switch Power cord/power adapter Mounting hardware
Minimum Requirements	- Devices supporting 802.3 Ethernet, 802.u Faster Ethernet, or 802.3ab Gigabit Ethernet - Cat5 or better Ethernet cable - Network interface card for each computer
