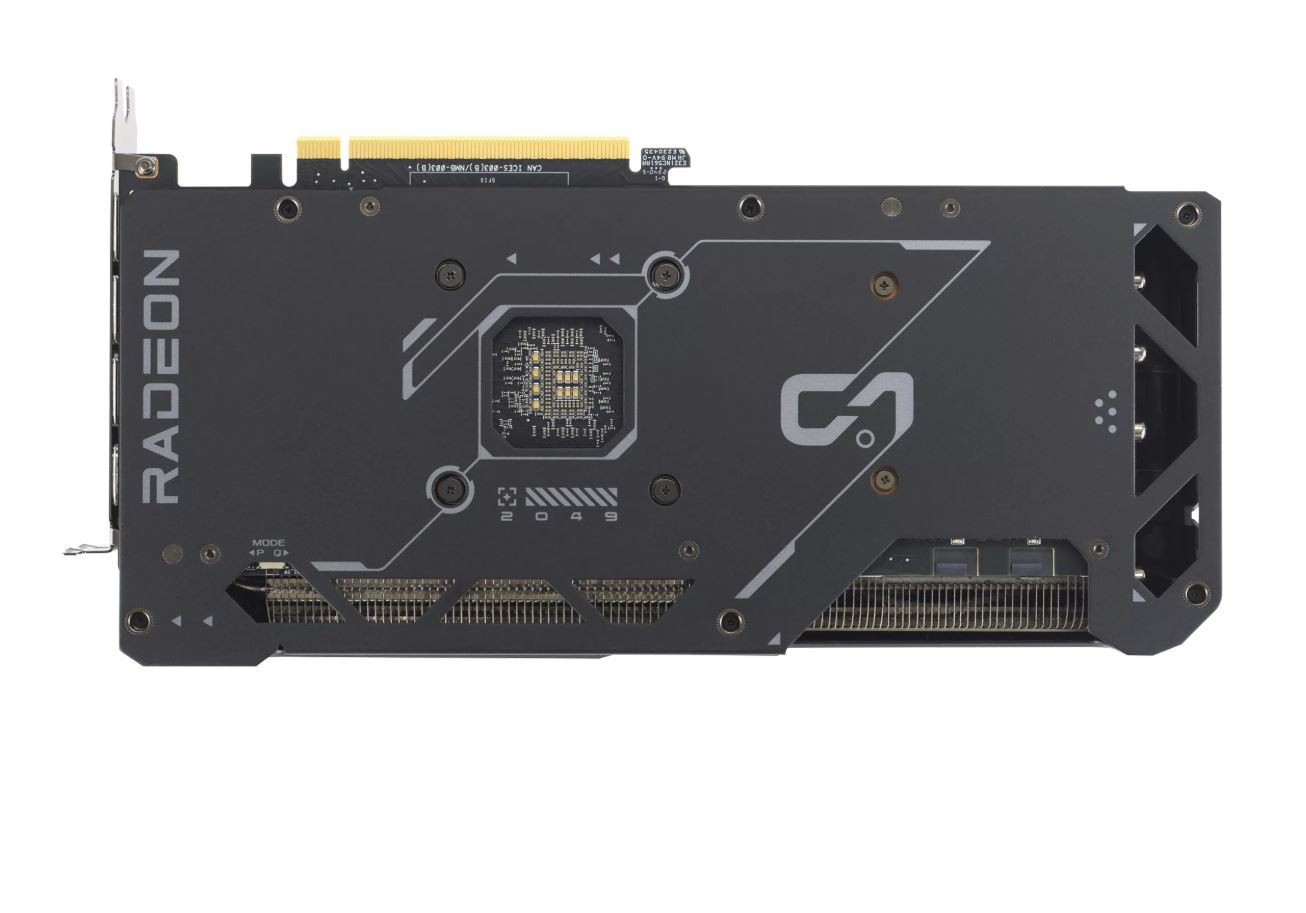

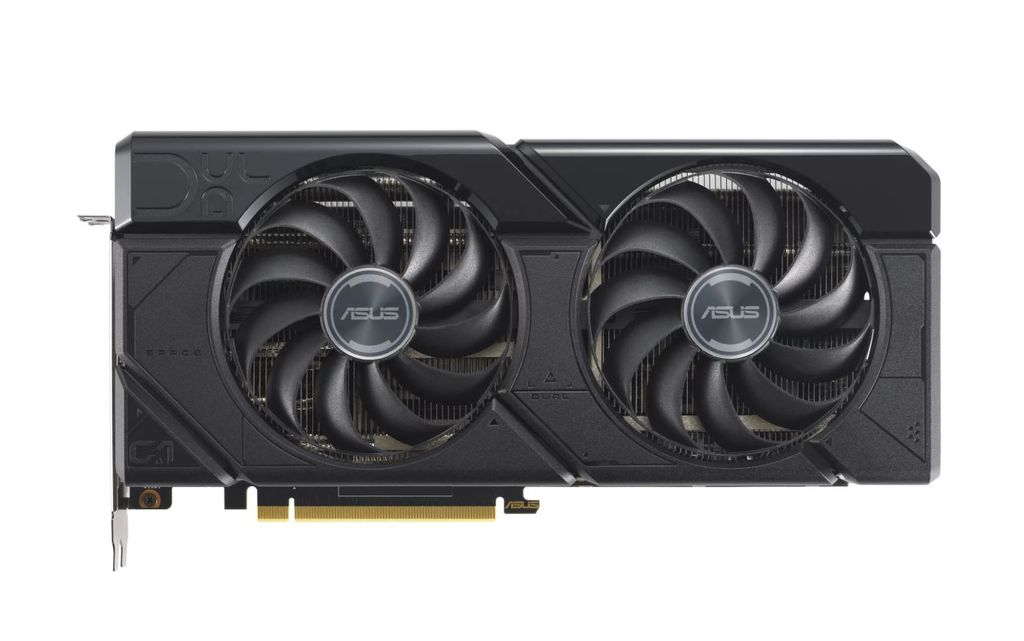

ASUS Dual Radeon RX 7800 XT OC Edition 16GB GDDR6 DUAL-RX7800XT-O16G

Model

DUAL-RX7800XT-O16G

Graphic Engine

AMD Radeon™ RX 7800 XT

Bus Standard

PCI Express 4.0

OpenGL

OpenGL®4.6

Video Memory

16GB GDDR6

Engine Clock

OC mode : up to 2520 MHz (Boost Clock)/up to 2213 MHz (Game Clock)
Default mode : up to 2475 MHz (Boost Clock)/up to 2169 MHz (Game Clock)

Stream Processors

3840

Memory Speed

19.5 Gbps

Memory Interface

256-bit

Resolution

Digital Max Resolution 7680 x 4320

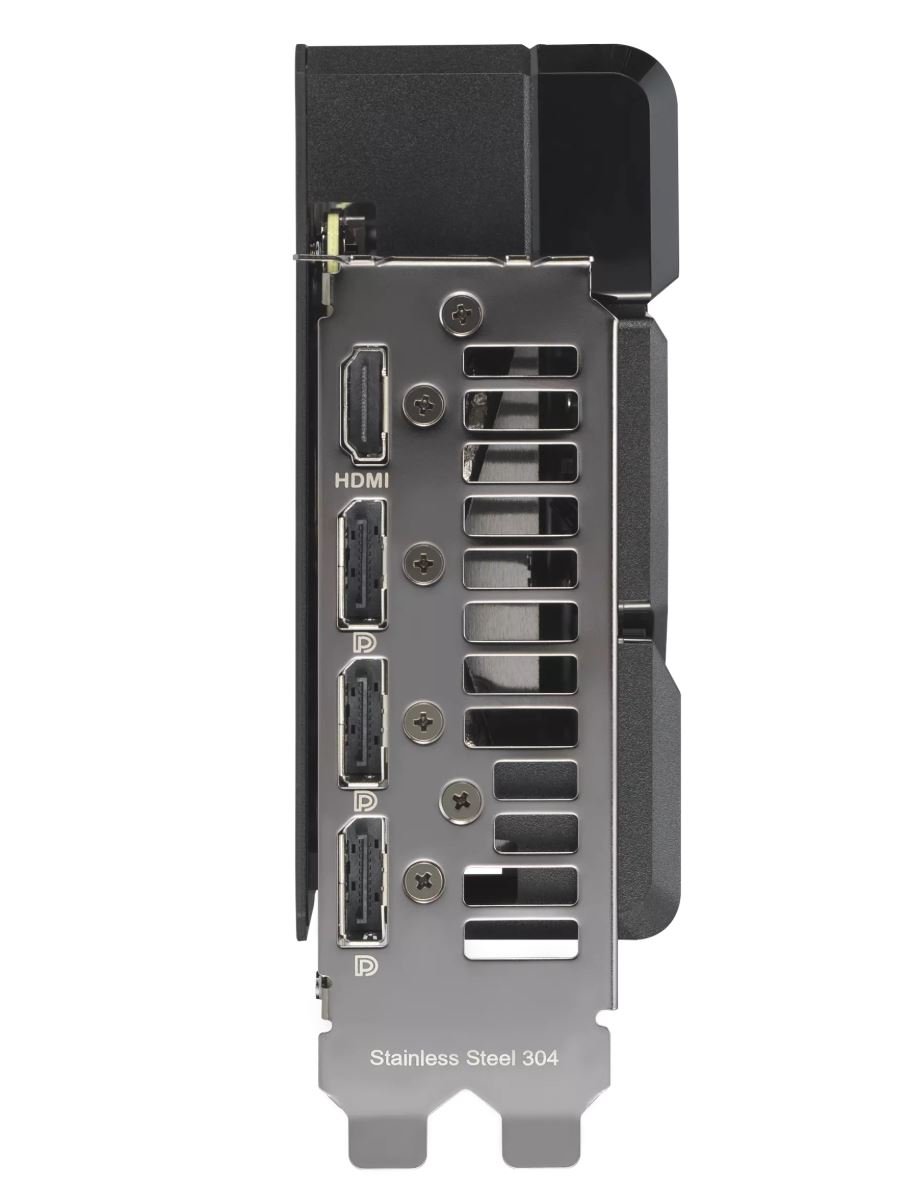

Interface

Yes x 1 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 2.1)
HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Accessories

1 x Thank you card
1 x Speedsetup Manual

Software

ASUS GPU Tweak III & Drivers: please download all software from the support site.

Dimensions

279.9 x 133.9 x 49.3 mm
11.02 x 5.27 x 1.94 inch

Recommended PSU

750W

Power Connectors

2 x 8-pin

Slot

2.47 slot
