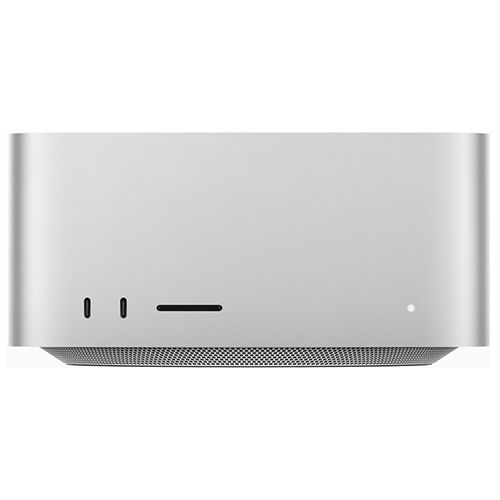

APPLE Mac Studio M1 Ultra (20-CPU 64-GPU | RAM 128GB | SSD 4TB | Chính Hãng)

Chip

Apple M1 Max chip

• 10-core CPU with 8 performance cores and 2 efficiency cores
• 24-core GPU
• 16-core Neural Engine
• 400GB/s memory bandwidth

Media engine

• Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
• Video decode engine
• Two video encode engines
• Two ProRes encode and decode engines

Configurable to:

M1 Max with 10-core CPU, 32-core GPU, and 16-core Neural Engine

Apple M1 Ultra chip

• 20-core CPU with 16 performance cores and 4 efficiency cores
• 48-core GPU
• 32-core Neural Engine
• 800GB/s memory bandwidth

Media engine

• Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
• Two video decode engines
• Four video encode engines
• Four ProRes encode and decode engines

Configurable to:

M1 Ultra with 20-core CPU, 64-core GPU, and 32-core Neural Engine

Memory

32GB

32GB unified memory

Configurable to:

64GB

64GB

64GB unified memory

Configurable to:

128GB

Storage¹

512GB

512GB SSD

Configurable to:

1TB, 2TB, 4TB, or 8TB

1TB

1TB SSD

Configurable to:

2TB, 4TB, or 8TB

Video Support

Simultaneously supports up to five displays:

• Support for up to four Pro Display XDRs (6K resolution at 60Hz and over a billion colors) over USB-C and one 4K display (4K resolution at 60Hz and over a billion colors) over HDMI

Thunderbolt 4 digital video output supports

• Native DisplayPort output over USB‑C
• Thunderbolt 2, DVI, and VGA output supported using adapters (sold separately)

HDMI display video output

• Support for one display with up to 4K resolution at 60Hz
• DVI output using HDMI to DVI Adapter (sold separately)

Audio

• Built-in speaker
• 3.5 mm headphone jack with advanced support for high-impedance headphones
• HDMI port supports multichannel audio output

Connections and Expansion

Thunderbolt 4

10Gb Ethernet

USB-A

HDMI

3.5 mm headphone jack

Four Thunderbolt 4 ports with support for:

• Thunderbolt 4 (up to 40Gb/s)
• DisplayPort
• USB 4 (up to 40Gb/s)
• USB 3.1 Gen 2 (up to 10Gb/s)

• Two USB-A ports (up to 5Gb/s)
• HDMI port
• 10Gb Ethernet
• 3.5 mm headphone jack

On front (M1 Max):

• Two USB-C ports (up to 10Gb/s)
• SDXC card slot (UHS-II)

On front (M1 Ultra):

• Two Thunderbolt 4 ports (up to 40Gb/s)
• SDXC card slot (UHS-II)

Communications

Wi-Fi

• 802.11ax Wi-Fi 6 wireless networking
• IEEE 802.11a/b/g/n/ac compatible

Bluetooth

• Bluetooth 5.0 wireless technology

Ethernet

• 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)

Size and Weight

• Height: 3.7 inches (9.5 cm)
• Width: 7.7 inches (19.7 cm)
• Depth: 7.7 inches (19.7 cm)
• Weight (M1 Max): 5.9 pounds (2.7 kg)²
• Weight (M1 Ultra): 7.9 pounds (3.6 kg)²

Width:7.7 inches (19.7 cm)

Depth:7.7 inches (19.7 cm)

Height:3.7 inches (9.5 cm)

Electrical and Operating Requirements

• Line voltage: 100–240V AC
• Frequency: 50Hz to 60Hz, single phase
• Maximum continuous power: 370W
• Operating temperature: 50° to 95° F (10° to 35° C)
• Storage temperature: –40° to 116° F (–40° to 47° C)
• Relative humidity: 5% to 90% noncondensing
• Operating altitude: tested up to 16,400 feet (5000 meters)

Limited Warranty and Service

Your Mac Studio comes with 90 days of complimentary technical support and a one-year limited warranty. Purchase AppleCare+ for Mac to extend your coverage from your AppleCare+ purchase date and add up to two incidents of accidental damage coverage every 12 months, each subject to a service fee of $99 for external enclosure damage, or $299 for other repairable accidental damage, plus applicable tax.

• AppleCare+ for Mac
• Learn more

In the Box

• Mac Studio
• Power cord

Operating System

macOS

• macOS is the most advanced desktop operating system in the world. macOS Monterey introduces powerful new features to help you connect, share, and create like never before.
